Daytime Running Lamps Control Module C1

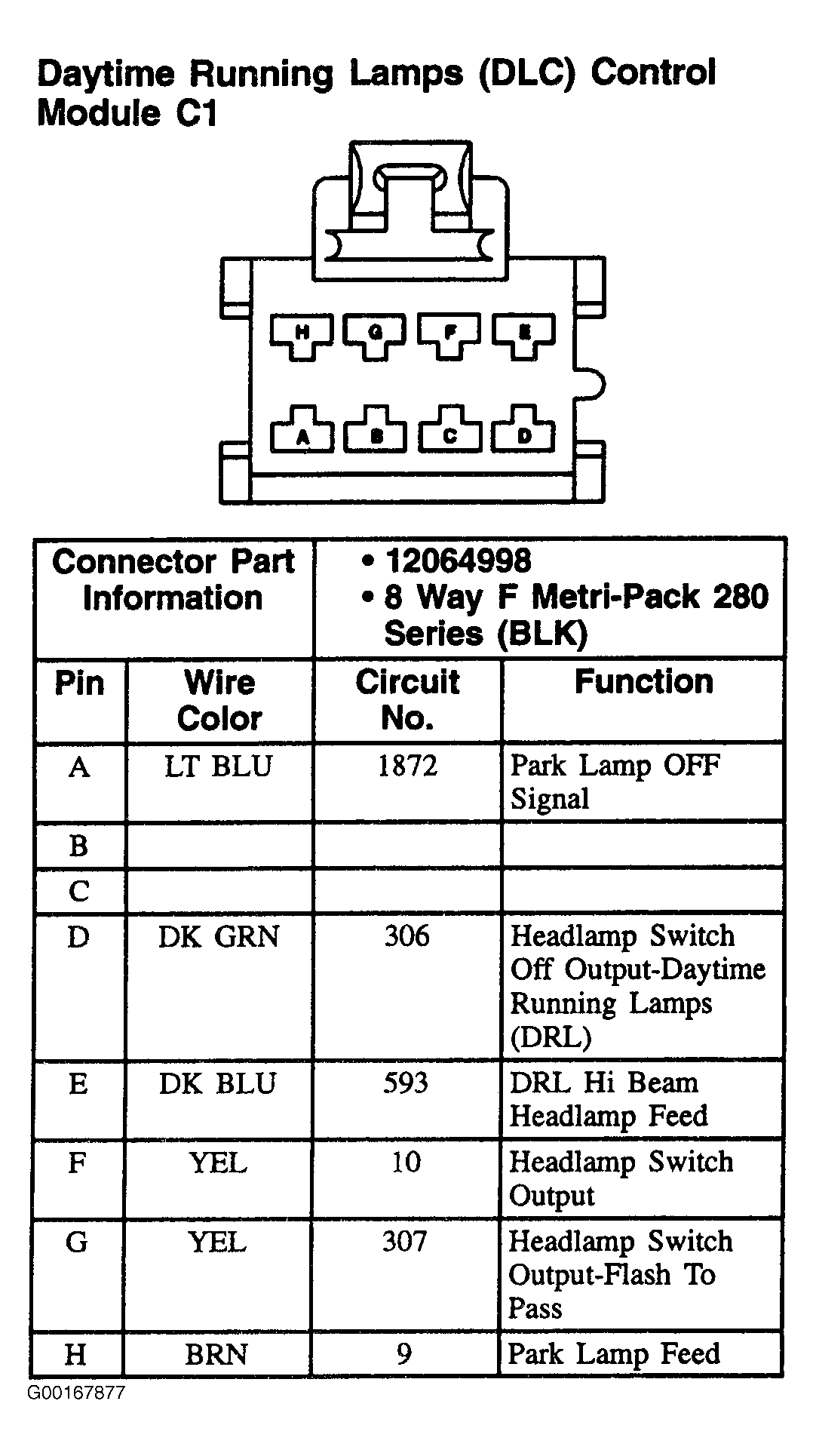

Fig 1: Daytime Running Lamps (DLC) Control Module C1 (Grand Prix) - 8-Pin Connector (Black)
G00167877Courtesy of GENERAL MOTORS CORP.
