Electronic Brake Control Indicator Lamp Driver Module

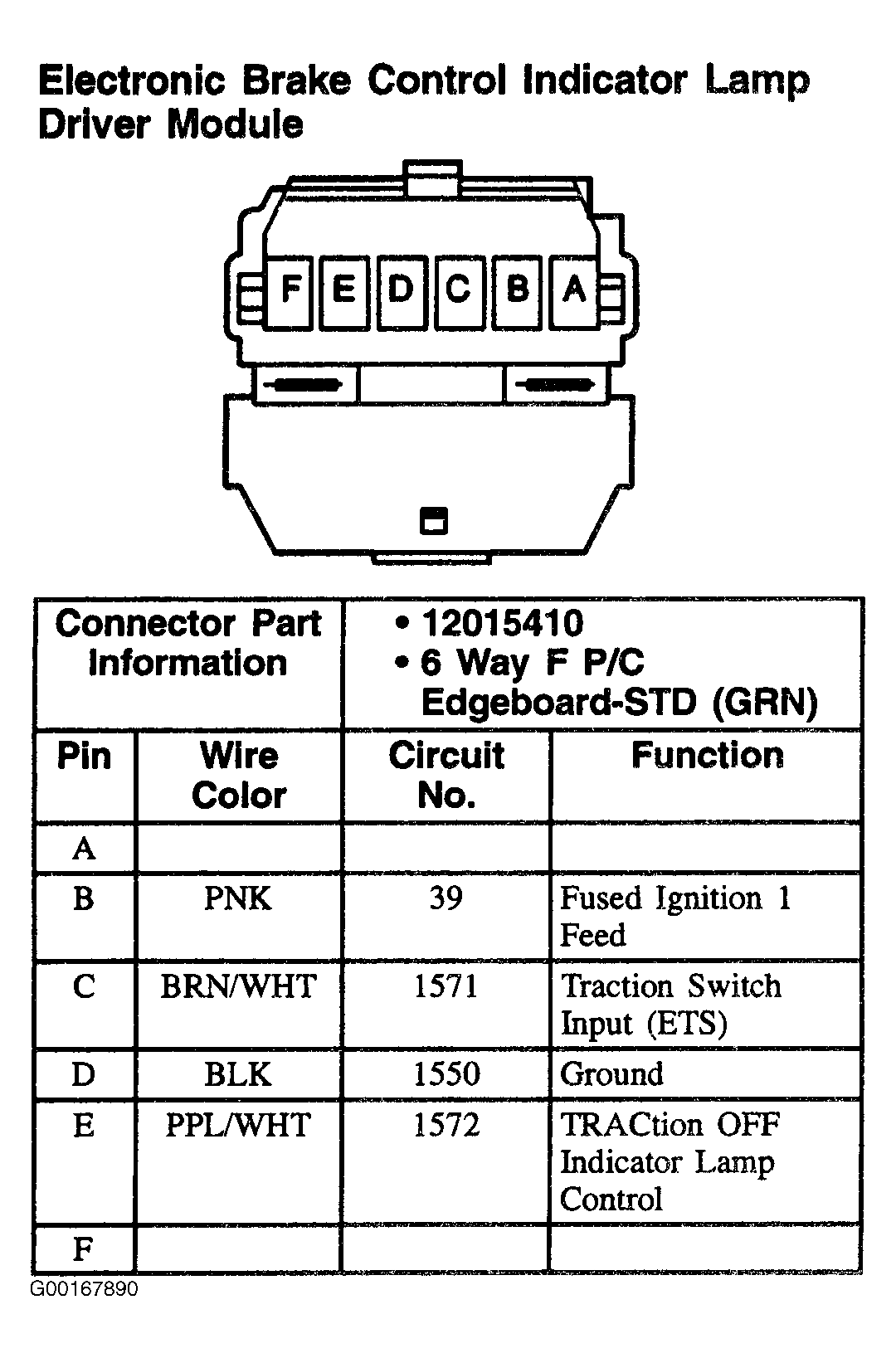

Fig 1: Electronic Brake Control Indicator Lamp Driver Module (Grand Prix) - 6-Pin Connector (Green)
G00167890Courtesy of GENERAL MOTORS CORP.
