Brake Pressure Modulator Valve

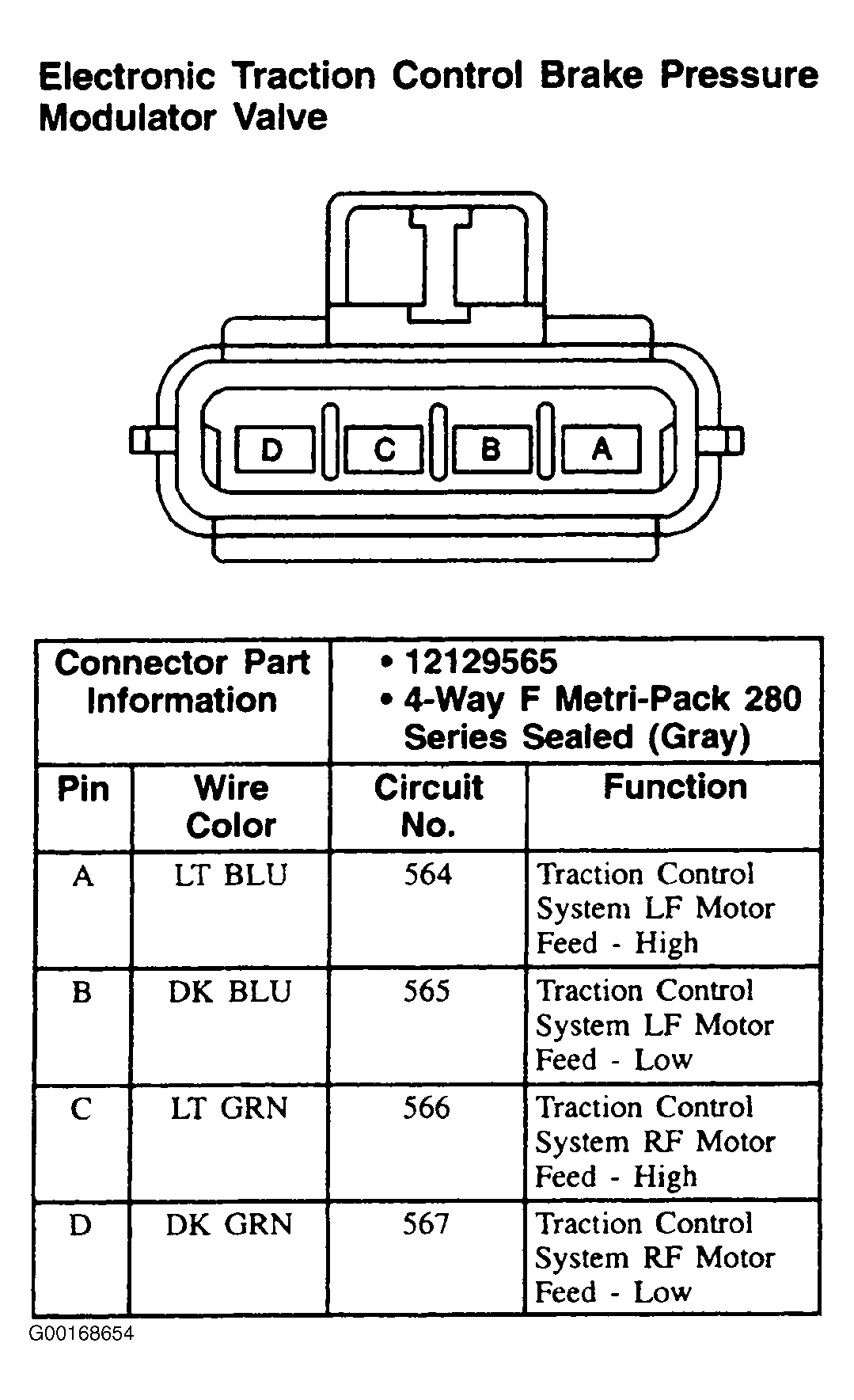

Fig 1: Electronic Traction Control Brake Pressure Modulator Valve (Century & Regal) - 4-Pin Connector (Gray)
G00168654Courtesy of GENERAL MOTORS CORP.
