Grand PRIX

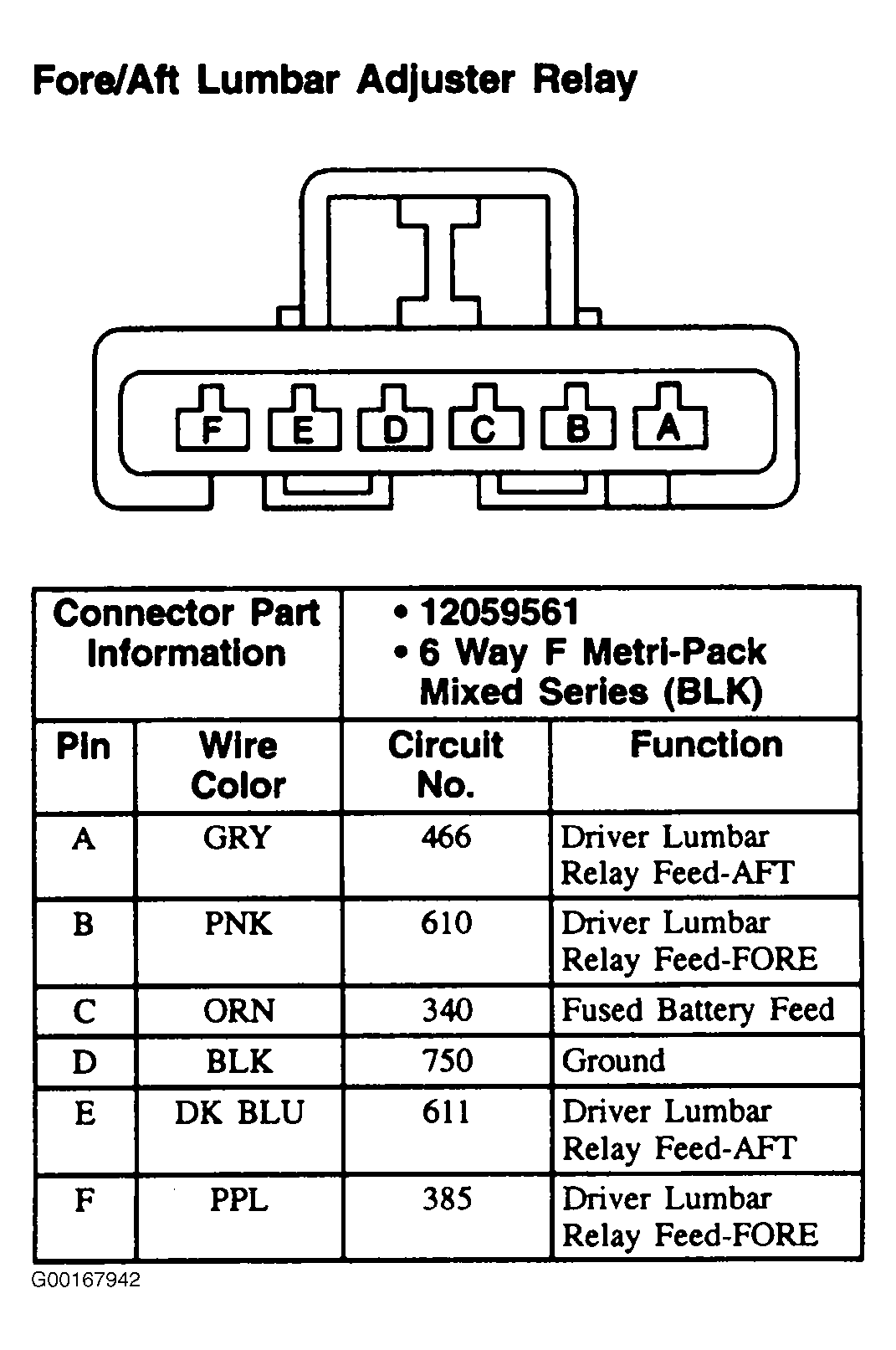

Fig 1: Fore/Aft Lumbar Adjuster Relay (Grand Prix) - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
