Ignition Control (IC) Module C1 (All Others)

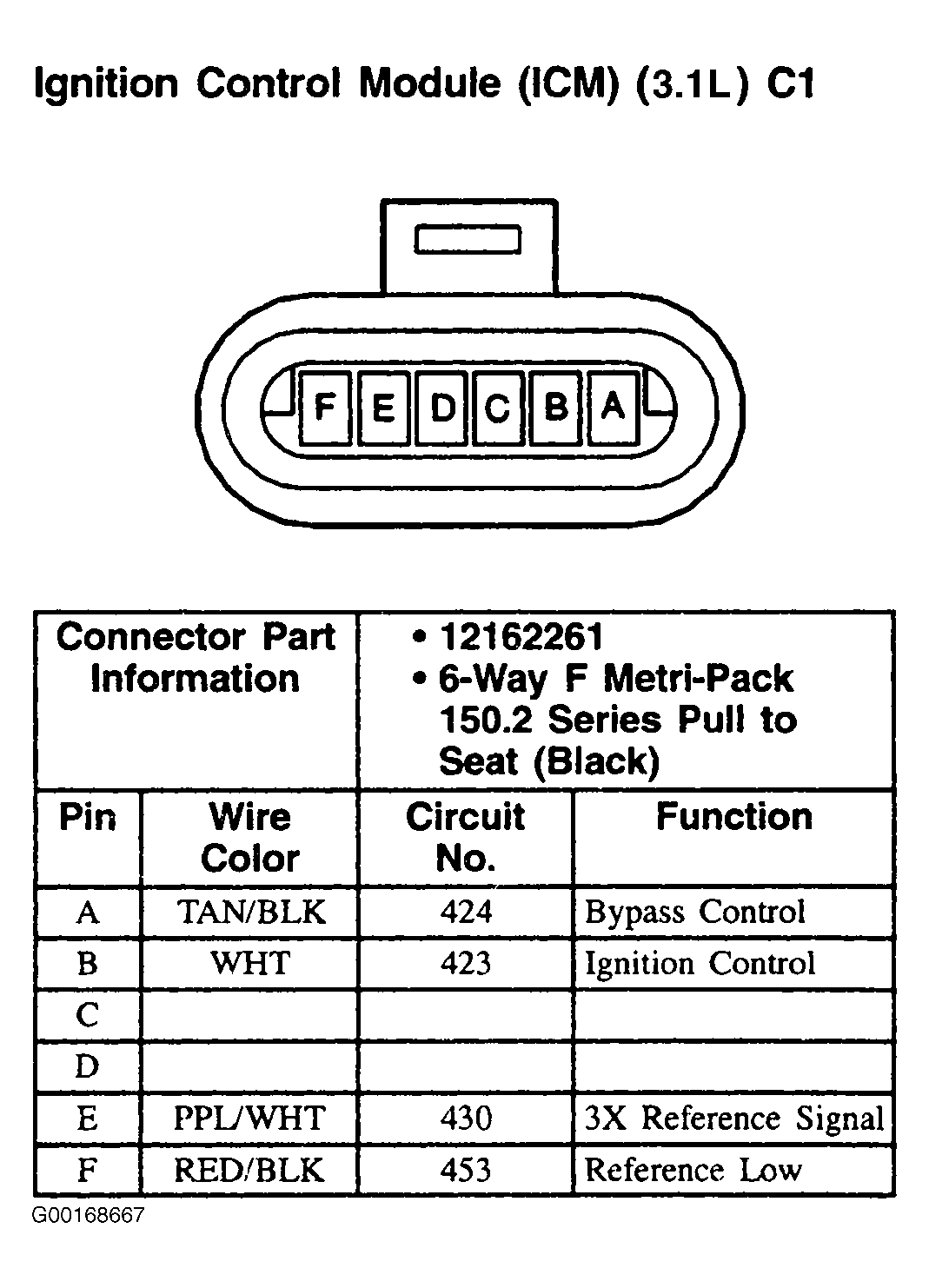

Fig 1: Ignition Control (IC) Module C1 (3.1L) (Century & Regal) - 6-Pin Connector (Black)
G00168667Courtesy of GENERAL MOTORS CORP.

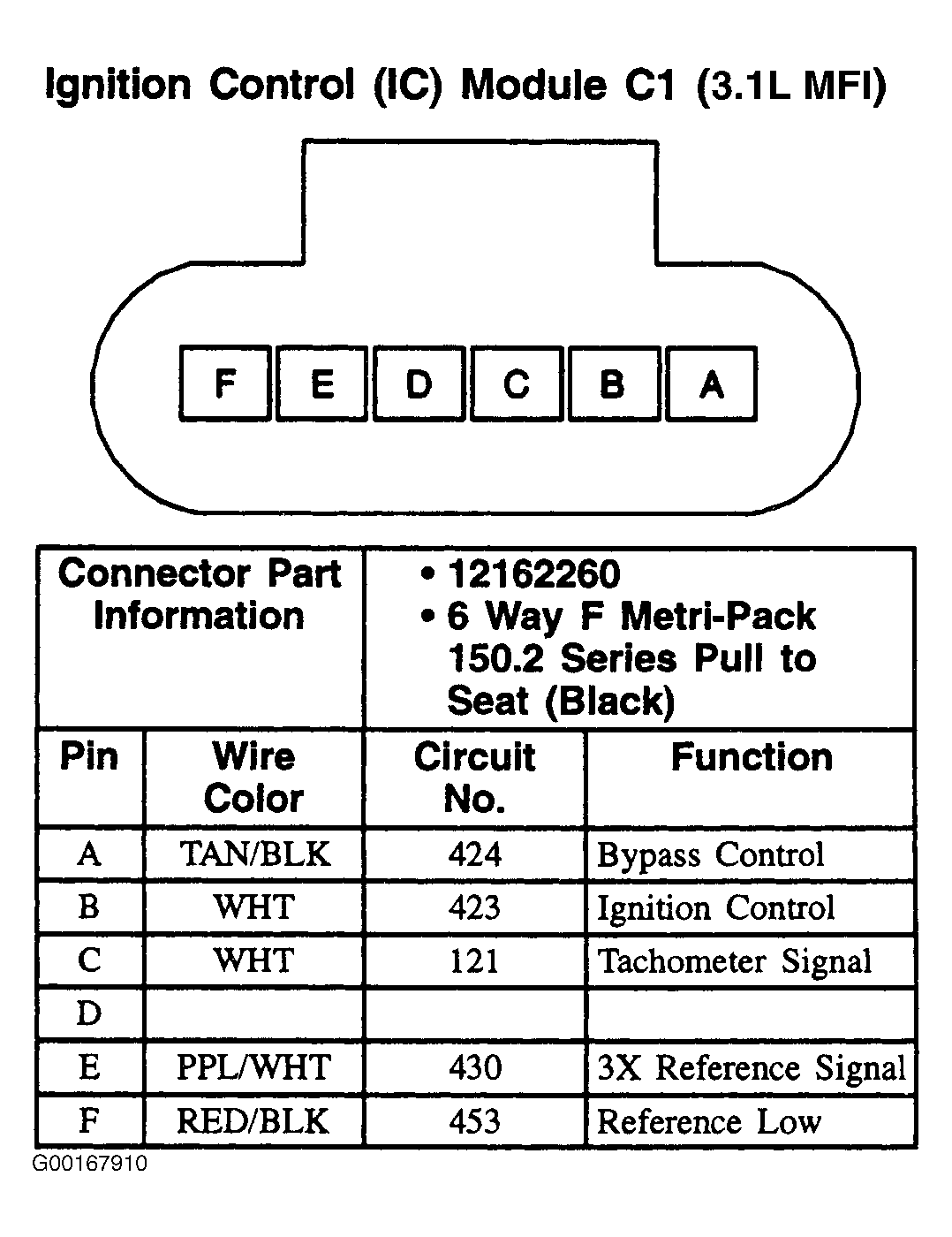

Fig 2: Ignition Control (IC) Module C1 (3.1L) (Grand Prix) - 6-Pin Connector (Black)
G00167910Courtesy of GENERAL MOTORS CORP.

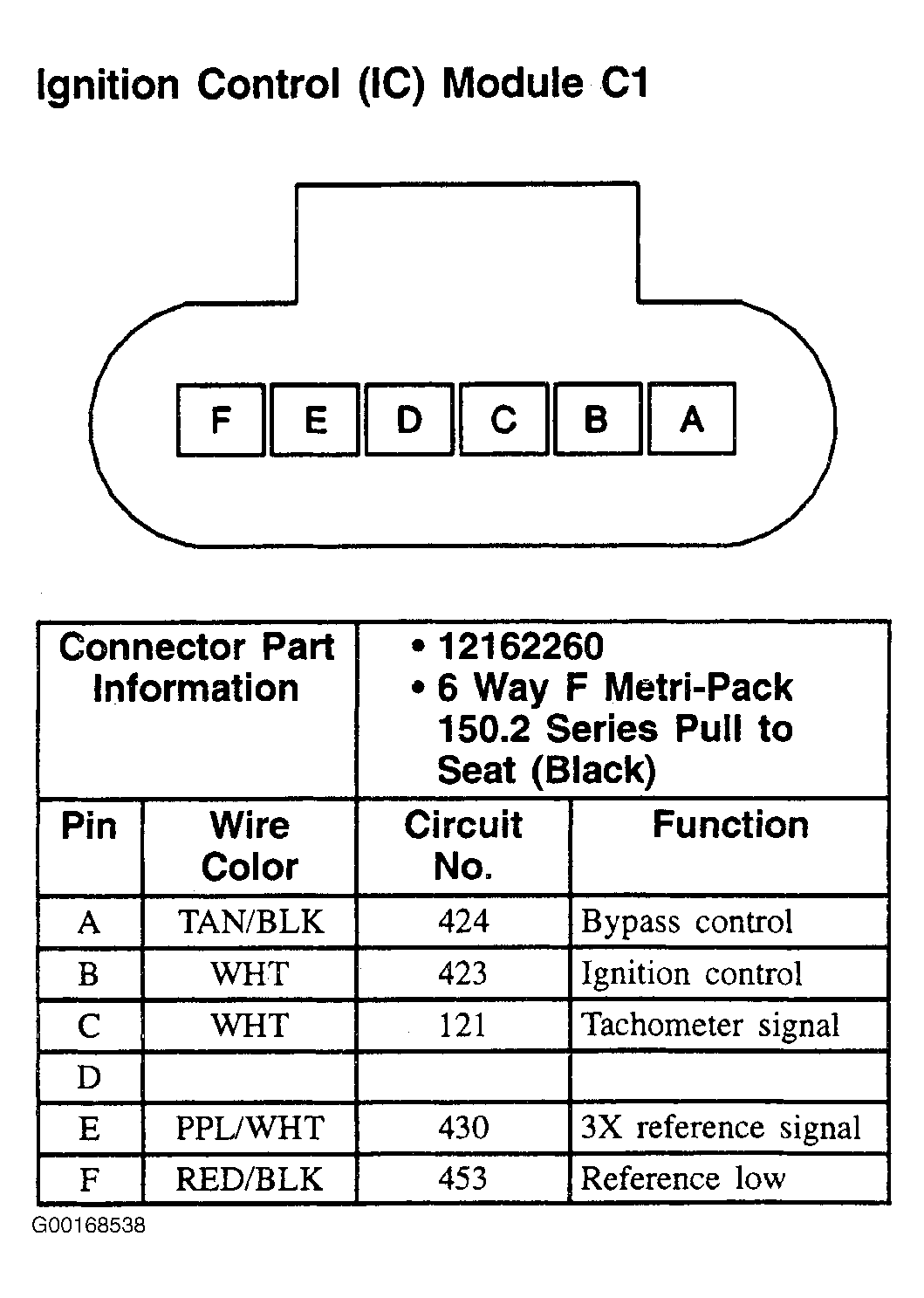

Fig 3: Ignition Control (IC) Module C1 (Cutlass Supreme, Lumina & Monte Carlo) - 6-Pin Connector (Black)
G00168538Courtesy of GENERAL MOTORS CORP.
