Ignition Control (IC) Module C3 (All Others)

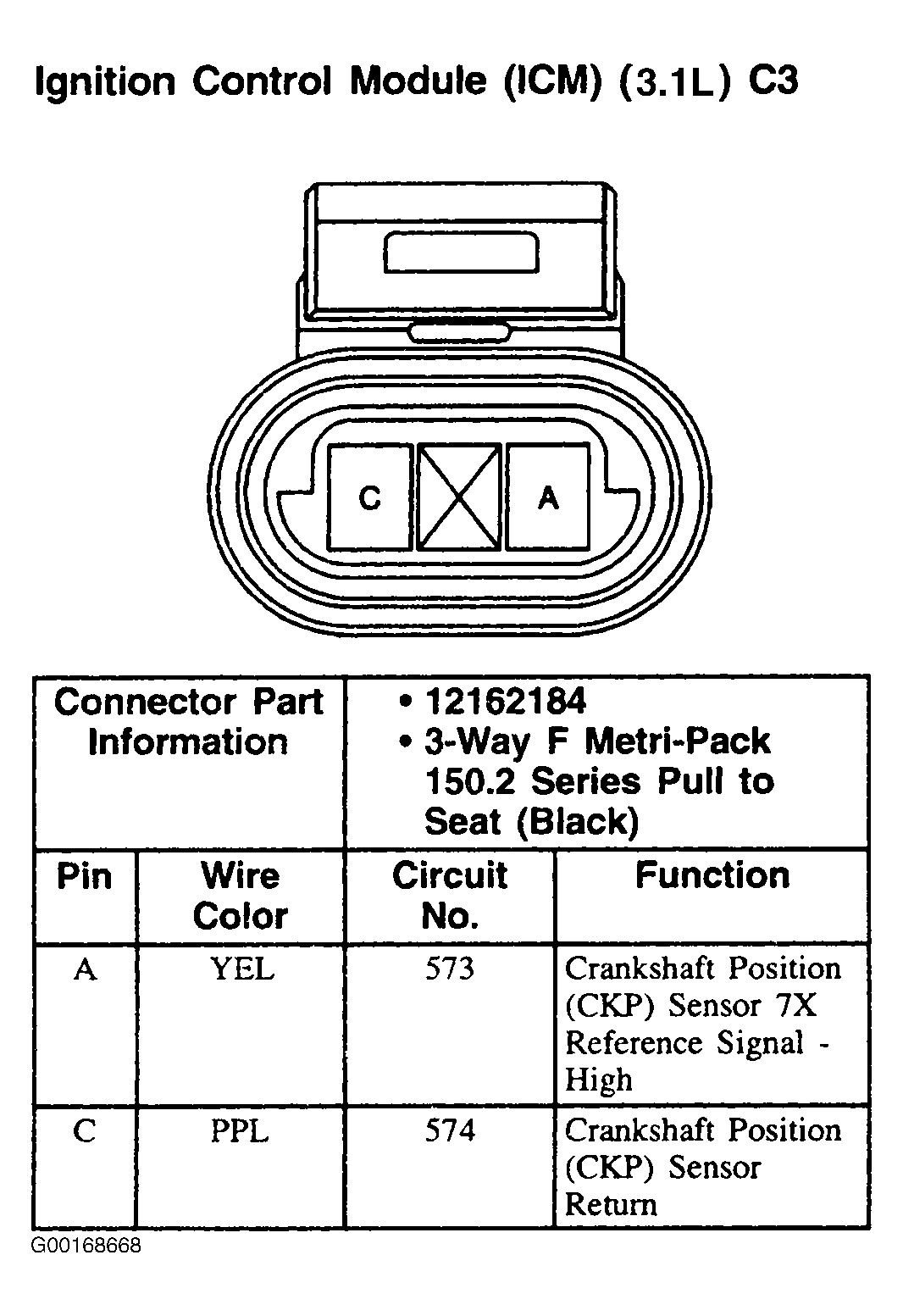

Fig 1: Ignition Control (IC) Module C3 (3.1L) (Century & Regal) - 3-Pin Connector (Black)
G00168668Courtesy of GENERAL MOTORS CORP.

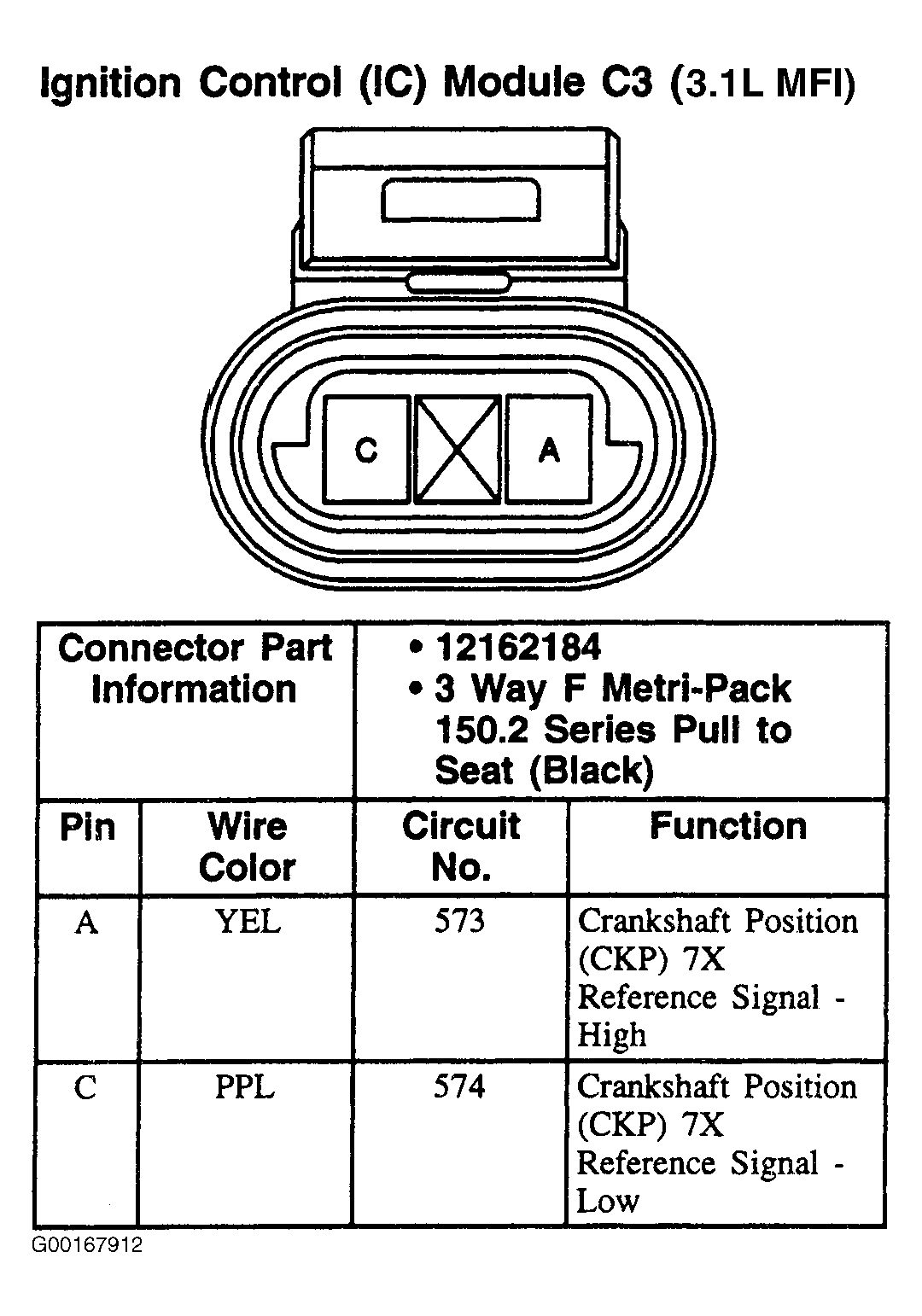

Fig 2: Ignition Control (IC) Module C3 (Cutlass Supreme, Grand Prix (3.1L), Lumina & Monte Carlo) - 3-Pin Connector (Black)
G00167912Courtesy of GENERAL MOTORS CORP.
