Grand PRIX

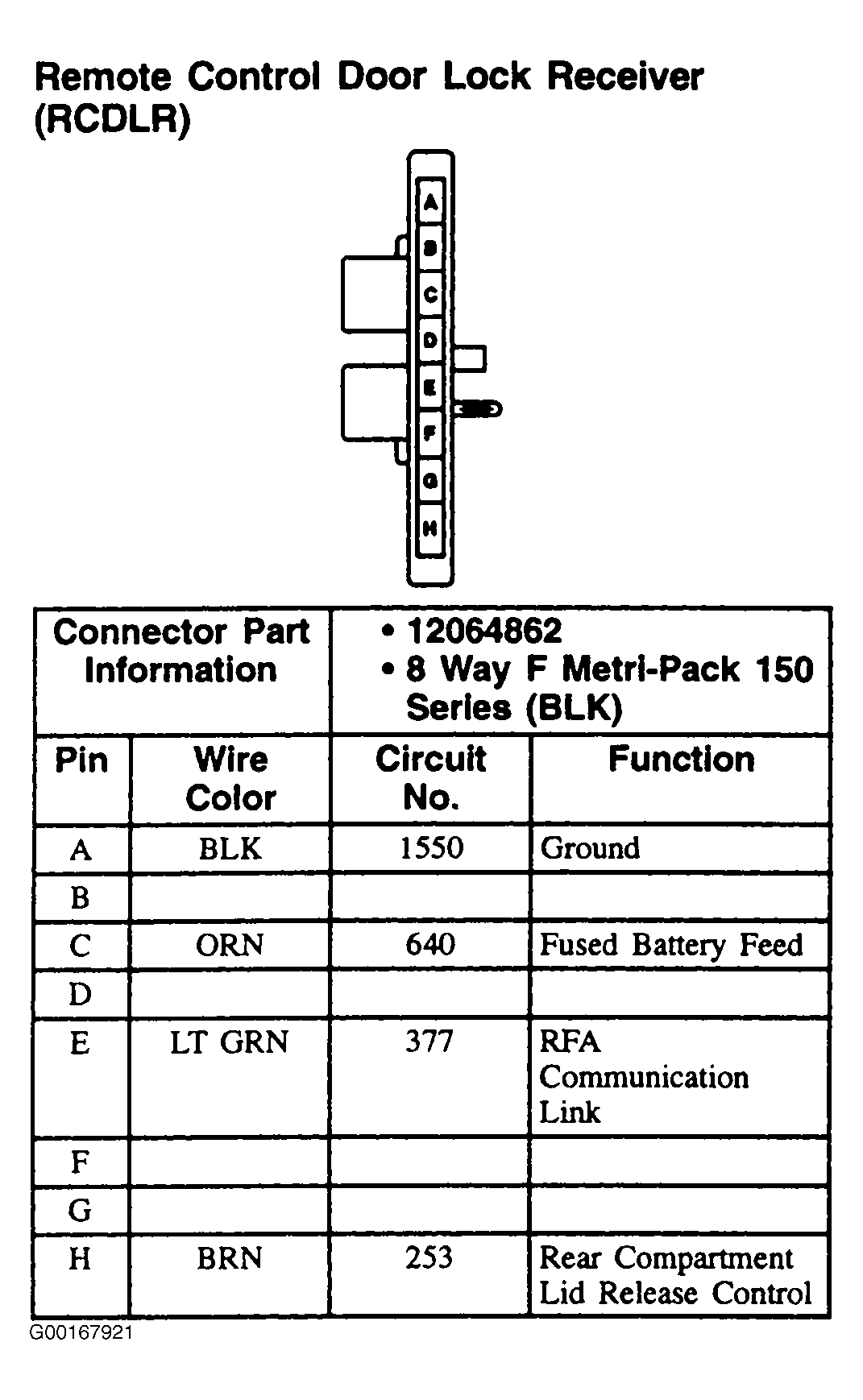

Fig 1: Remote Control Door Lock Receiver (RCDLR) (Grand Prix) - 8-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
