Grand PRIX

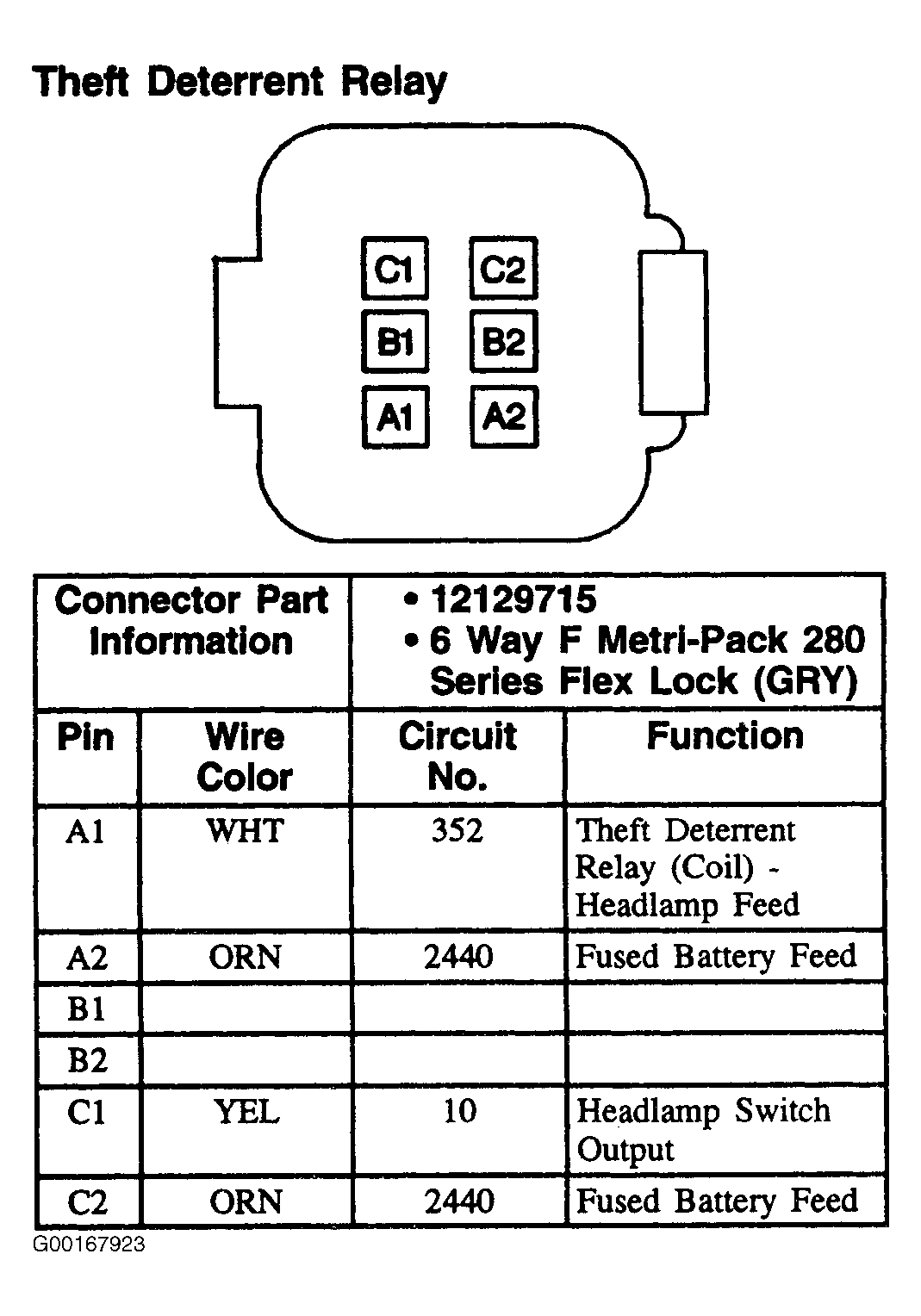

Fig 1: Theft Deterrent Relay (Grand Prix) - 6-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
