Driver Seat Heater Control Module

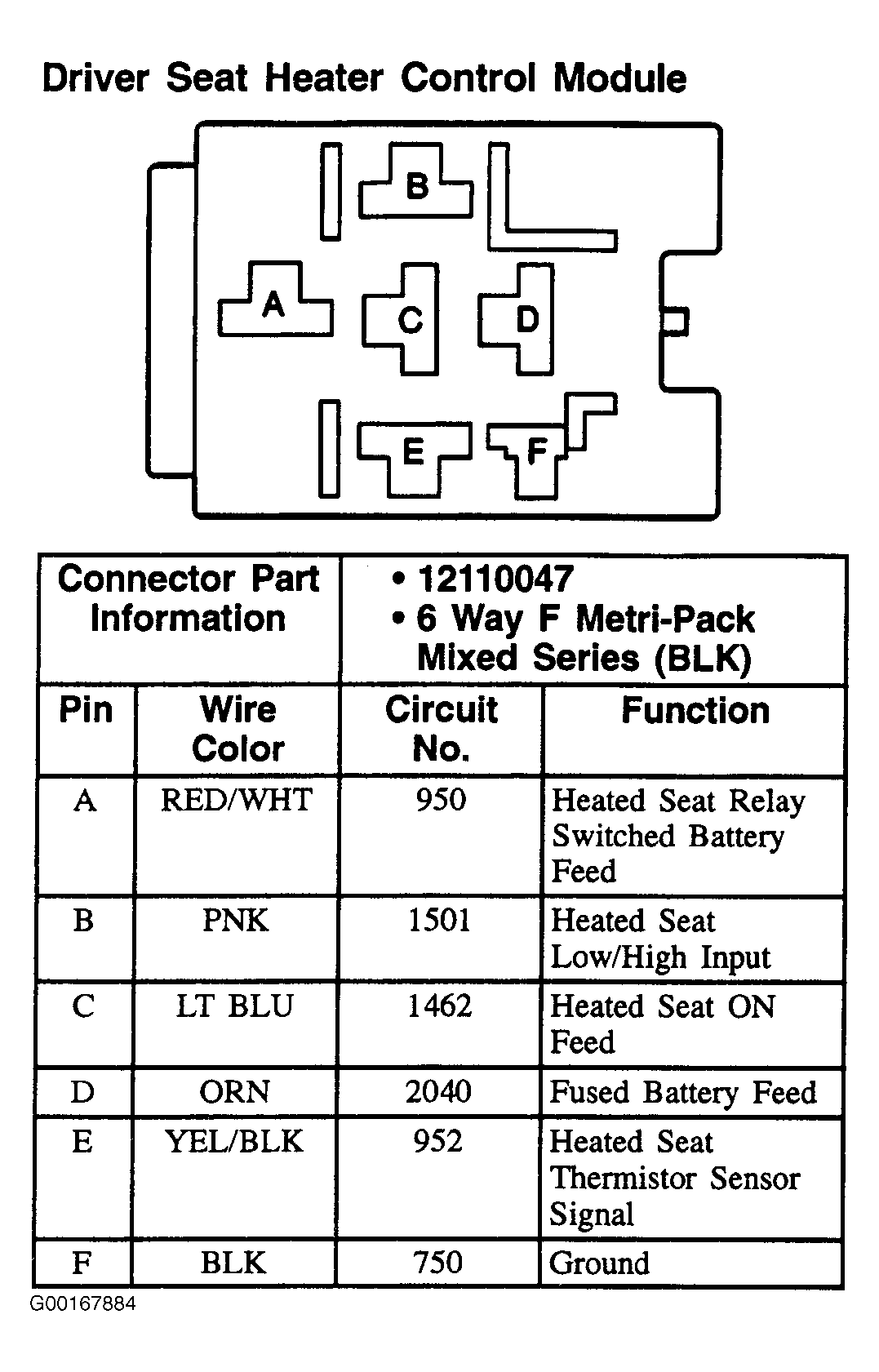

Fig 1: Driver Seat Heater Control Module (Century, Grand Prix & Regal) - 6-Pin Connector (Black)
G00167884Courtesy of GENERAL MOTORS CORP.
