Century & Regal

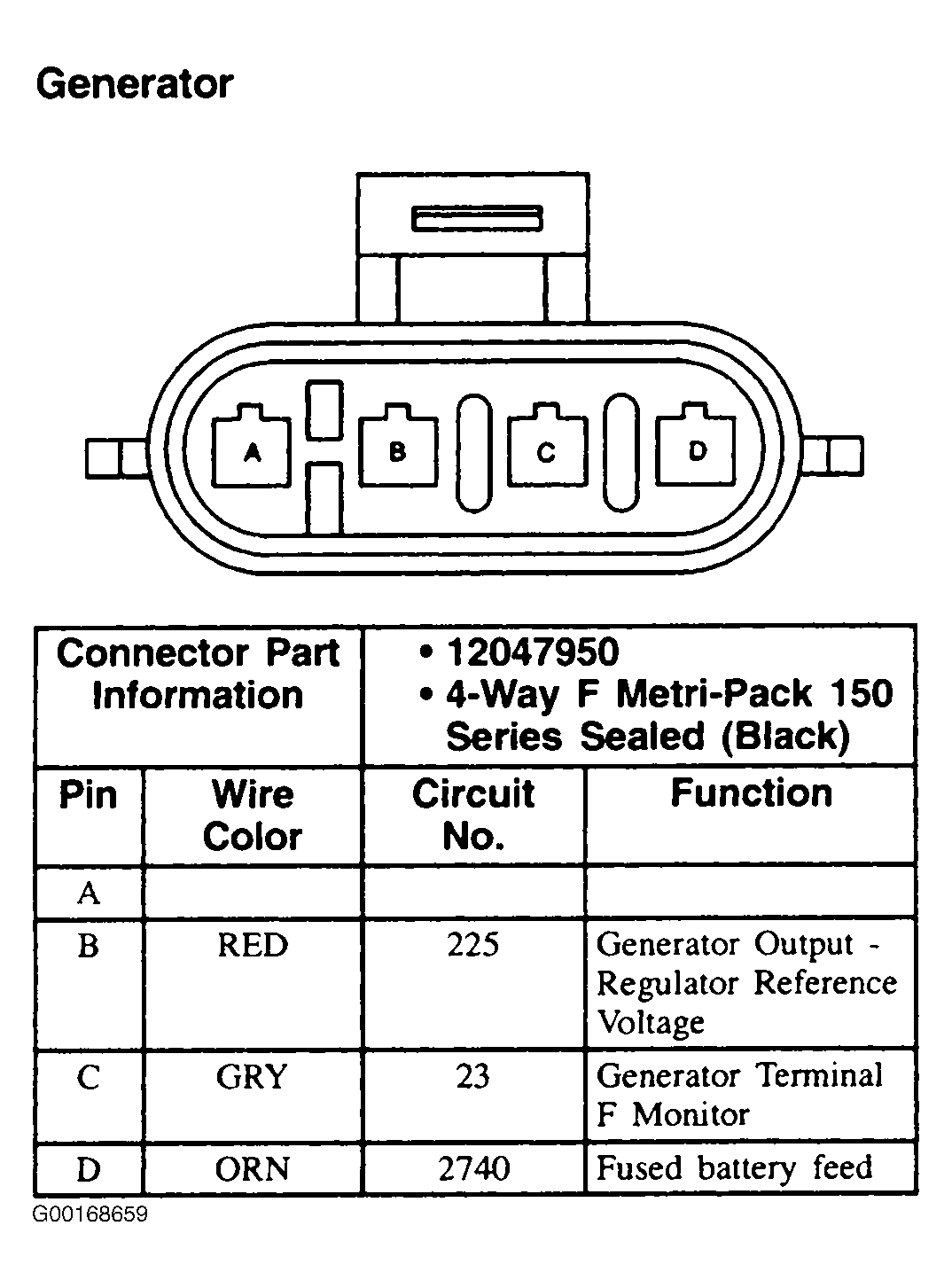

Fig 1: Generator (Century & Regal) - 4-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
