Heater-A/C Control C2 (HVAC System, A/C Front, Manual Controls)

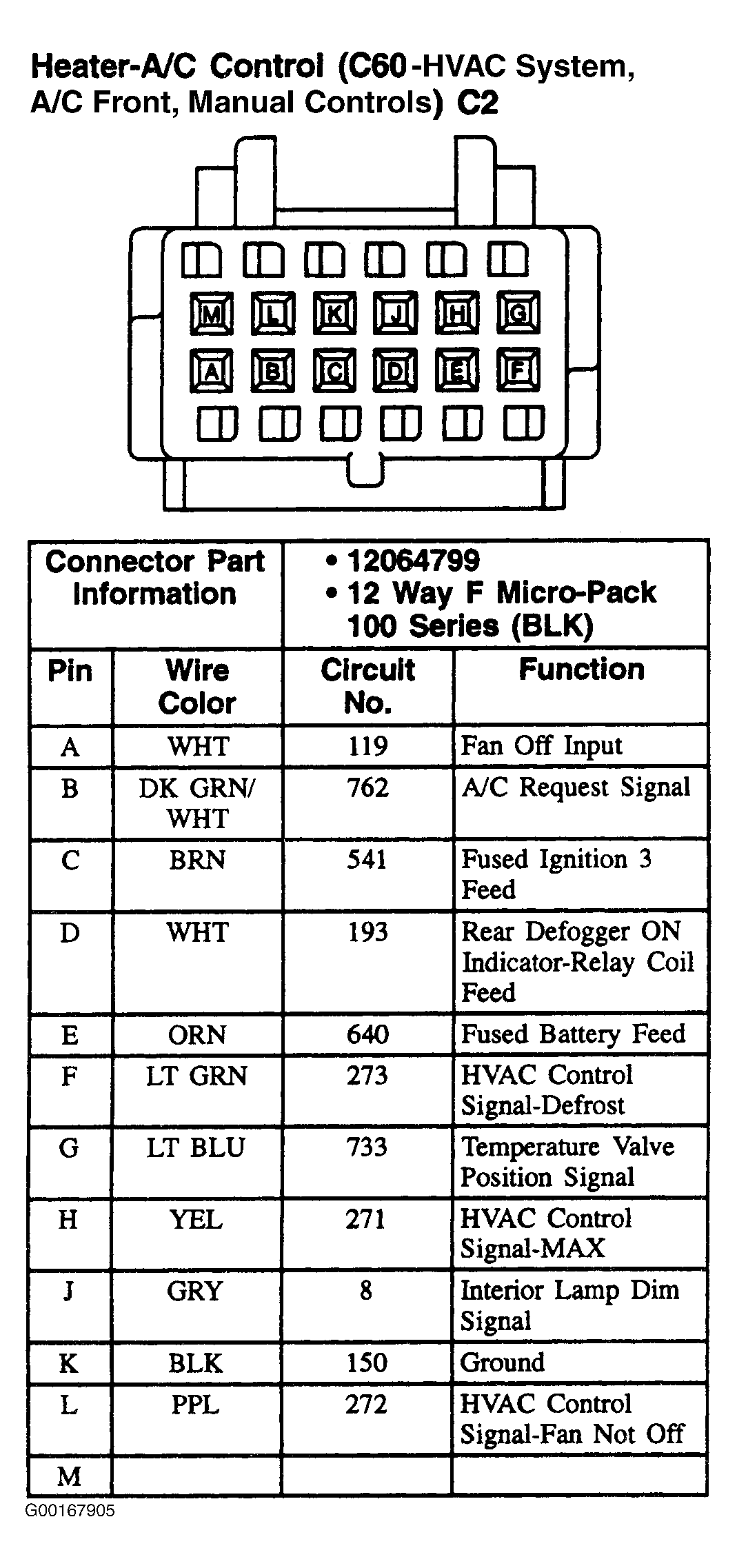

Fig 1: Heater-A/C Control C2 (C60 - HVAC System, A/C Front, Manual Controls) - 12-Pin Connector - (Black)

Courtesy of GENERAL MOTORS CORP.
