Transaxle Range Switch C1

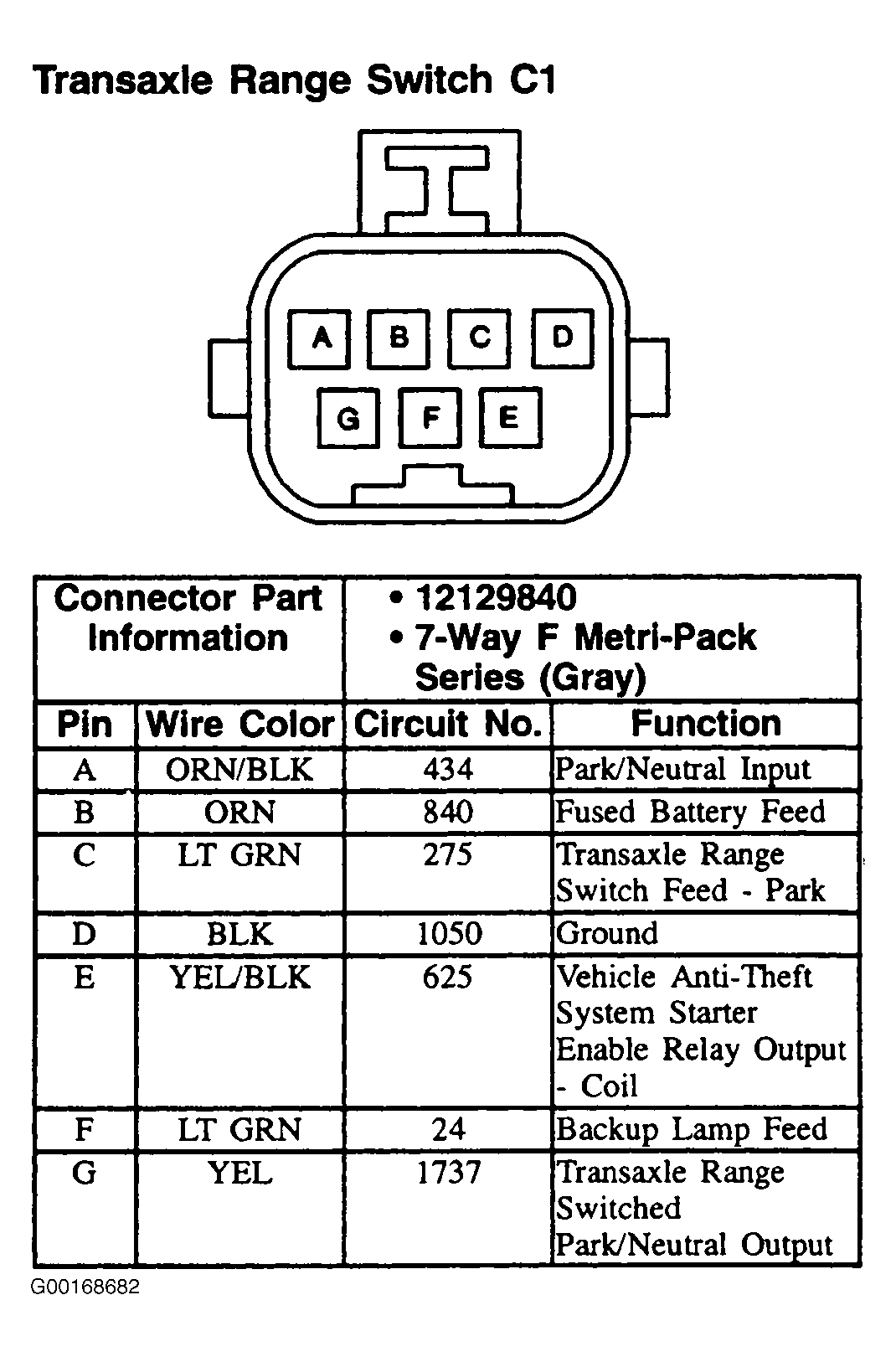

Fig 1: Transaxle Range Switch C1 (Century & Regal) - 7-Pin Connector (Gray)
G00168682Courtesy of GENERAL MOTORS CORP.
