Installation (Front)

  1. Install the water deflector at the door handle. See Fig 1.
  2. Align the water deflector to the door inner panel to the door. Press the sealer around the periphery of the deflector in order to ensure proper seating.
  3. Install waterproof tape to any damaged areas of the deflector.
  4. Install the front door radio speaker. See SPEAKER .
  5. Reinstall front door trim panel. See DOOR TRIM PANEL .

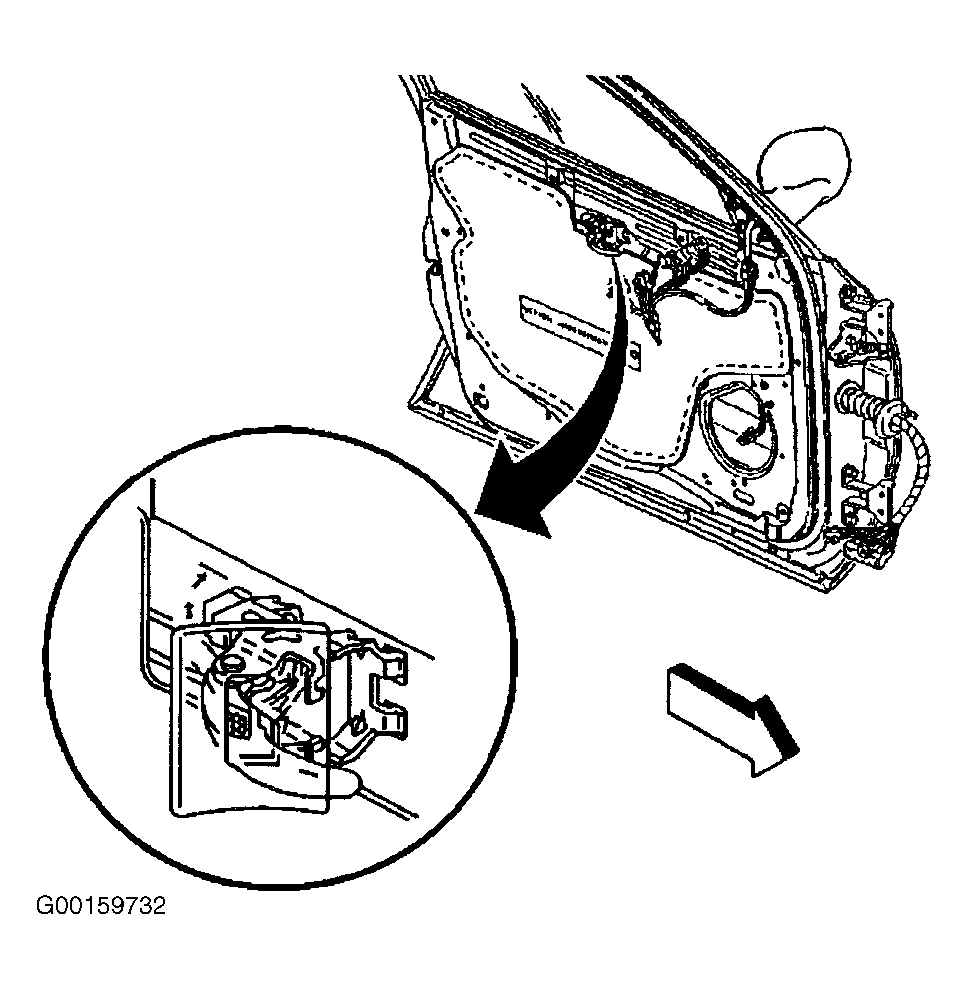

Fig 1: Removing Front Door Water Deflector
G00159732Courtesy of GENERAL MOTORS CORP.
