Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| Fuse Block | Behind right side of dash, in right door opening. |

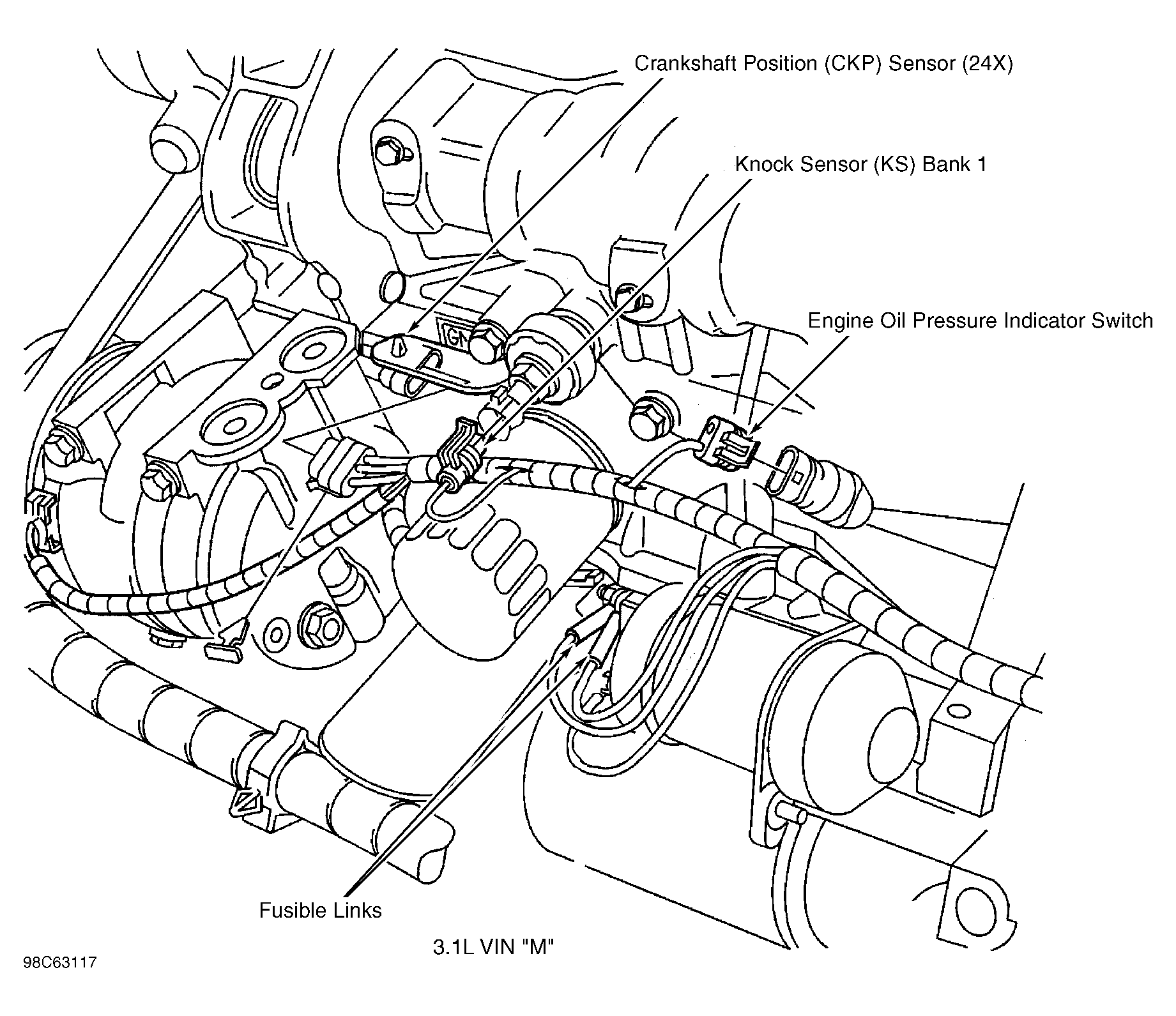

| Fusible Links (3.1L VIN M) | Left side of engine, on starter assembly. See Figure. |
| Underhood Accessory Wiring Junction Block | Mounted to right strut tower. |
