Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

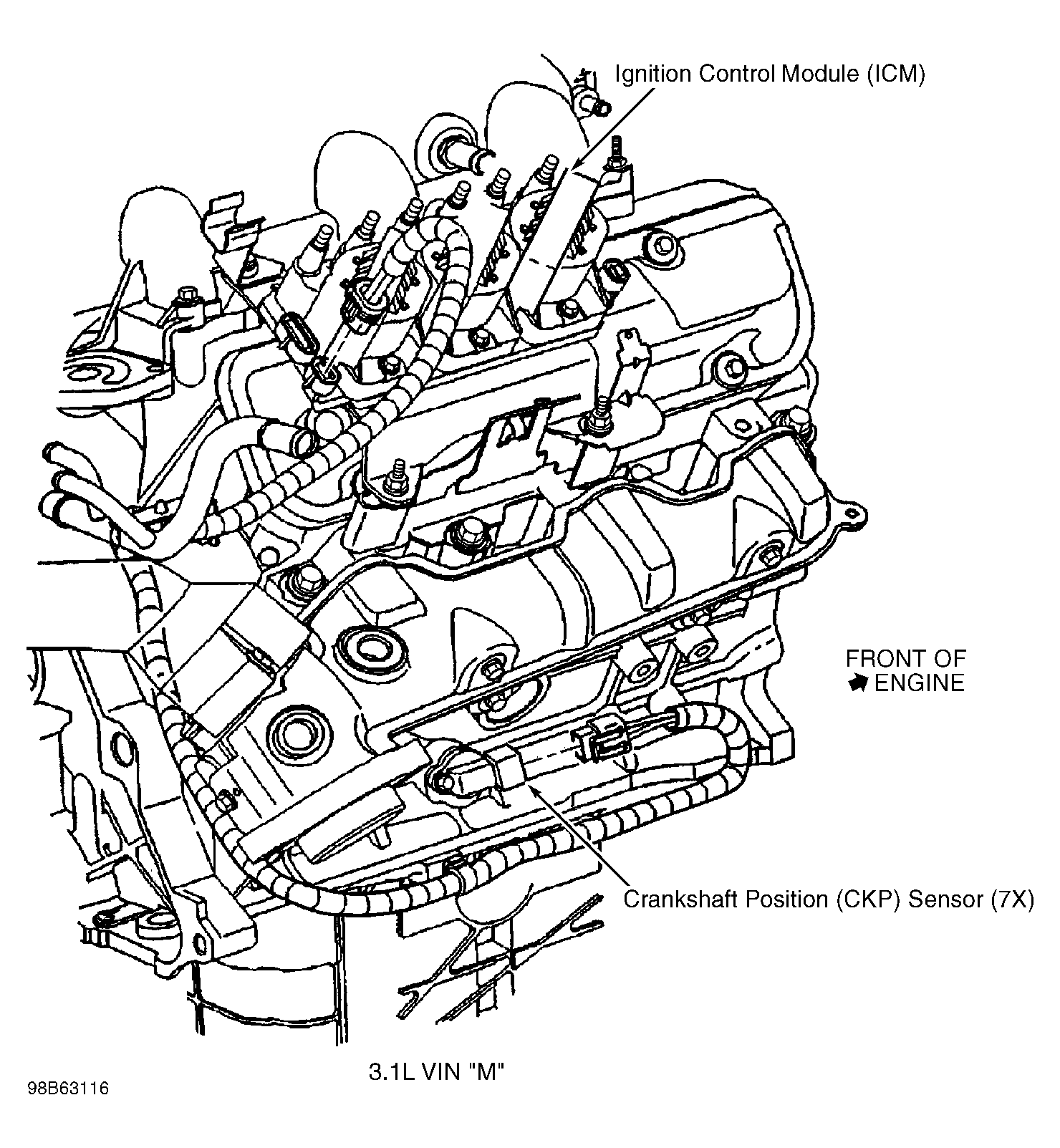

Fig 1: Right Side Of Engine (3.1L VIN M)

Courtesy of GENERAL MOTORS CORP.

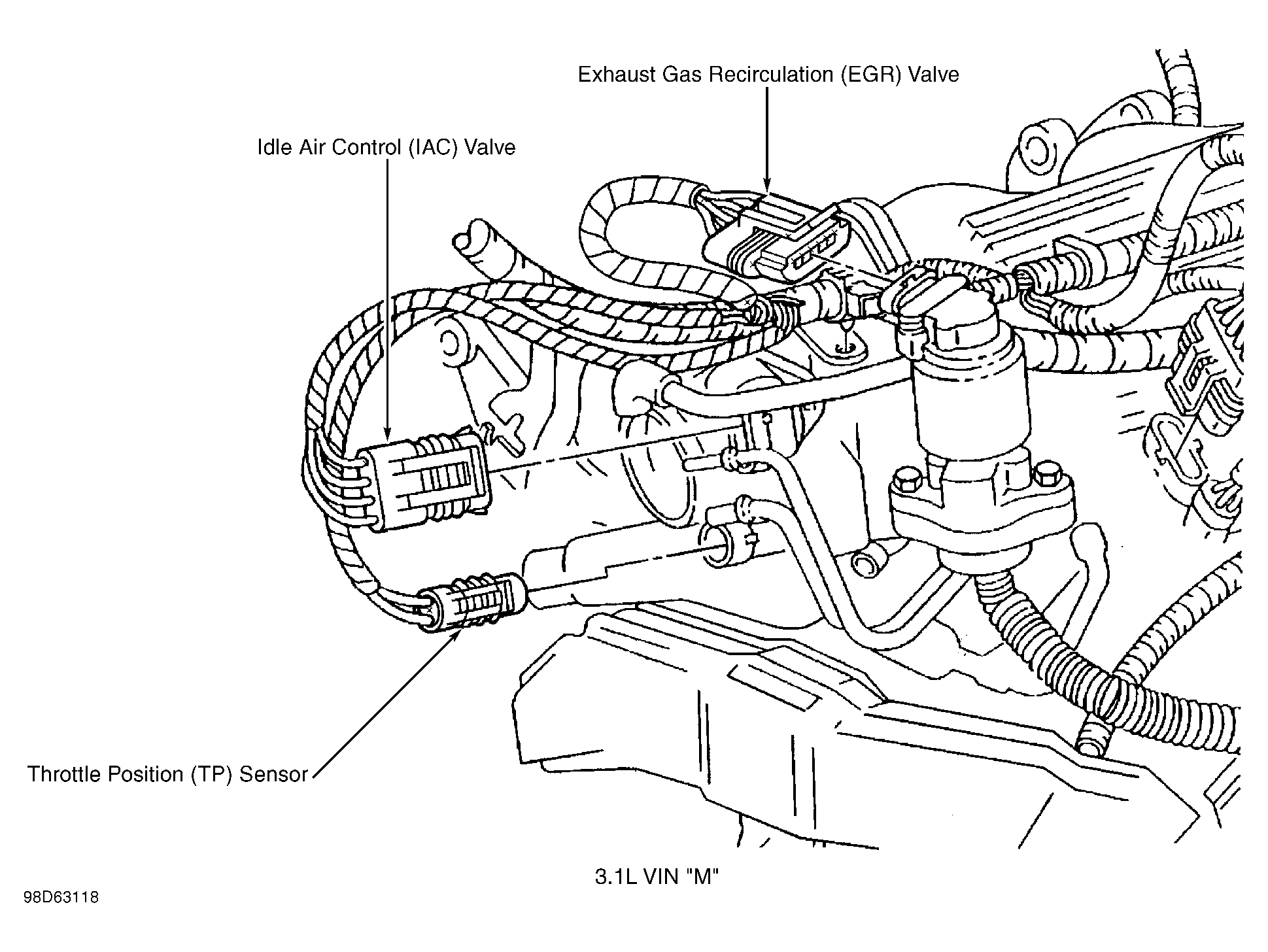

Fig 2: Rear Of Engine (3.1L VIN M)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Left Side Of Engine (3.1L VIN M)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Rear Of Engine (3.8L VIN K & 3.8L VIN 1)

Courtesy of GENERAL MOTORS CORP.

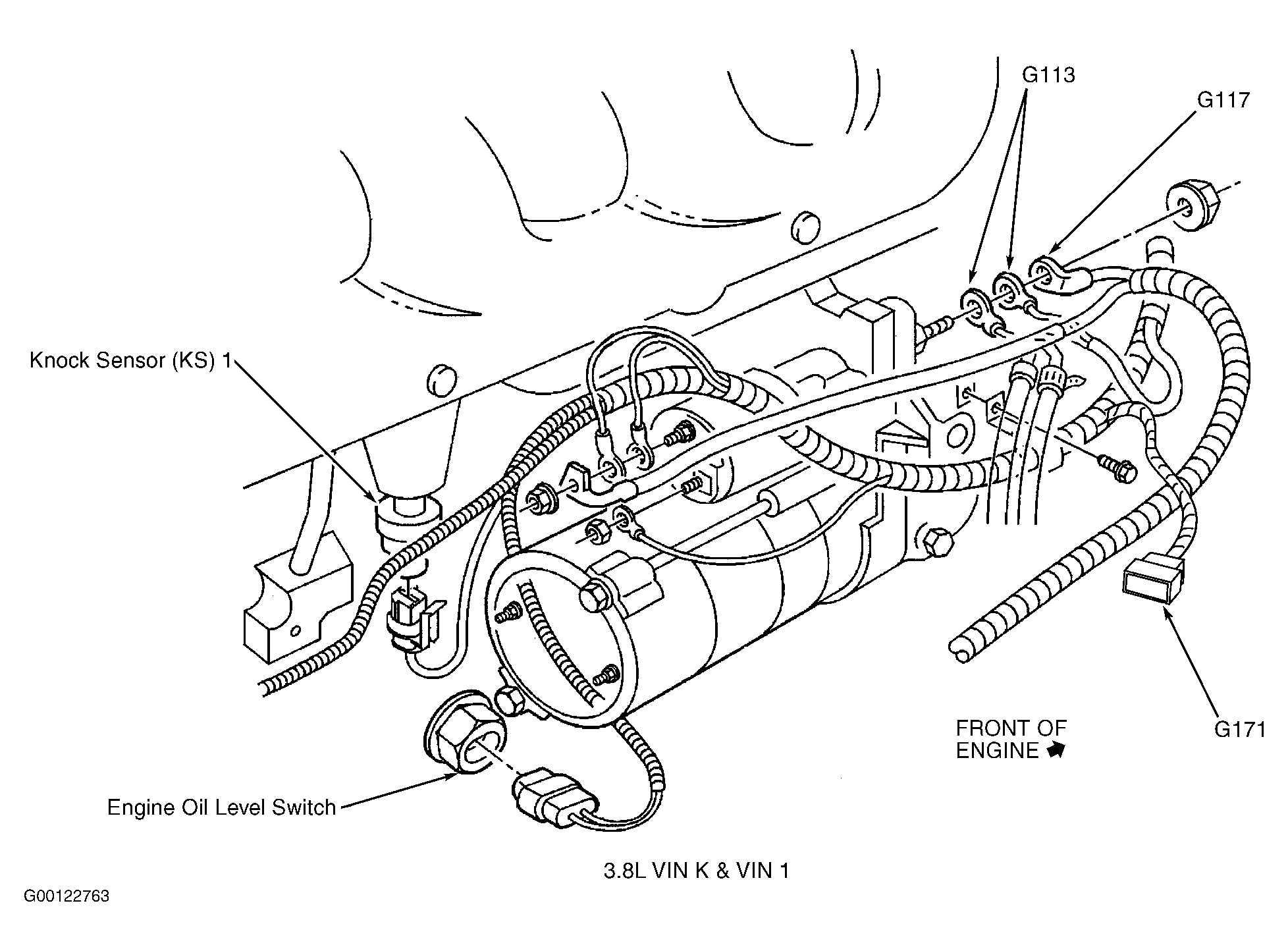

Fig 5: Left Side Of Engine (3.8L VIN K & 3.8L VIN 1)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Rear Of Engine (3.8L VIN K & 3.8L VIN 1)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Right Rear Of Transaxle

Courtesy of GENERAL MOTORS CORP.

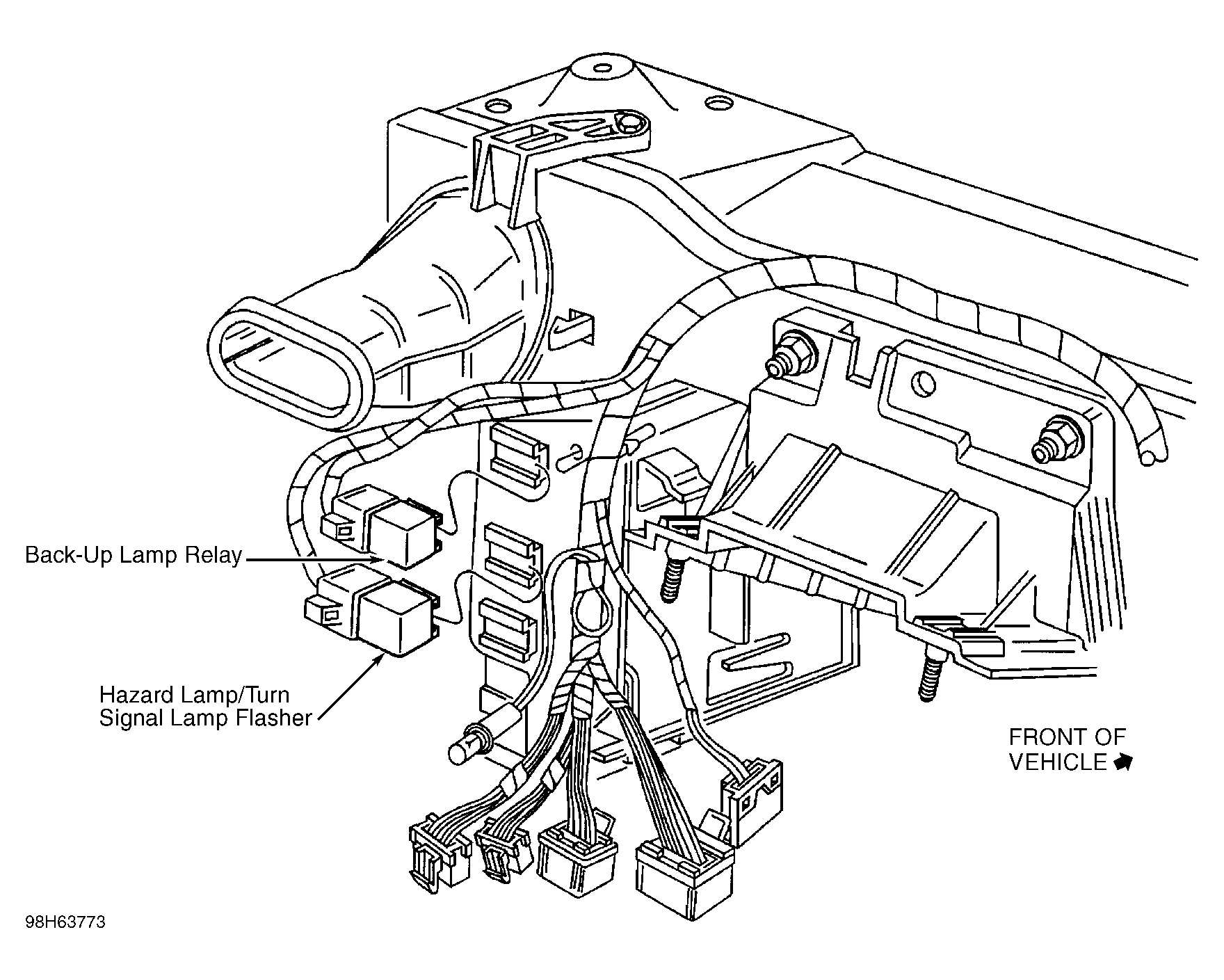

Fig 8: Left Front Of Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

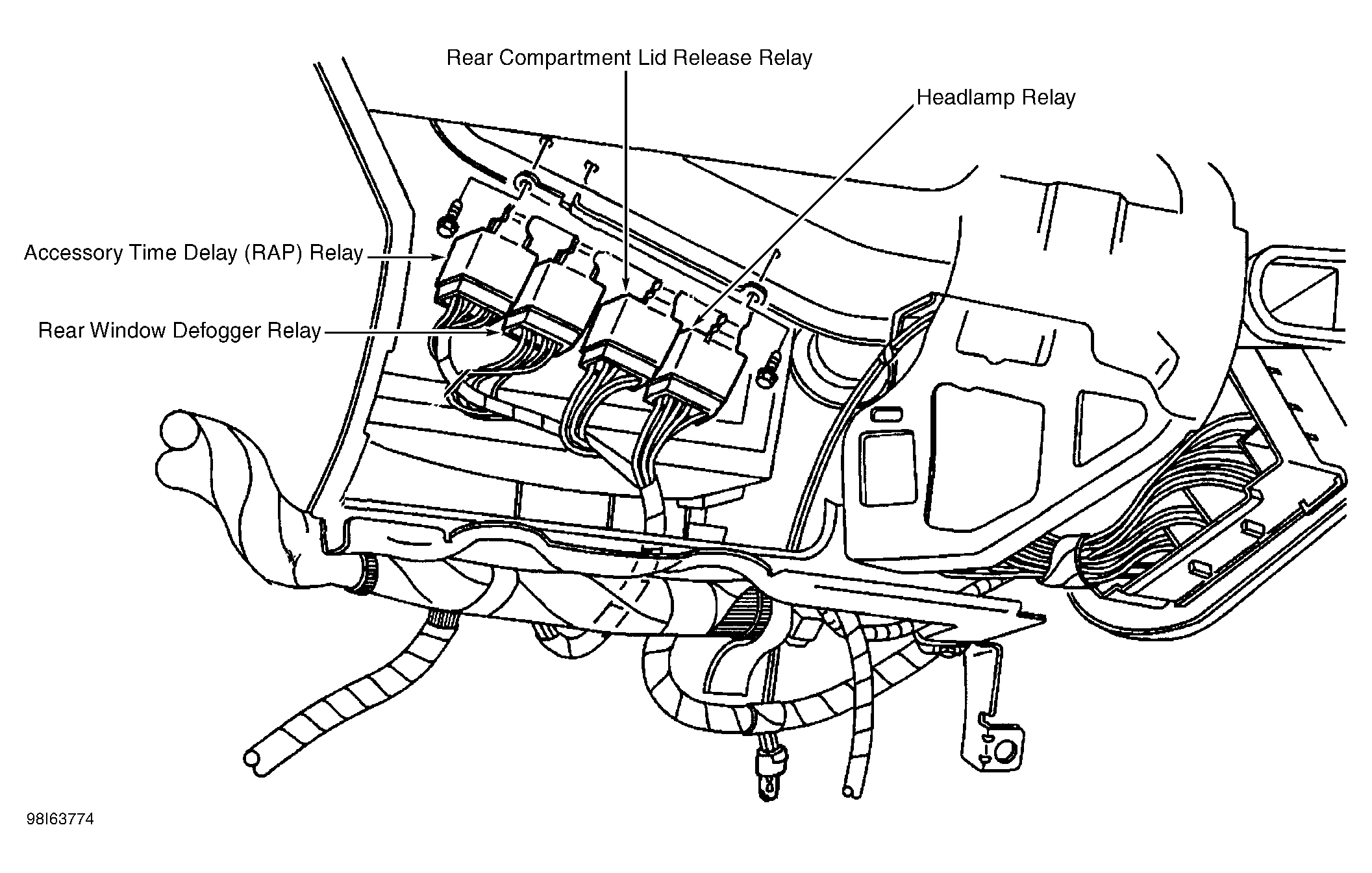

Fig 9: Right Side Of Dash

Courtesy of GENERAL MOTORS CORP.

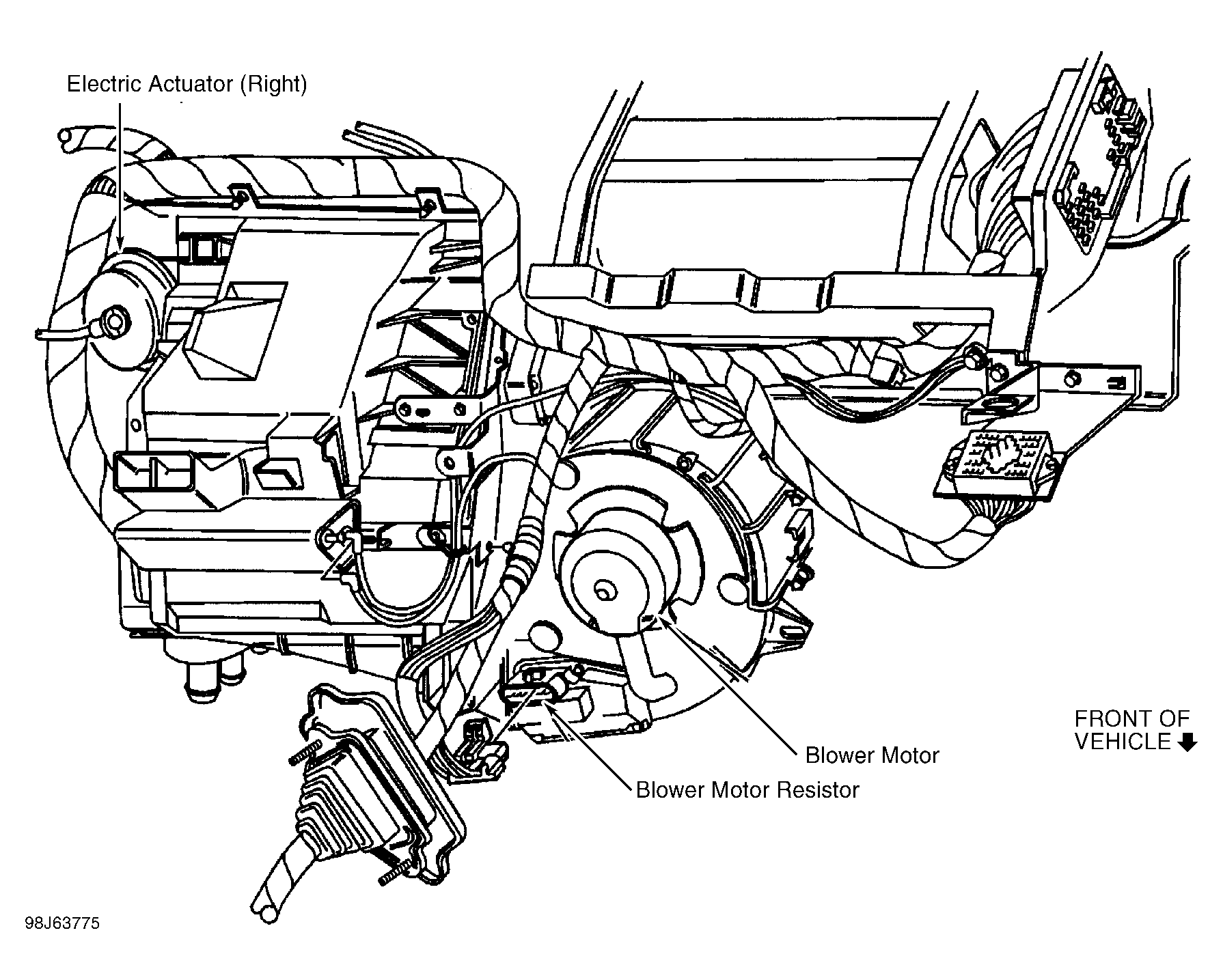

Fig 10: HVAC Module

Courtesy of GENERAL MOTORS CORP.

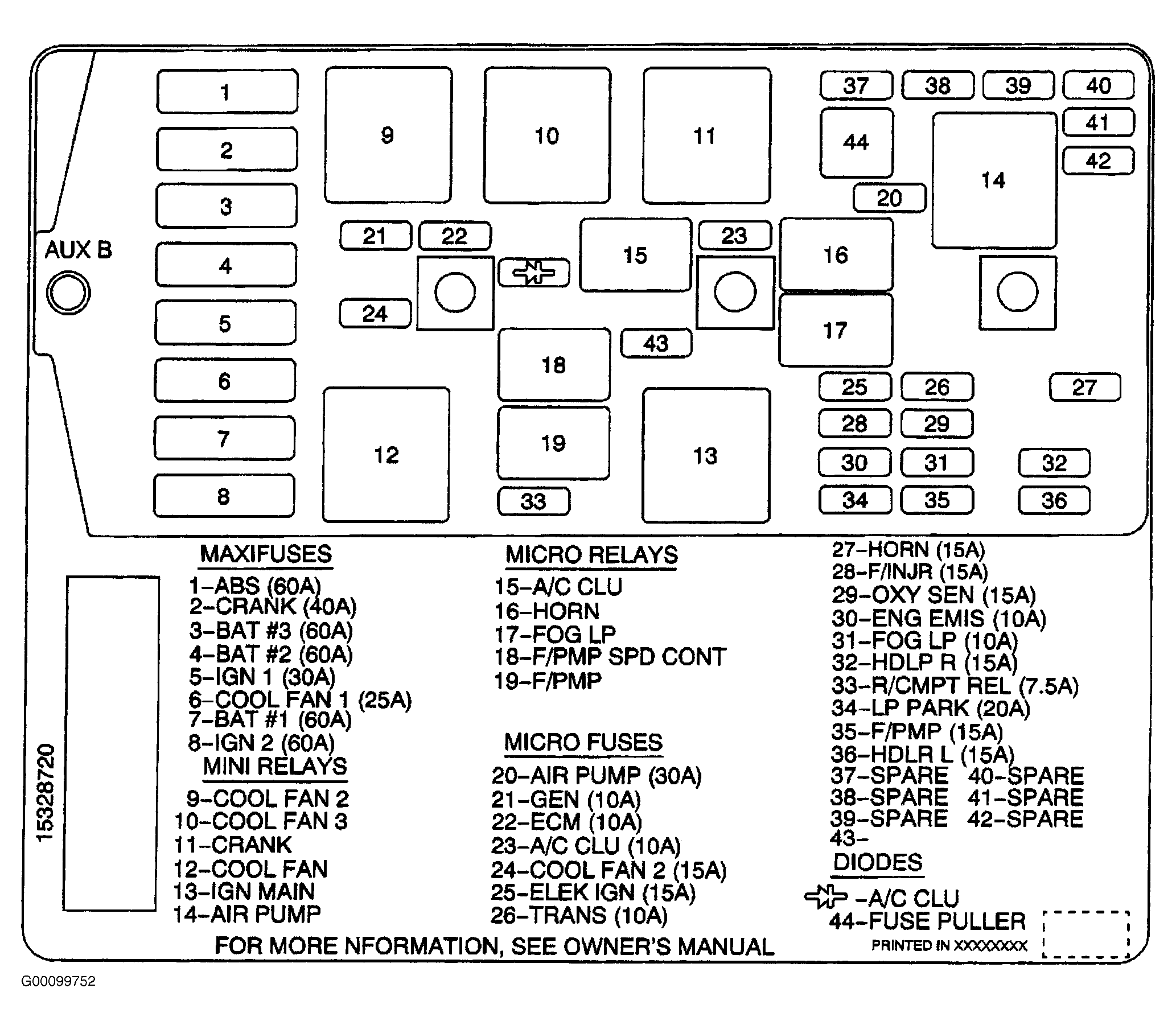

Fig 11: Underhood Accessory Wiring Junction Block

Courtesy of GENERAL MOTORS CORP.
