Keyless Entry Component Views

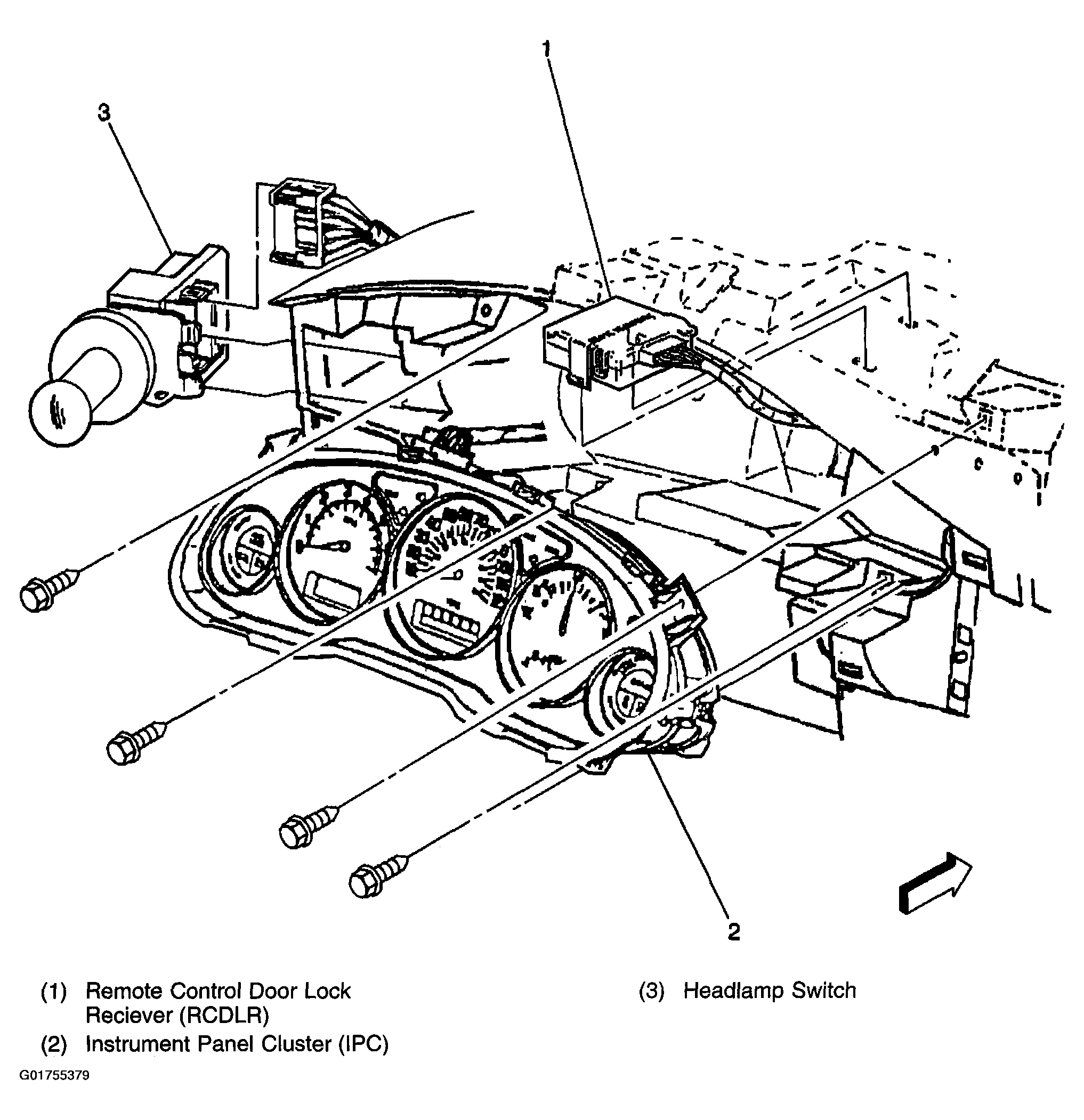

Fig 1: Identifying Left Side of Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
