Component Locations
NOTE:
For Body Control Module (BCM) and Data Link Connector (DLC) locations, refer to illustrations. See Fig 1
and Fig 2
.
COMPONENT LOCATIONS
| Component | Location |
|---|---|

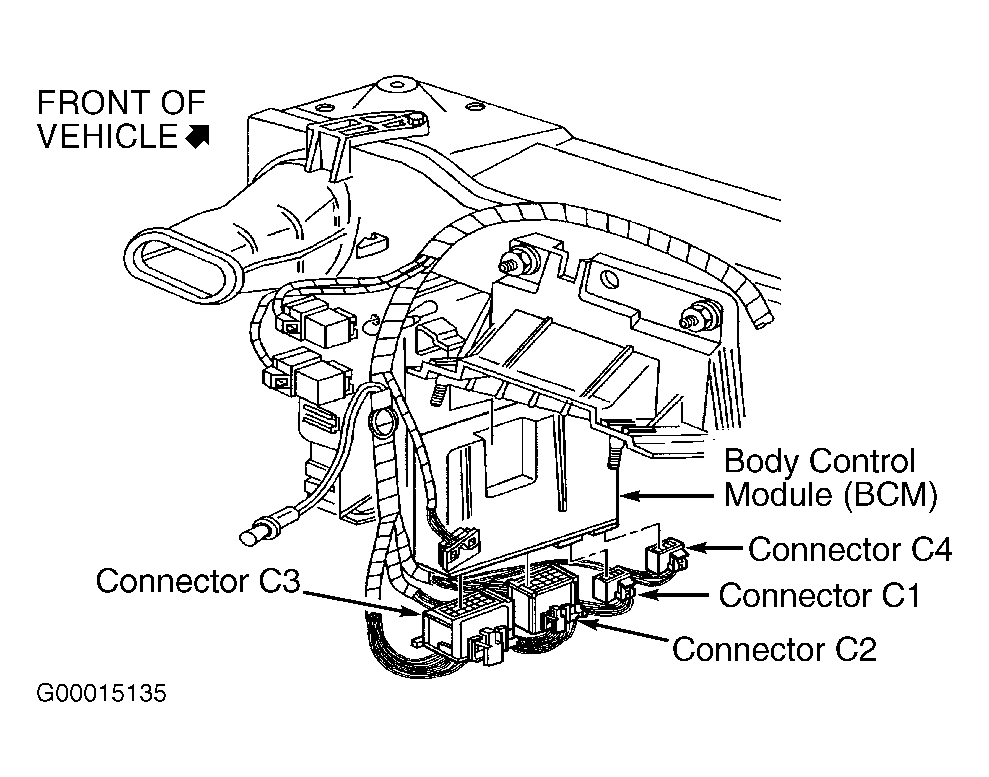

| Body Control Module | Behind Left Side Of Instrument Panel, To Left Of Steering Column |

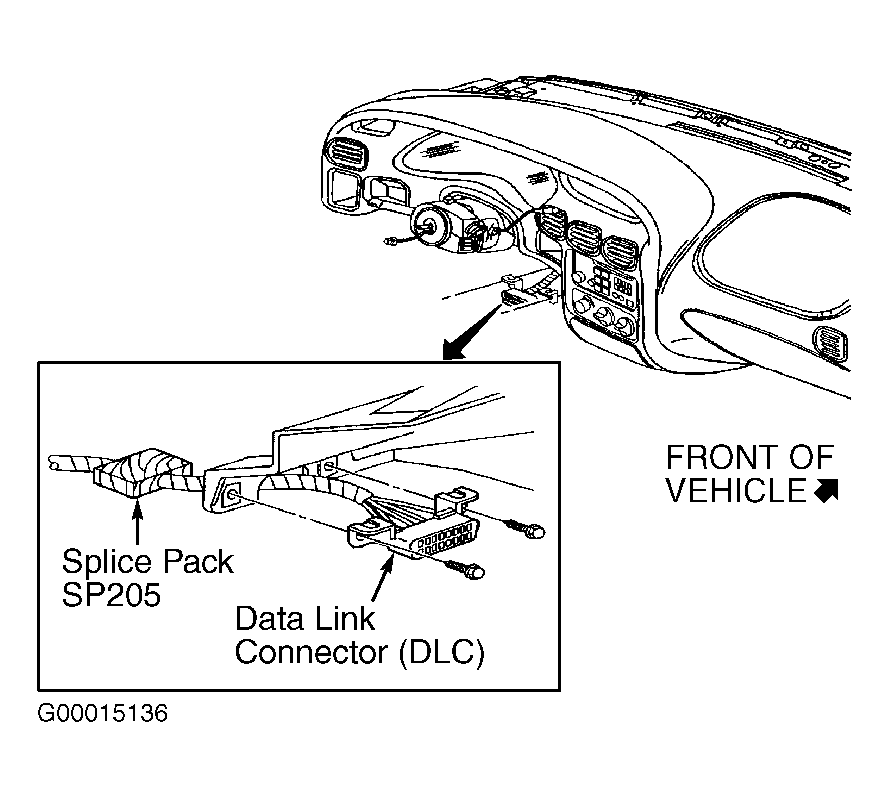

| Data Link Connector | Below Left Side Of Instrument Panel, To Right Of Steering Column |
| Instrument Panel Fuse Block | Behind Right Side Instrument Panel Endcap |
| Underhood Accessory Wiring Junction Block | Mounted To Right Front Strut |
