ABS Component Views

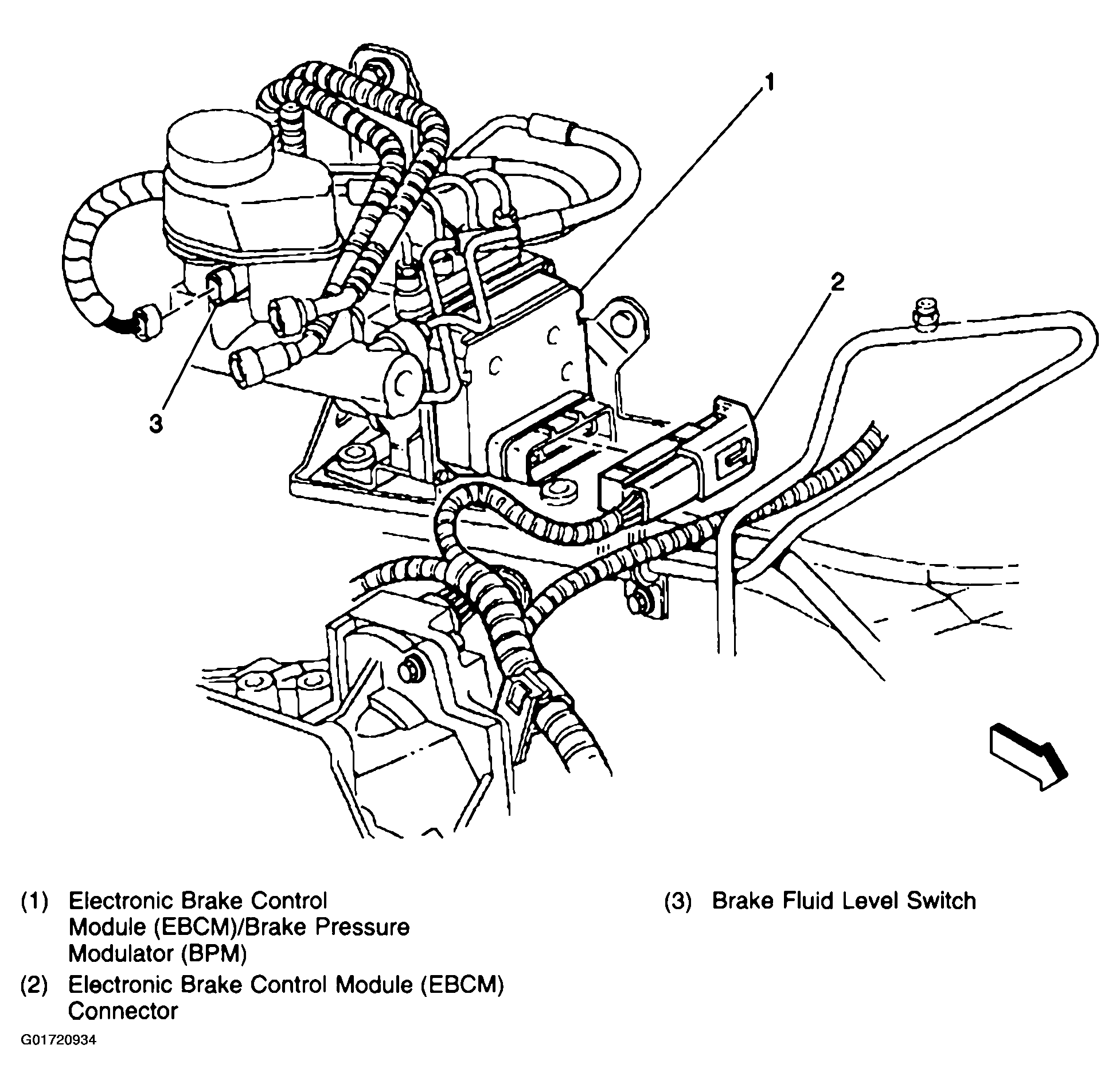

Fig 1: Right Rear Side of Engine Compartment Component Views
G01720934Courtesy of GENERAL MOTORS CORP.

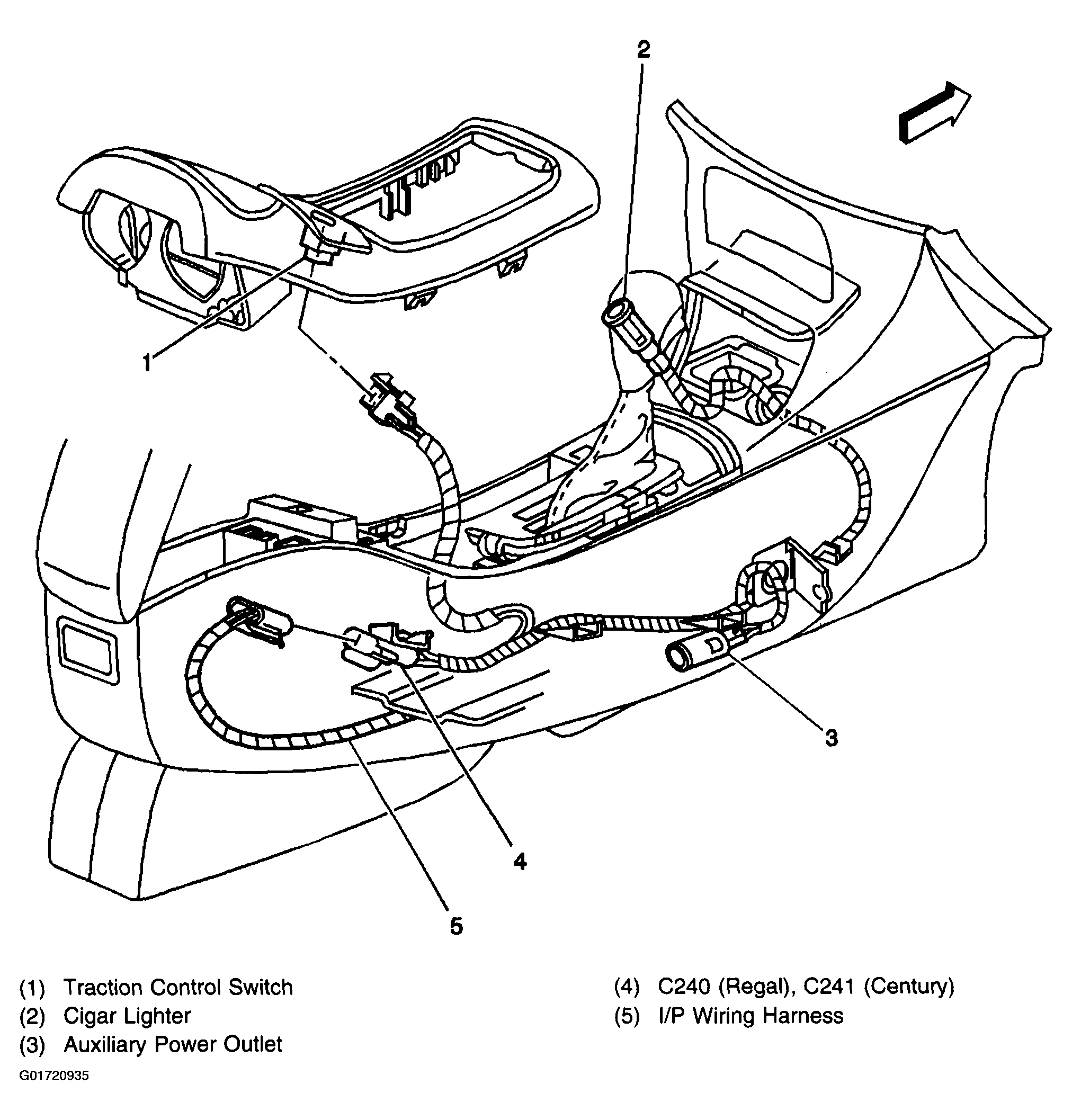

Fig 2: Center Console (RPO D55) Component Views
G01720935Courtesy of GENERAL MOTORS CORP.

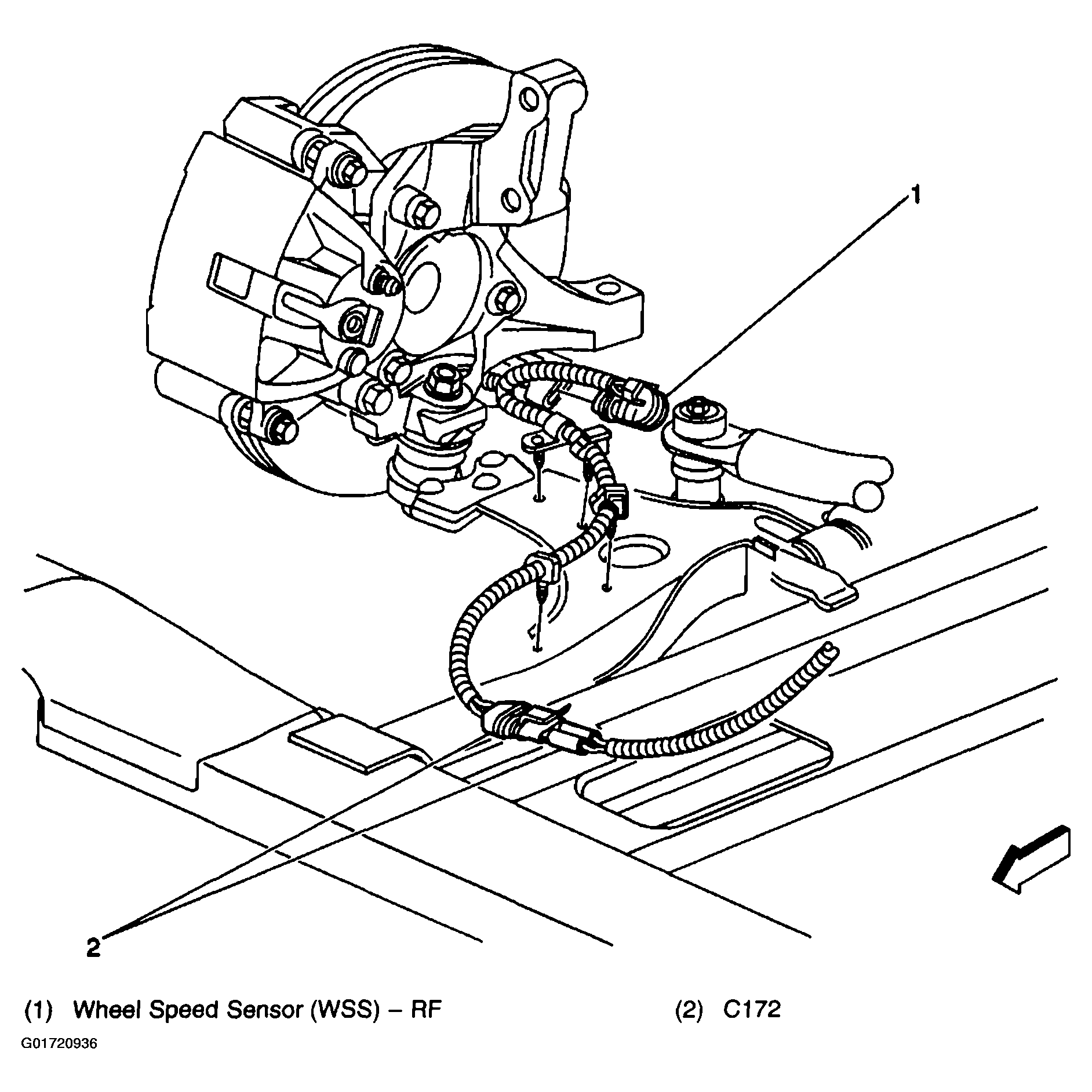

Fig 3: Right Front Wheel Speed Sensor Component Views
G01720936Courtesy of GENERAL MOTORS CORP.

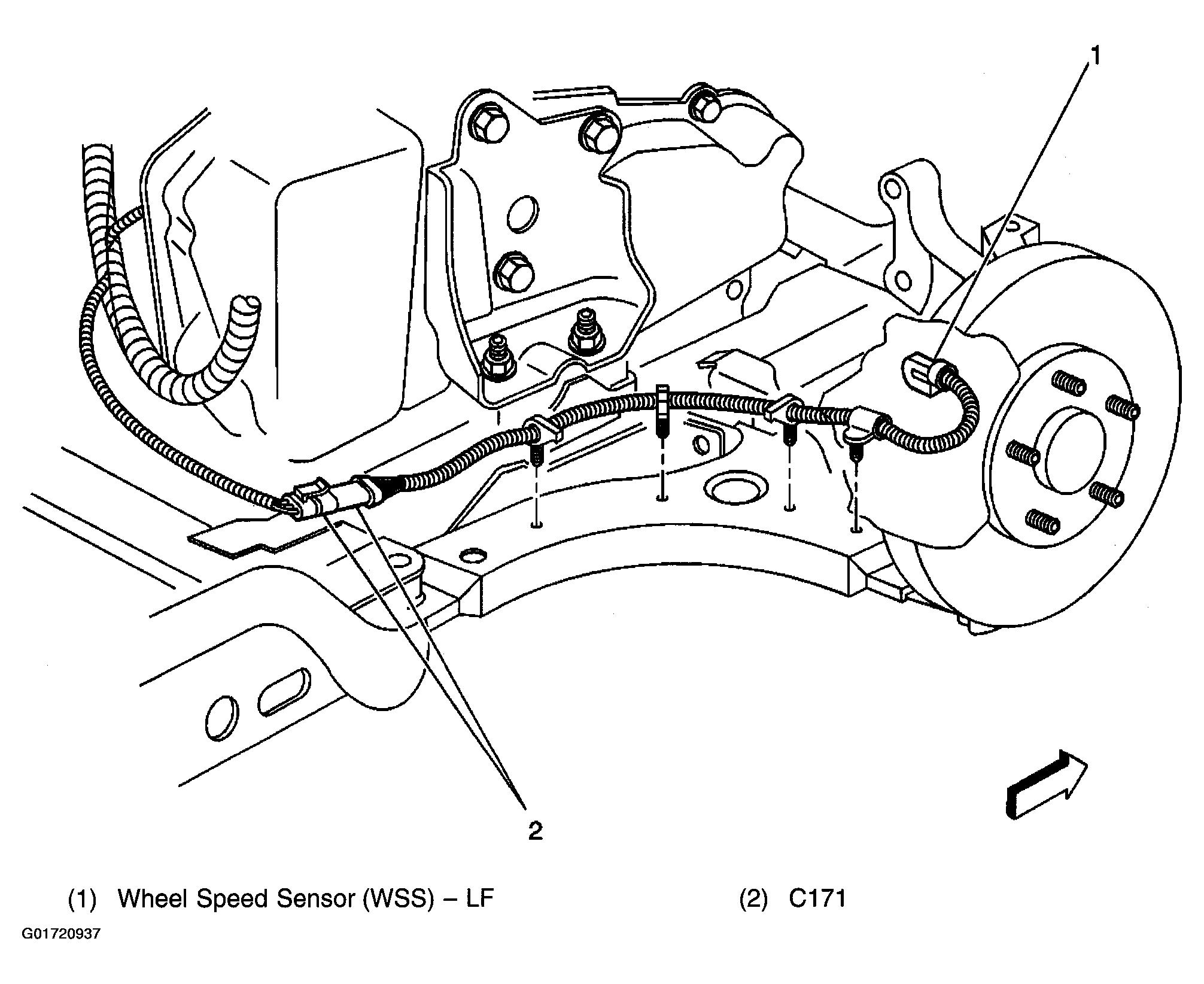

Fig 4: Left Front Wheel Speed Sensor Component Views
G01720937Courtesy of GENERAL MOTORS CORP.
