ABS Connectors

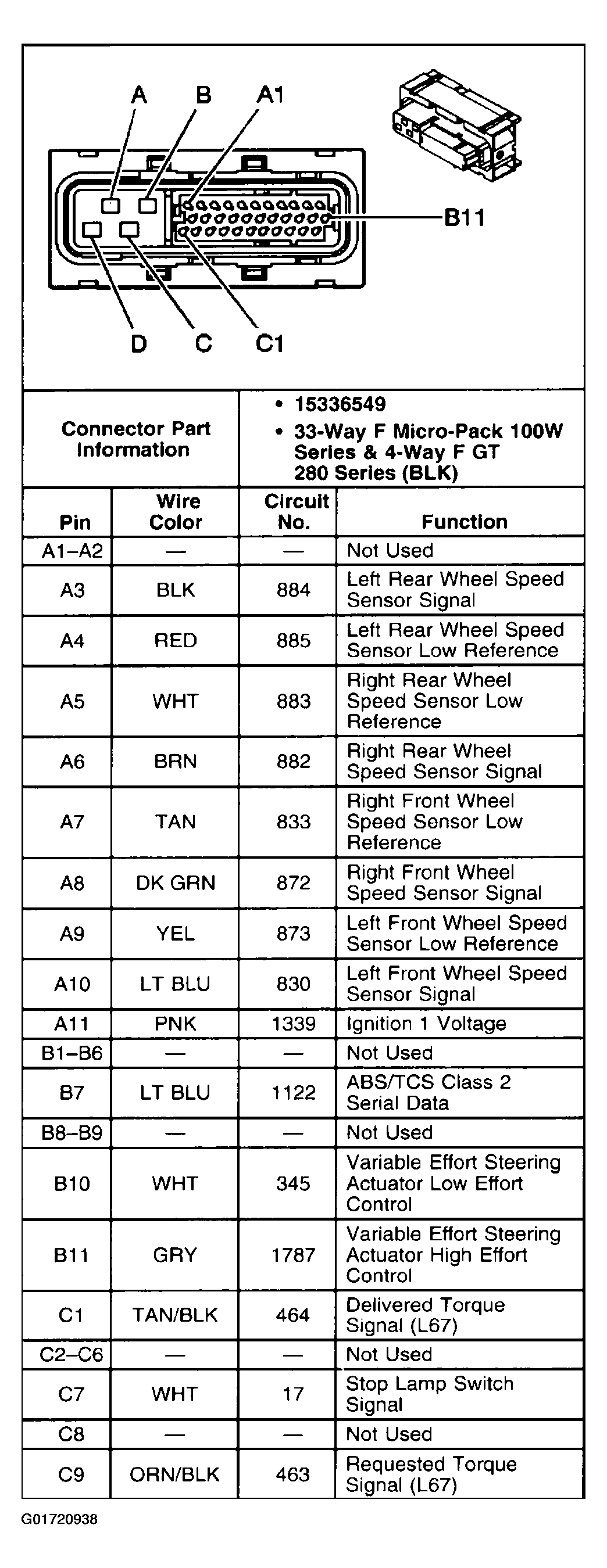

Fig 1: Electronic Brake Control Module (EBCM) (1 of 2)

Courtesy of GENERAL MOTORS CORP.

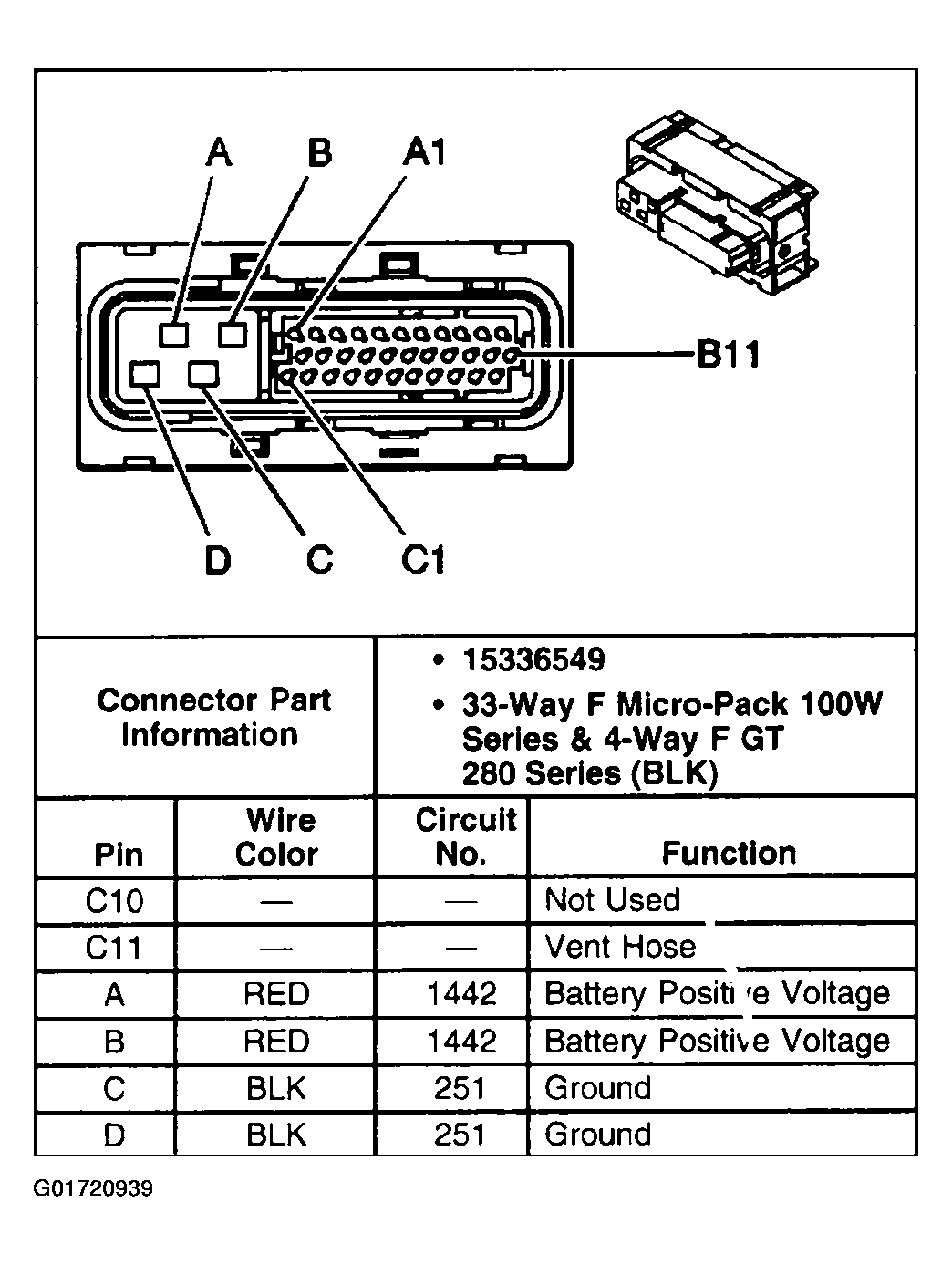

Fig 2: Electronic Brake Control Module (EBCM) (2 of 2)

Courtesy of GENERAL MOTORS CORP.

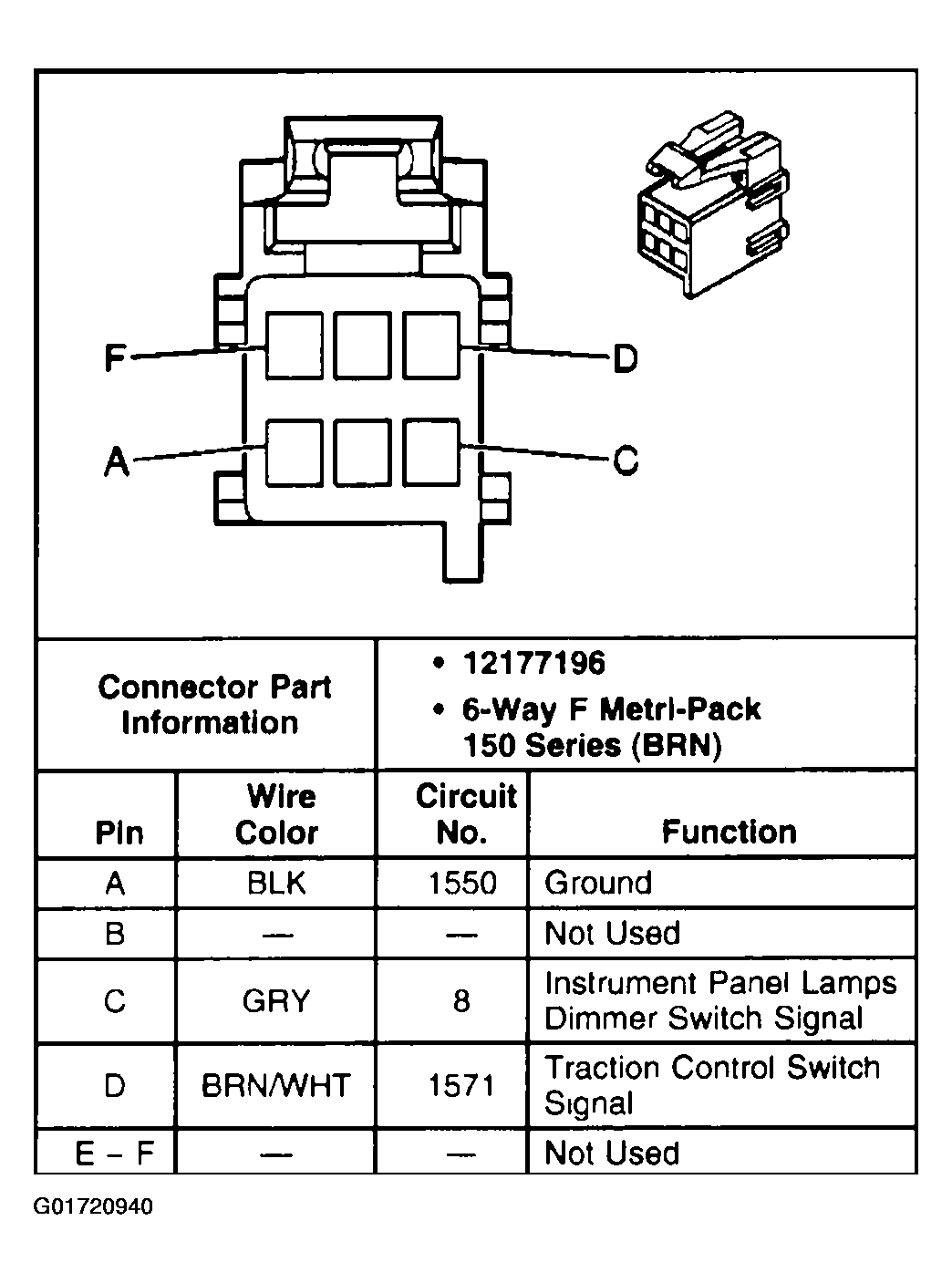

Fig 3: Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

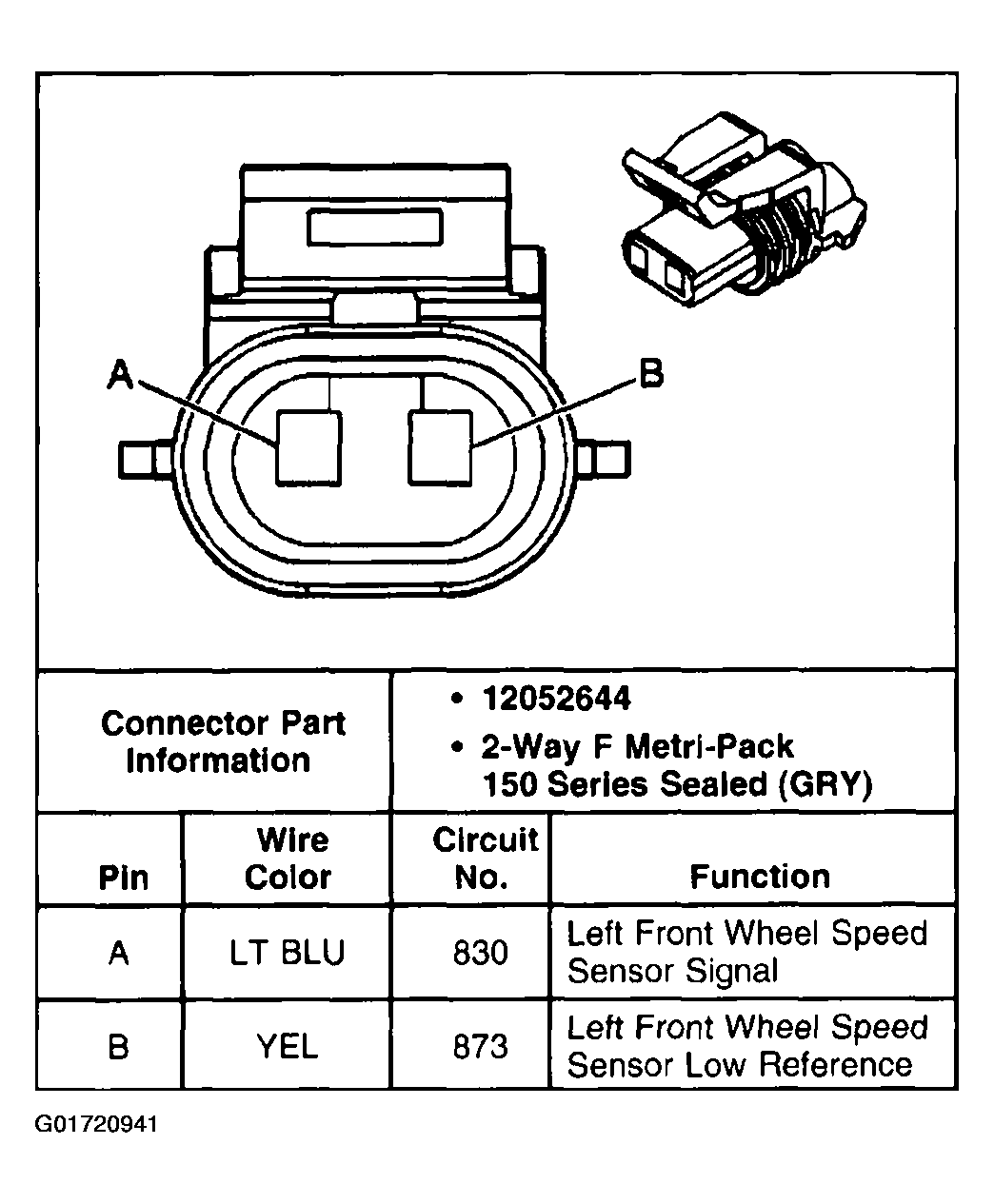

Fig 4: Wheel Speed Sensor (WSS) - LF

Courtesy of GENERAL MOTORS CORP.

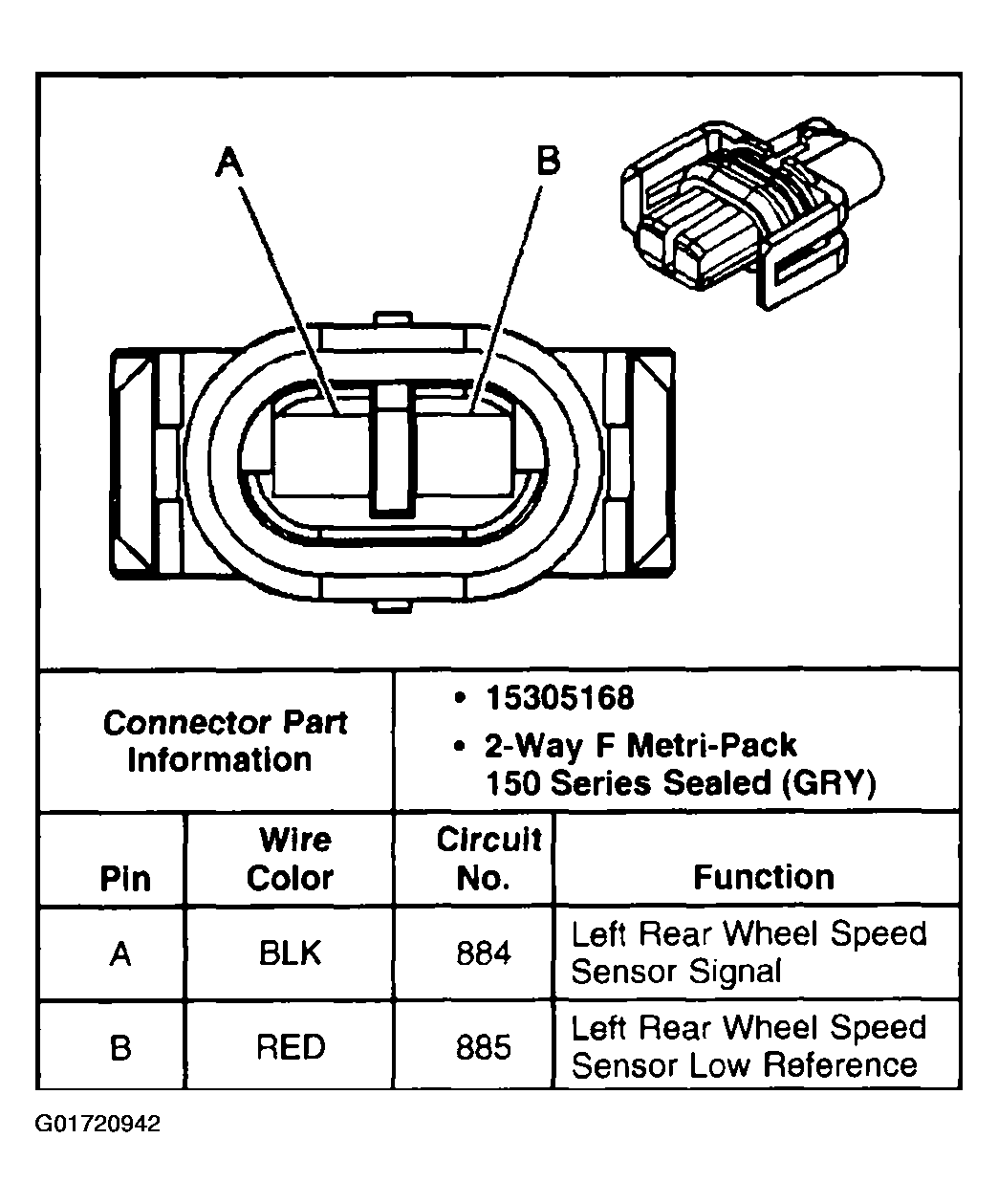

Fig 5: Wheel Speed Sensor (WSS) - LR

Courtesy of GENERAL MOTORS CORP.

Fig 6: Wheel Speed Sensor (WSS) - RF

Courtesy of GENERAL MOTORS CORP.

Fig 7: Wheel Speed Sensor (WSS) - RR

Courtesy of GENERAL MOTORS CORP.
