Installation Procedure

  1. Connect the electrical connector to the traction control switch.
  2. Connect the electrical connectors to the heater seat switches.
  3. Position the traction control/heated seat switch to the front floor console trim plate.
  4. Install the traction control/heated seat switch into the console trim plate pressing in until the retainers are fully seated.

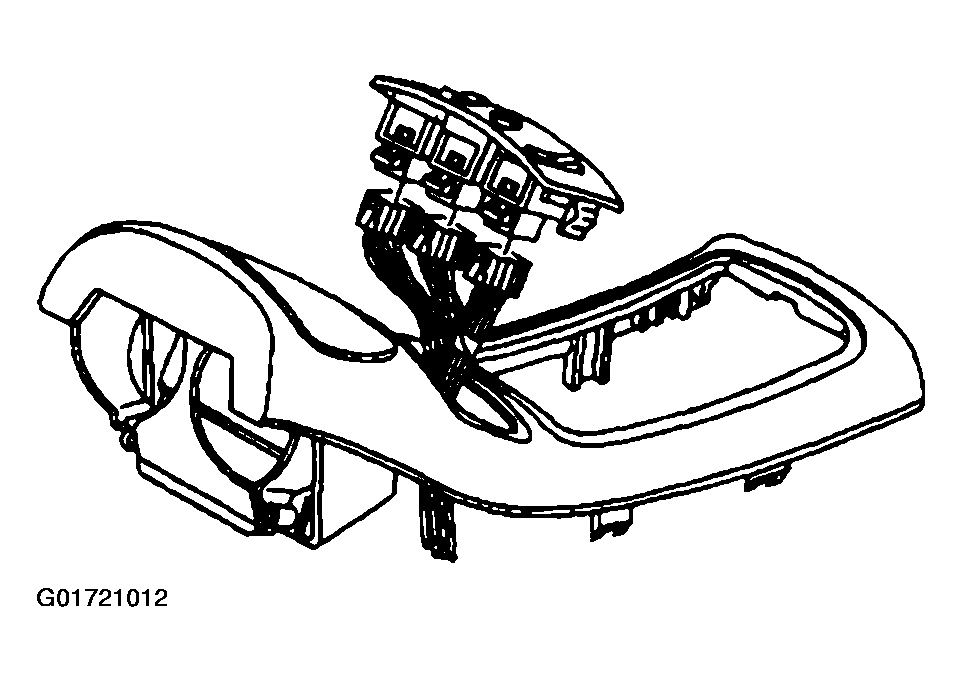

Fig 1: Traction Control/Heated Seat Switch Electrical Connectors
G01721012Courtesy of GENERAL MOTORS CORP.
