Engine Electrical Component Views

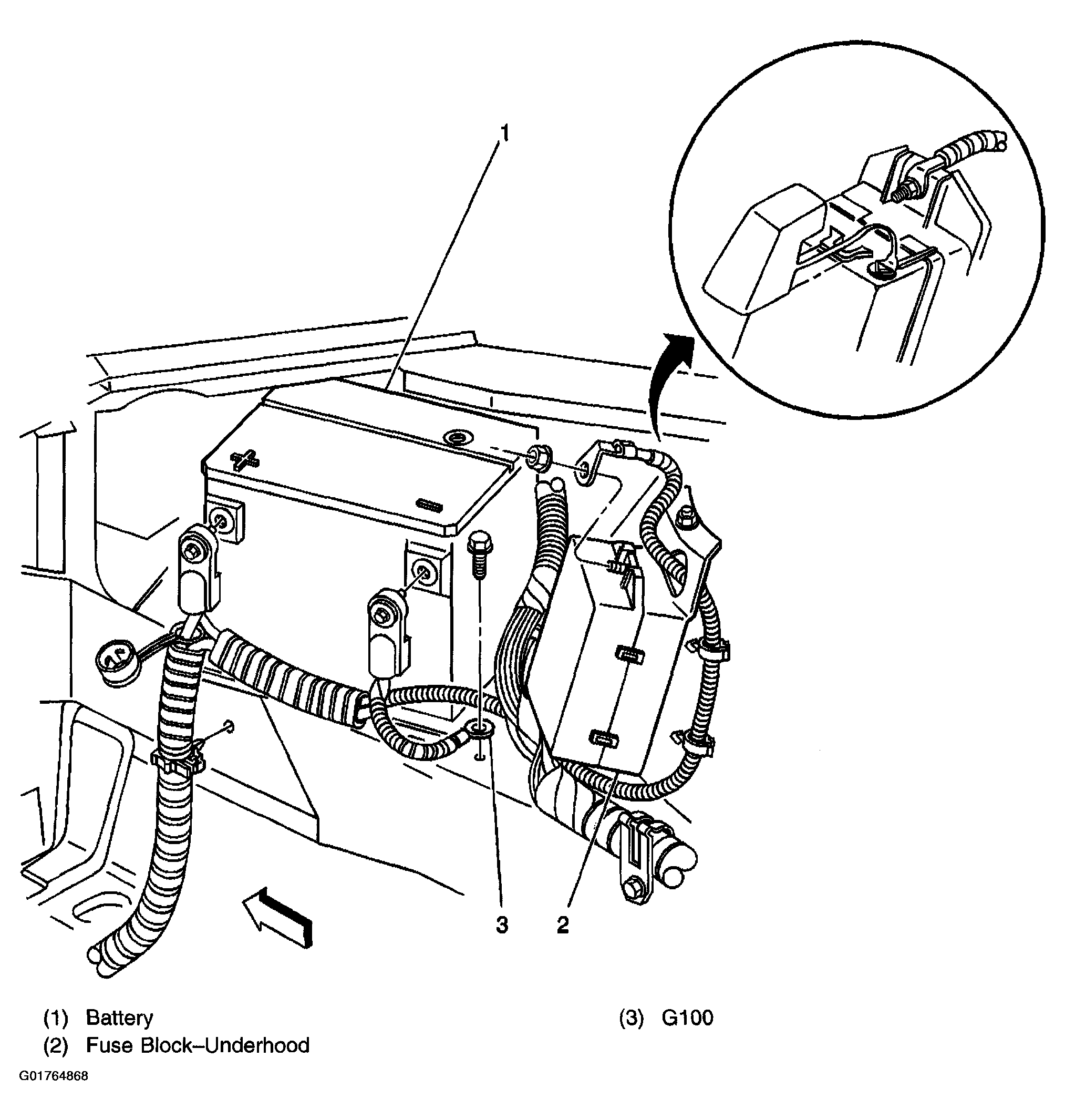

Fig 1: Identifying Battery Cable and Grounding Point Component View
G01764868Courtesy of GENERAL MOTORS CORP.

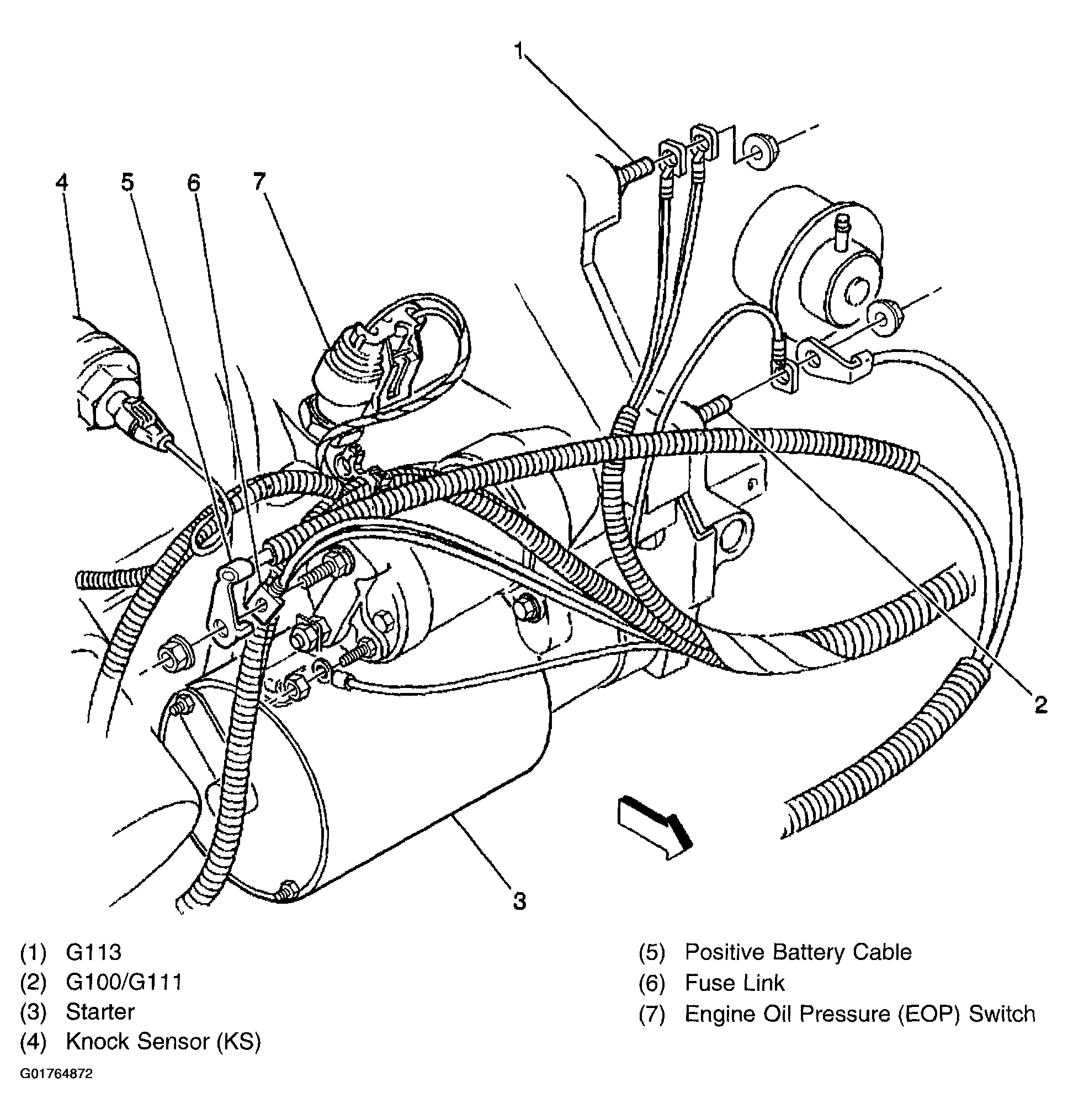

Fig 2: Identifying Lower Front of Engine Component View
G01764872Courtesy of GENERAL MOTORS CORP.

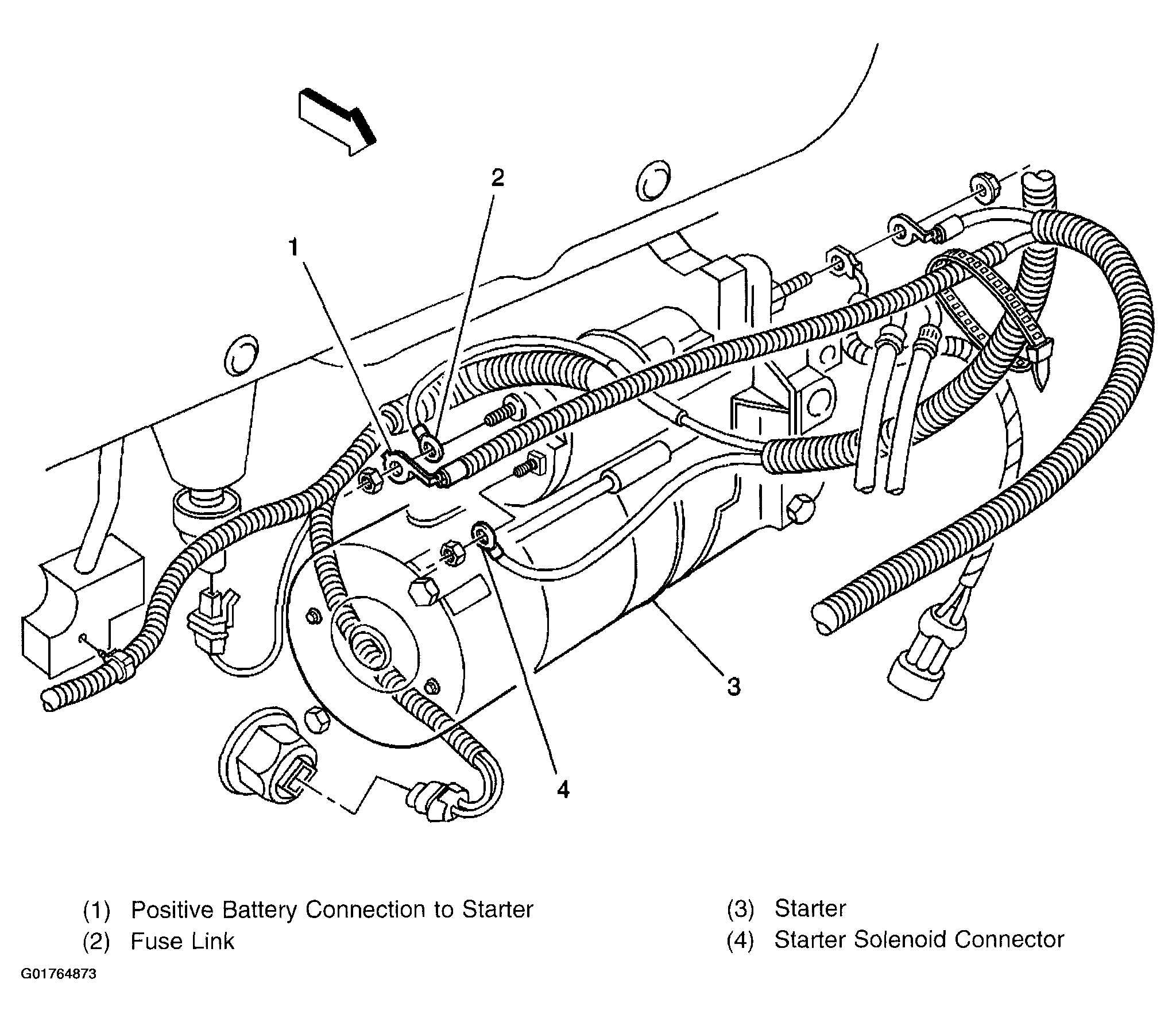

Fig 3: Identifying Starter (RPO L36, 3.8L) Component View
G01764873Courtesy of GENERAL MOTORS CORP.

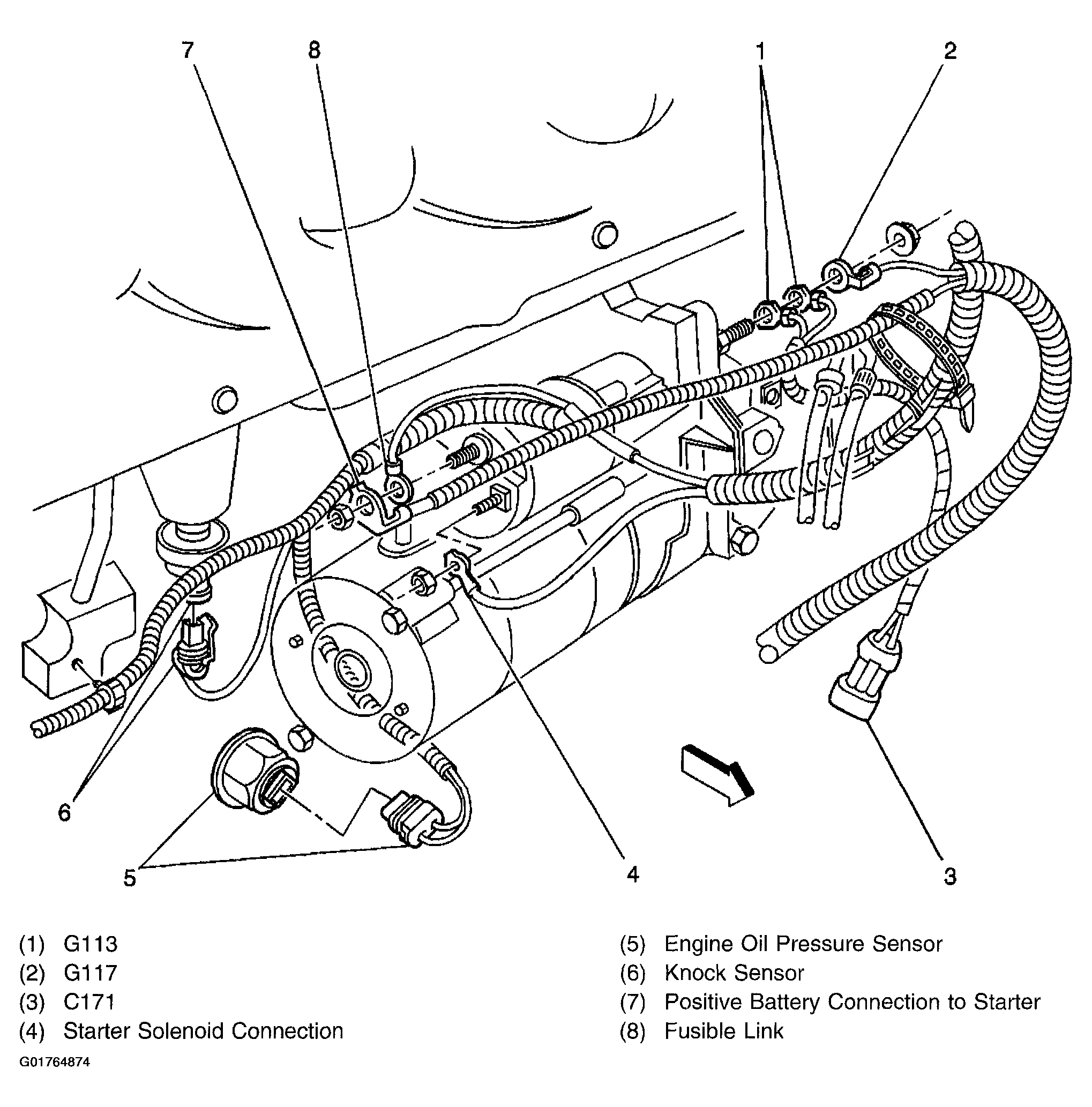

Fig 4: Identifying Starter (RPO L67, 3.8L Supercharged), Component View
G01764874Courtesy of GENERAL MOTORS CORP.
