Scan Tool Data List

Fig 1: Identifying Body Control Module (BCM) Scan Tool Data

Courtesy of GENERAL MOTORS CORP.

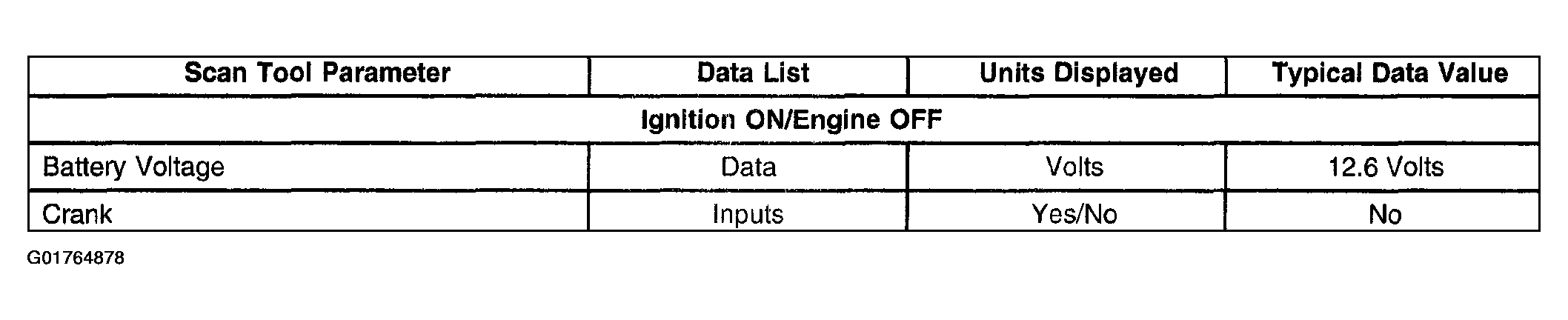

Fig 2: Identifying Scan Tool Data List

Courtesy of GENERAL MOTORS CORP.

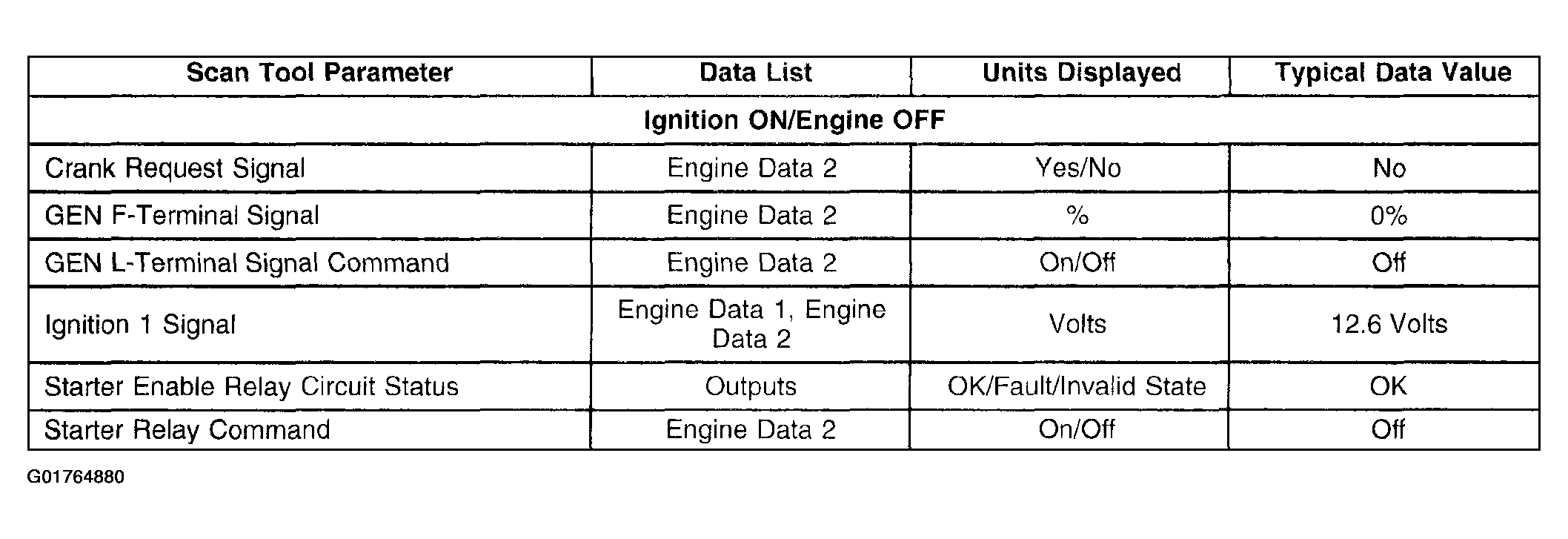

Fig 3: Identifying LG8 Powertrain Control Module (PCM) Scan Tool Data

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying L36, L67 Powertrain Control Module (PCM) Scan Tool Data

Courtesy of GENERAL MOTORS CORP.
