Installation Procedure

  1. Install the battery tray.

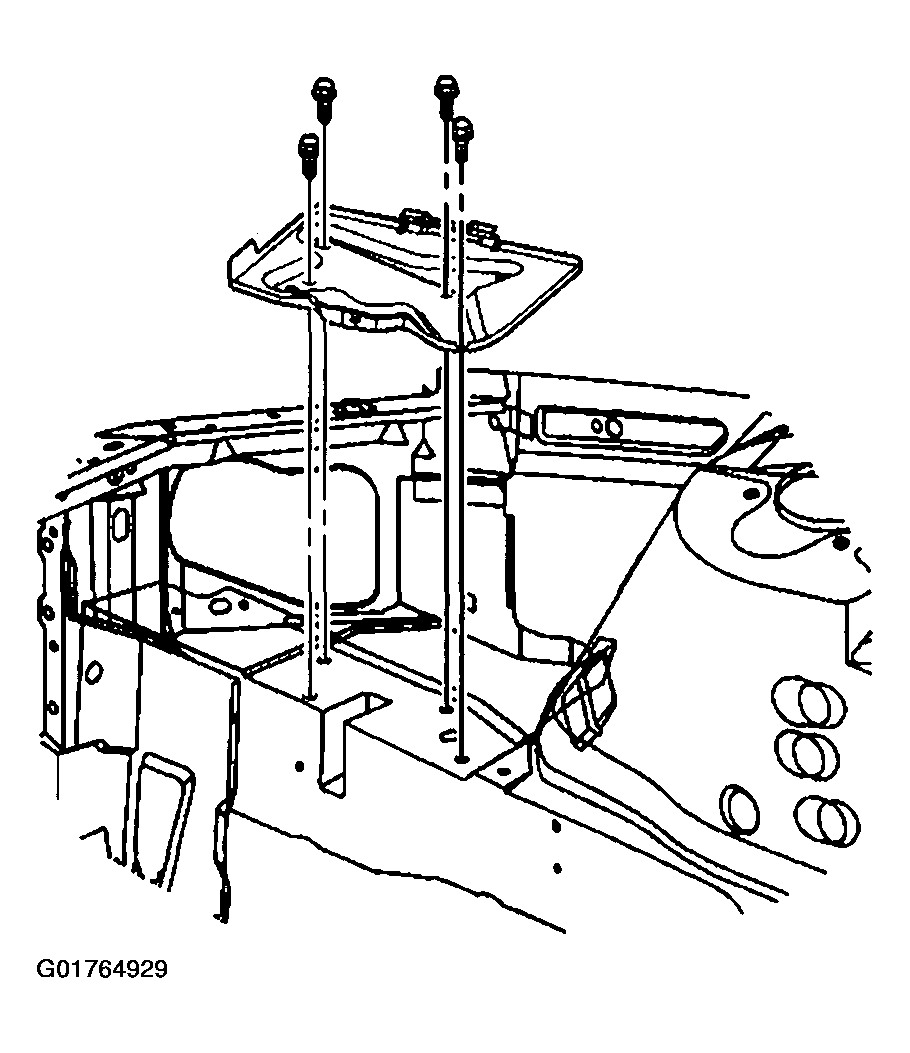

    Fig 1: Identifying Battery Tray
    G01764929Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the battery tray bolts. Tighten the battery tray bolts to 5 N.m (44 lb in).
  3. Install the battery. Refer to Battery Replacement .
  4. Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
