Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|
| A/T Shift Lock Control Switch (Regal) | Under center of console. |
| Brake Fluid Level Switch | In brake fluid reservoir. |
| Coolant Level Switch | Mounted on right side of radiator. |
| Cruise Control Release Switch | Under left side of dash, on brake pedal bracket. |
| Engine Oil Level Switch (3.1L VIN J) | On bottom of engine oil pan. |
| Engine Oil Level Switch (3.8L VIN K) | On bottom of engine oil pan. See Figure . |
| Engine Oil Level Switch (3.8L VIN 1) | On bottom of engine oil pan. See Figure . |
| Engine Oil Pressure (EOP) Switch (3.1L VIN J) | Lower left side of engine, above starter. See Figure . |
| Engine Oil Pressure (EOP) Switch (3.8L VIN K) | Lower right side of engine, above transaxle. |
| Engine Oil Pressure (EOP) Switch (3.8L VIN 1) | Lower right side of engine, above transaxle. |
| Park Brake Switch | On parking brake assembly. |

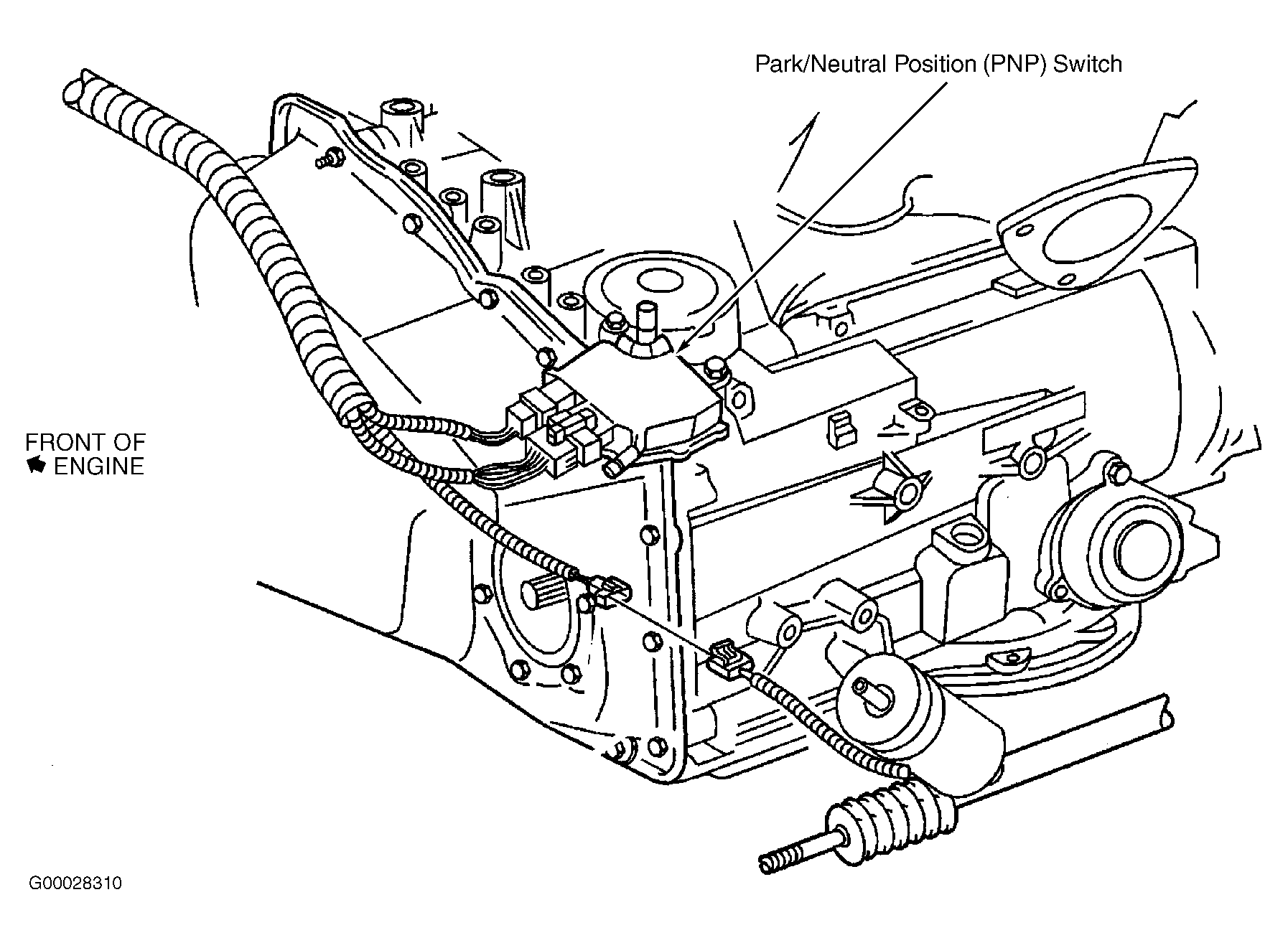

| Park/Neutral Position (PNP) Switch | On top right rear of transaxle. See Figure . |
| Seat Belt Switch (Driver) | Part of driver's seat belt assembly. |
| Stoplamp Switch | On brake pedal support bracket. |
| Windshield Washer Fluid Level Switch | Right front corner of engine compartment, in washer fluid reservoir. |
