Installation Procedure

  1. Position the horn assembly to the frame rail extension. Insert the horn anti-rotation tab into the slot on the frame rail.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the horn bracket bolt. Tighten the bolt to 15 N.m (11 lb ft).

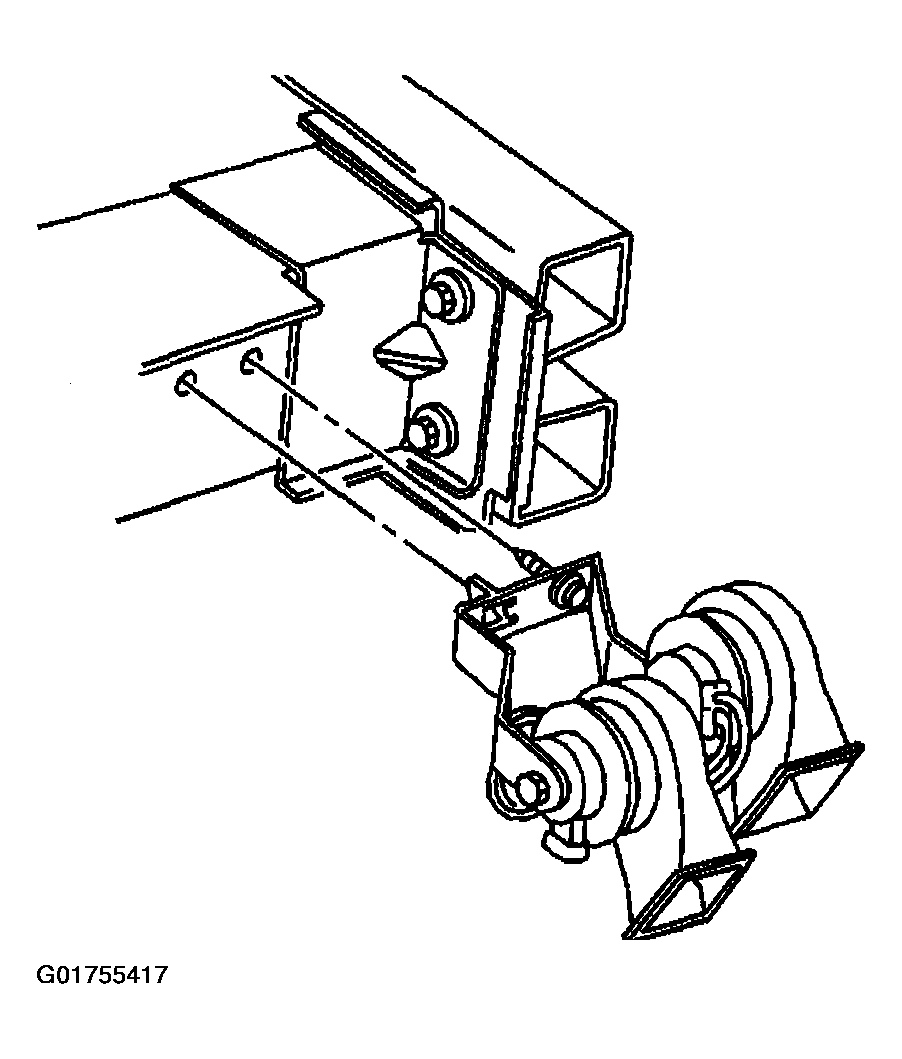

    3. Fig 1: Identifying Horns
    G01755417Courtesy of GENERAL MOTORS CORP.
  3. Connect the horn electrical connector.

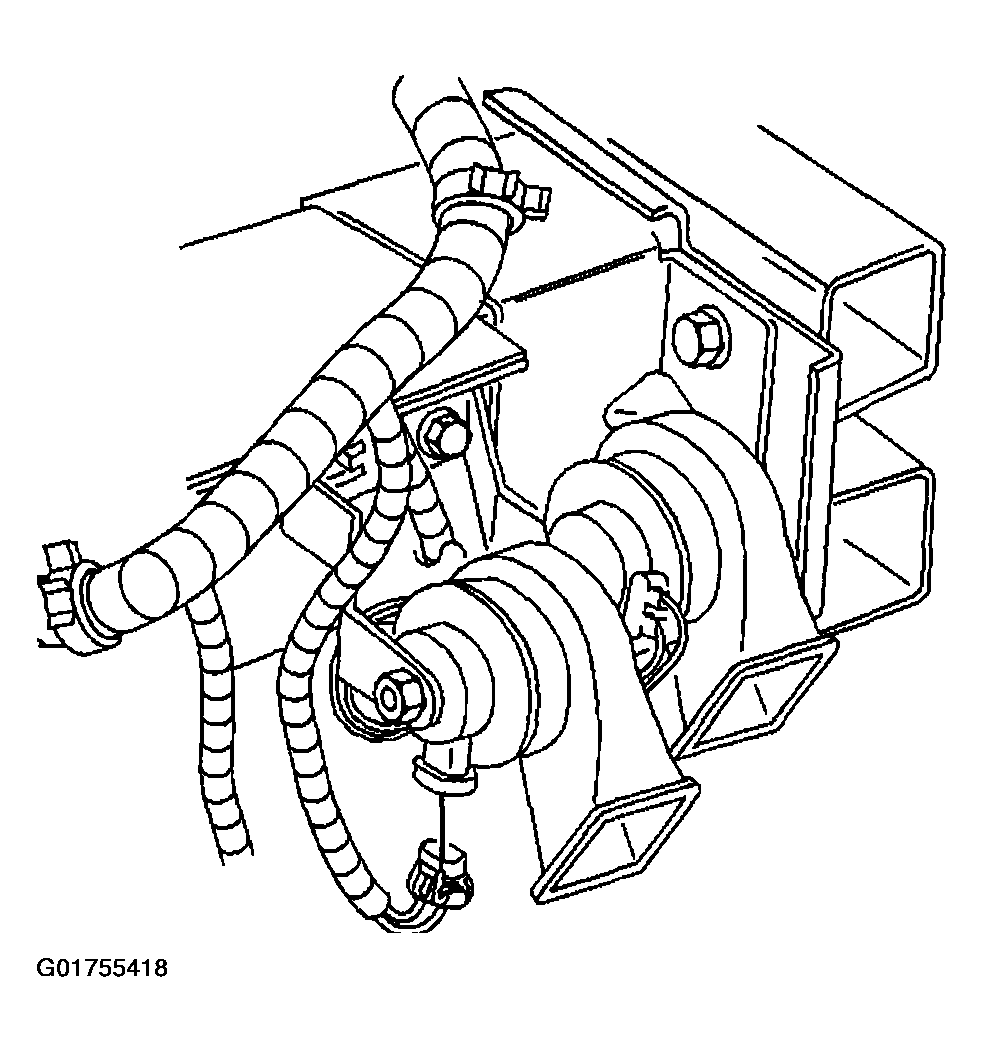

    4. Fig 2: Identifying Horn Electrical Connector
    G01755418Courtesy of GENERAL MOTORS CORP.
  4. Install the RH headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB AND/OR CORNERING, SIDEMARKER, PARK, TURN SIGNAL BULB REPLACEMENT .
  5. Close the hood.
