Installation Procedure

  1. Install the 3-way catalytic converter pipe hangers.
  2. Remove the support from the exhaust system and the vehicle.
  3. Inspect the exhaust system for underbody contact.
  4. Lower the vehicle.

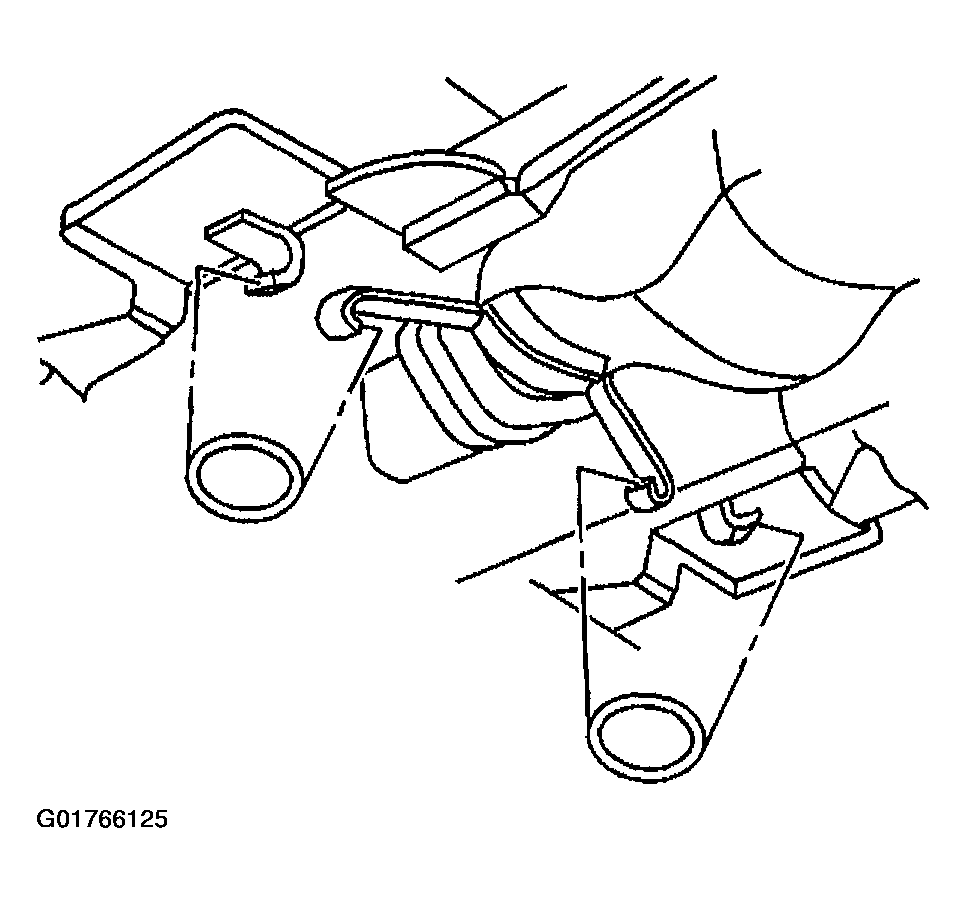

    Fig 1: 3-Way Catalytic Converter Pipe Hangers
    G01766125Courtesy of GENERAL MOTORS CORP.
