Removal Procedure

  1. Raise and support the vehicle.
  2. Support the exhaust system.
  3. Remove the 3-way catalytic converter pipe hangers.
  4. Inspect the 3-way catalytic converter brackets for serviceability. Repair or replace as necessary.

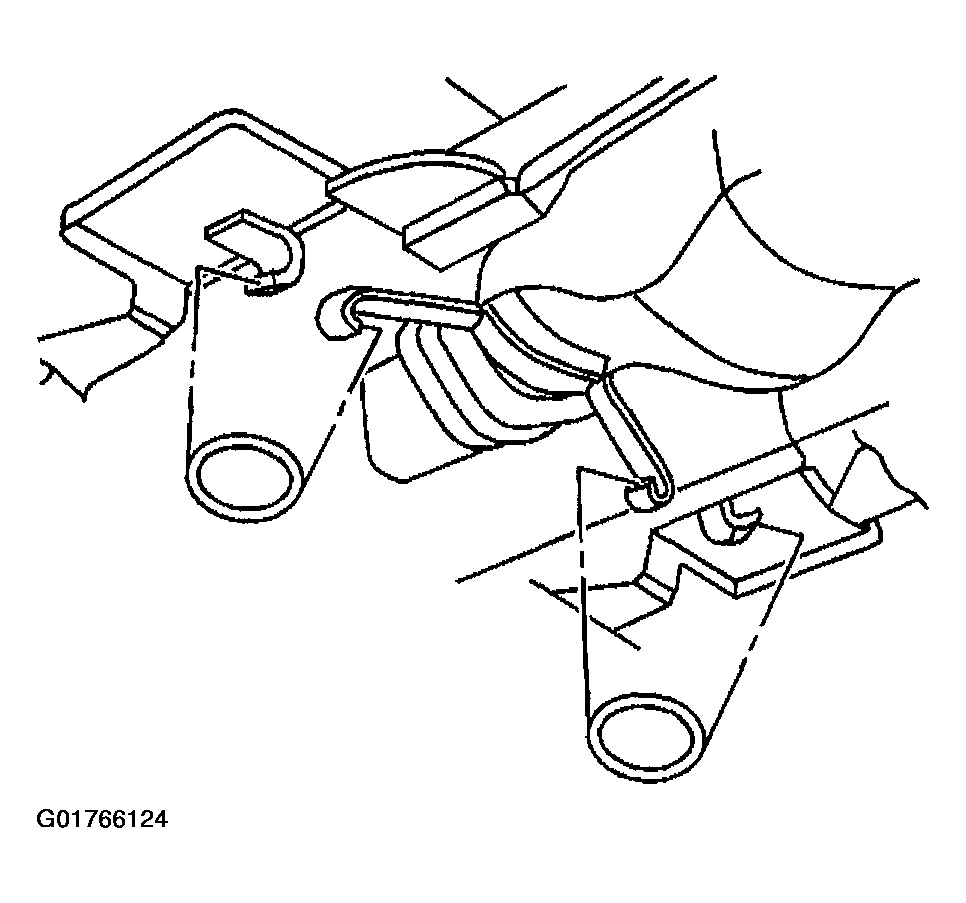

    Fig 1: 3-Way Catalytic Converter Pipe Hangers
    G01766124Courtesy of GENERAL MOTORS CORP.
