Installation Procedure

  1. Install the muffler to the support.
  2. Install the exhaust hanger insulators to the muffler.

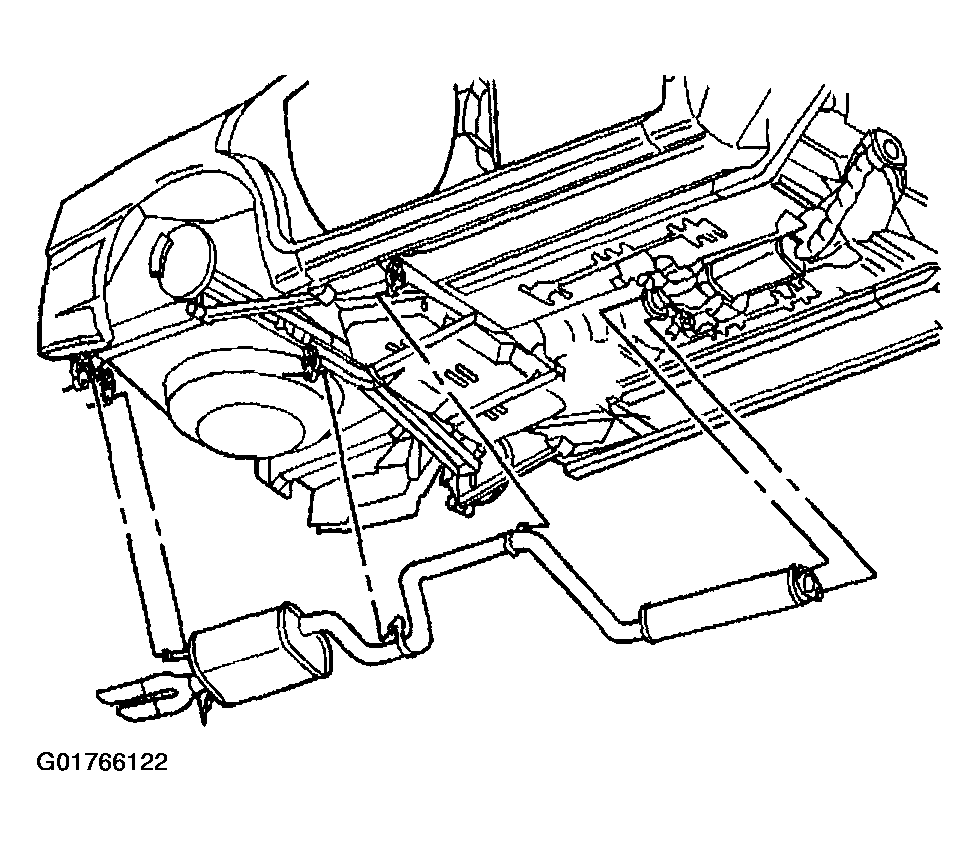

    Fig 1: Muffler
    G01766122Courtesy of GENERAL MOTORS CORP.
  3. Install the catalytic converter gasket.
  4. Install the catalytic converter bolts.

    Tighten

    Tighten the bolts to 45 N.m (33 lb ft).

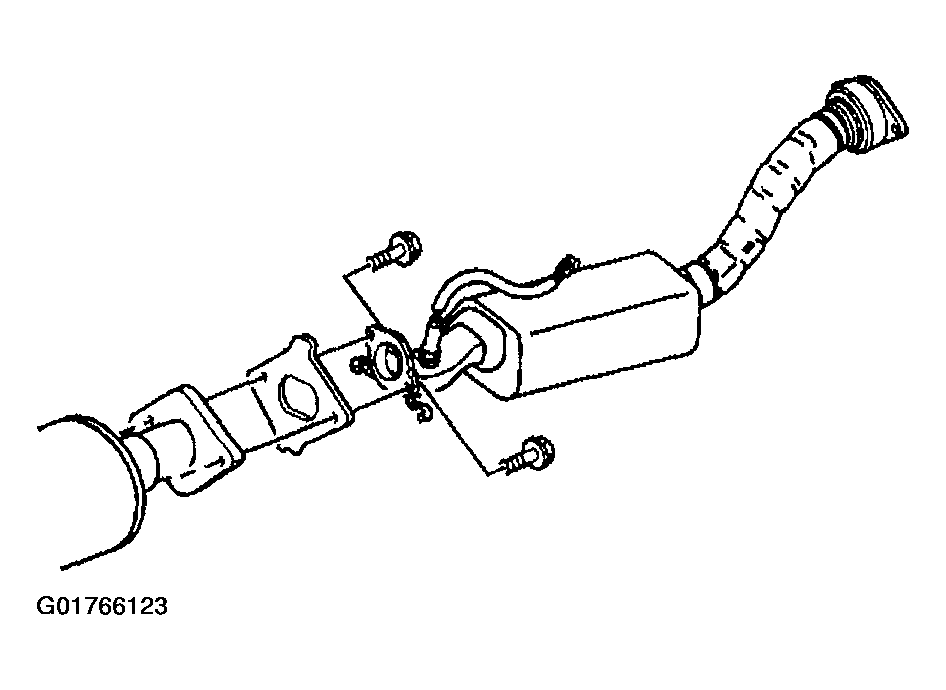

    Fig 2: Catalytic Converter Gasket
    G01766123Courtesy of GENERAL MOTORS CORP.
  5. Remove the support from the exhaust system.
  6. Inspect the exhaust system for leaks and underbody contact.
  7. Lower the vehicle.
