Component Locations

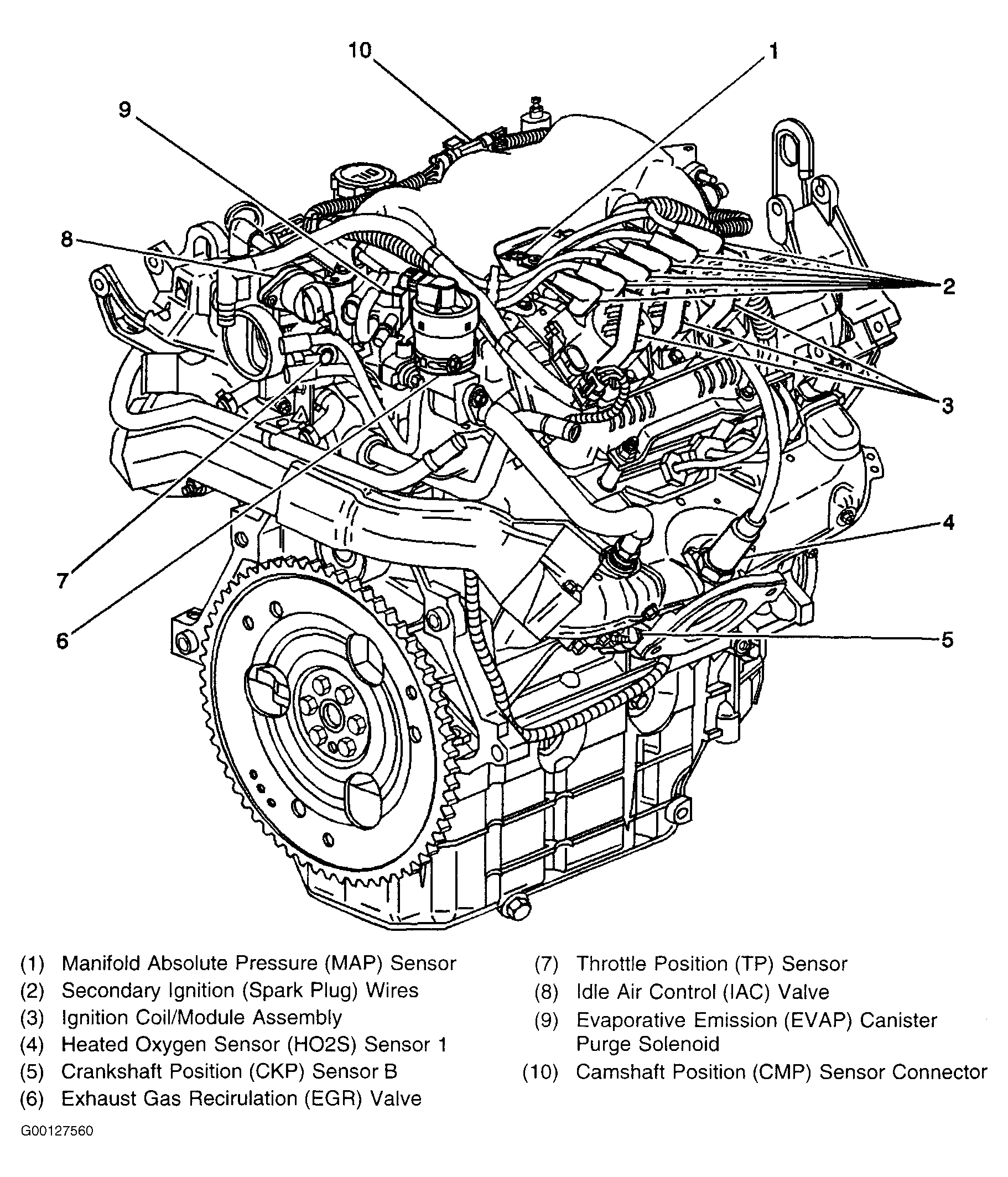

Fig 1: Locating Camshaft Position Sensor, Crankshaft Position Sensor "B", EGR Valve, EVAP Canister Purge Solenoid, HO2S 1, Idle Air Control Valve, Ignition Control Module, MAP Sensor & TP Sensor

Courtesy of GENERAL MOTORS CORP.

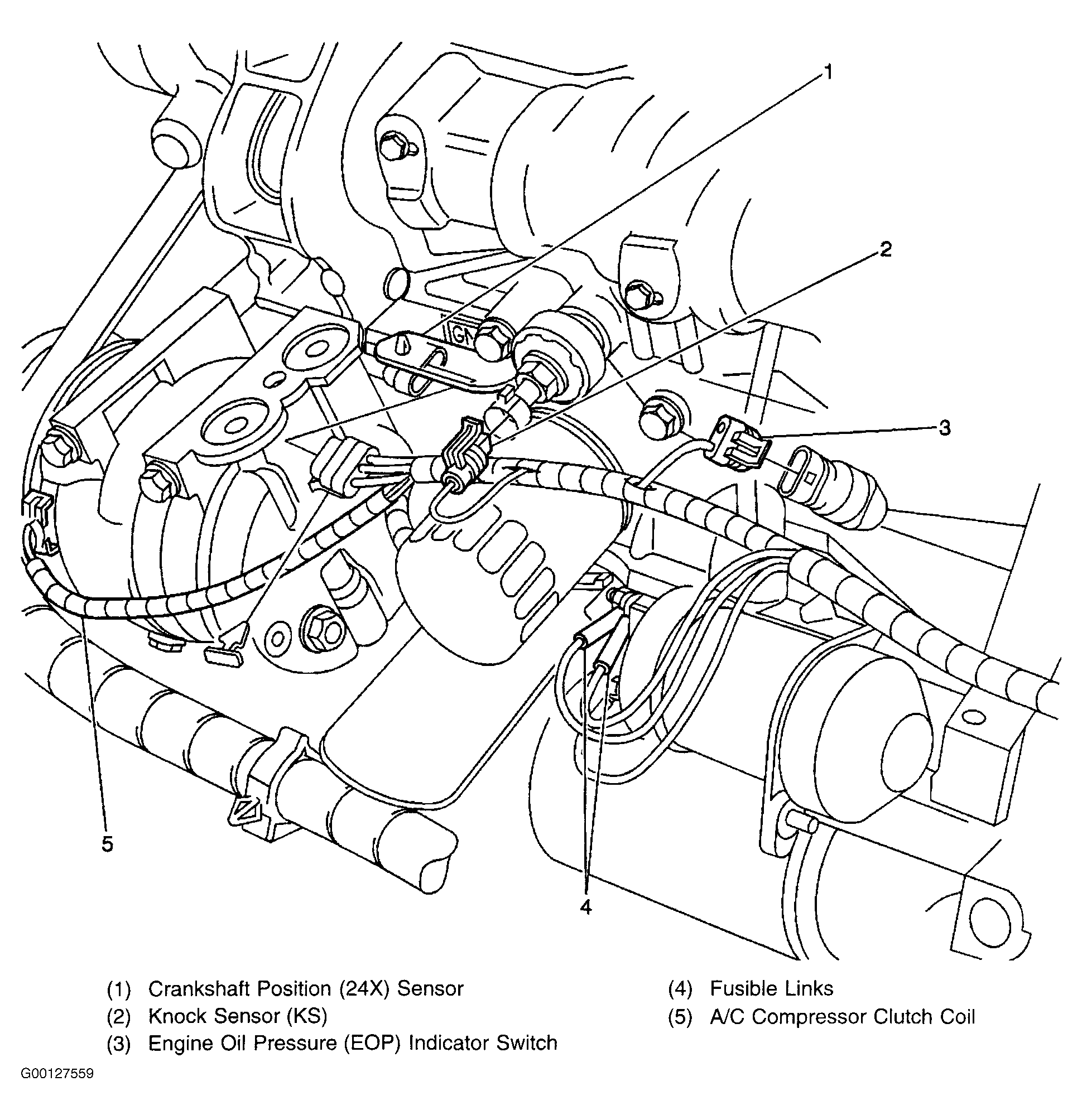

Fig 2: Locating Crankshaft Position Sensor, Engine Oil Pressure Indicator Switch & Knock Sensor

Courtesy of GENERAL MOTORS CORP.

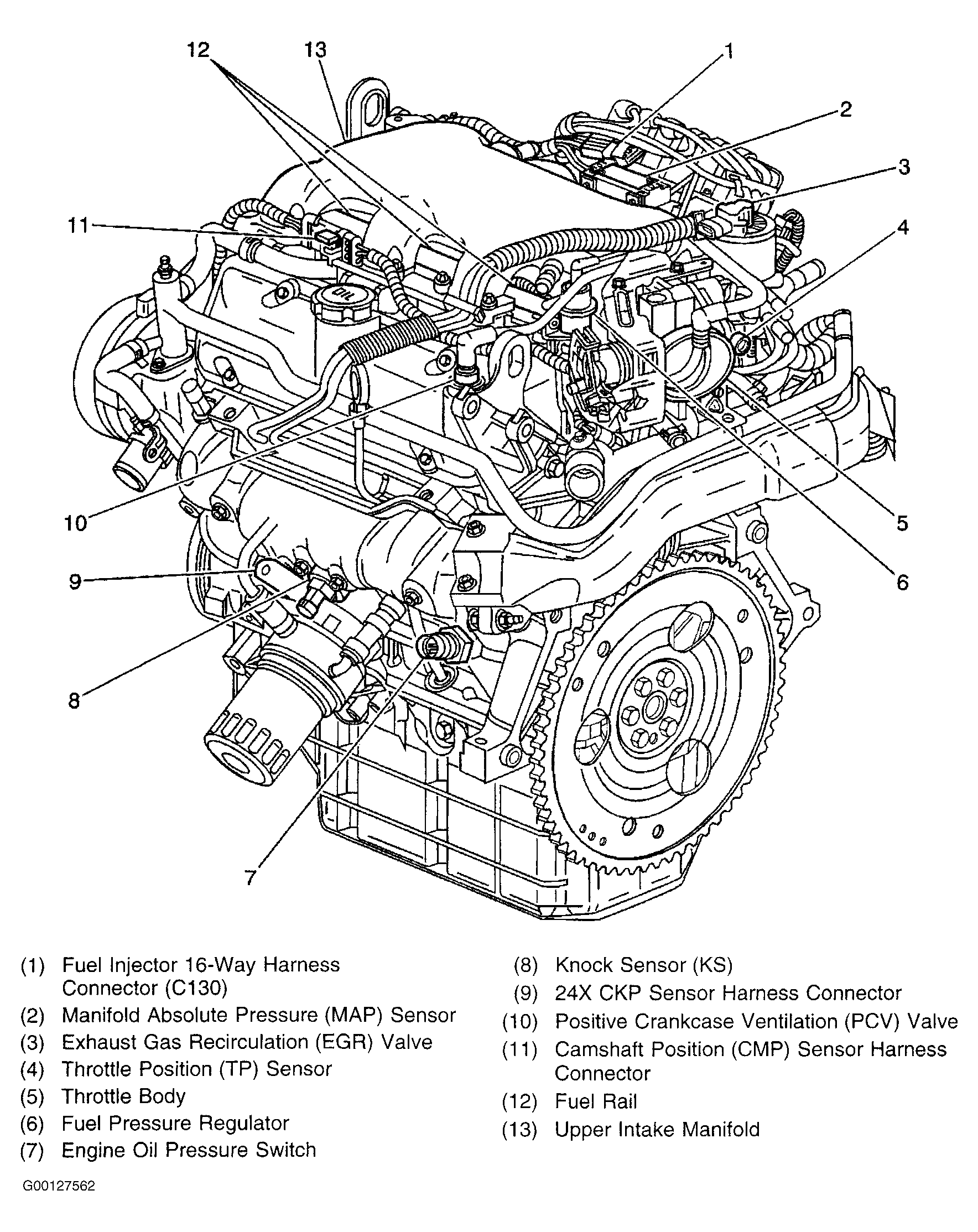

Fig 3: Locating EGR Valve, Engine Oil Pressure Switch, Knock Sensor, MAP Sensor, TP Sensor & Other Engine Control Components

Courtesy of GENERAL MOTORS CORP.

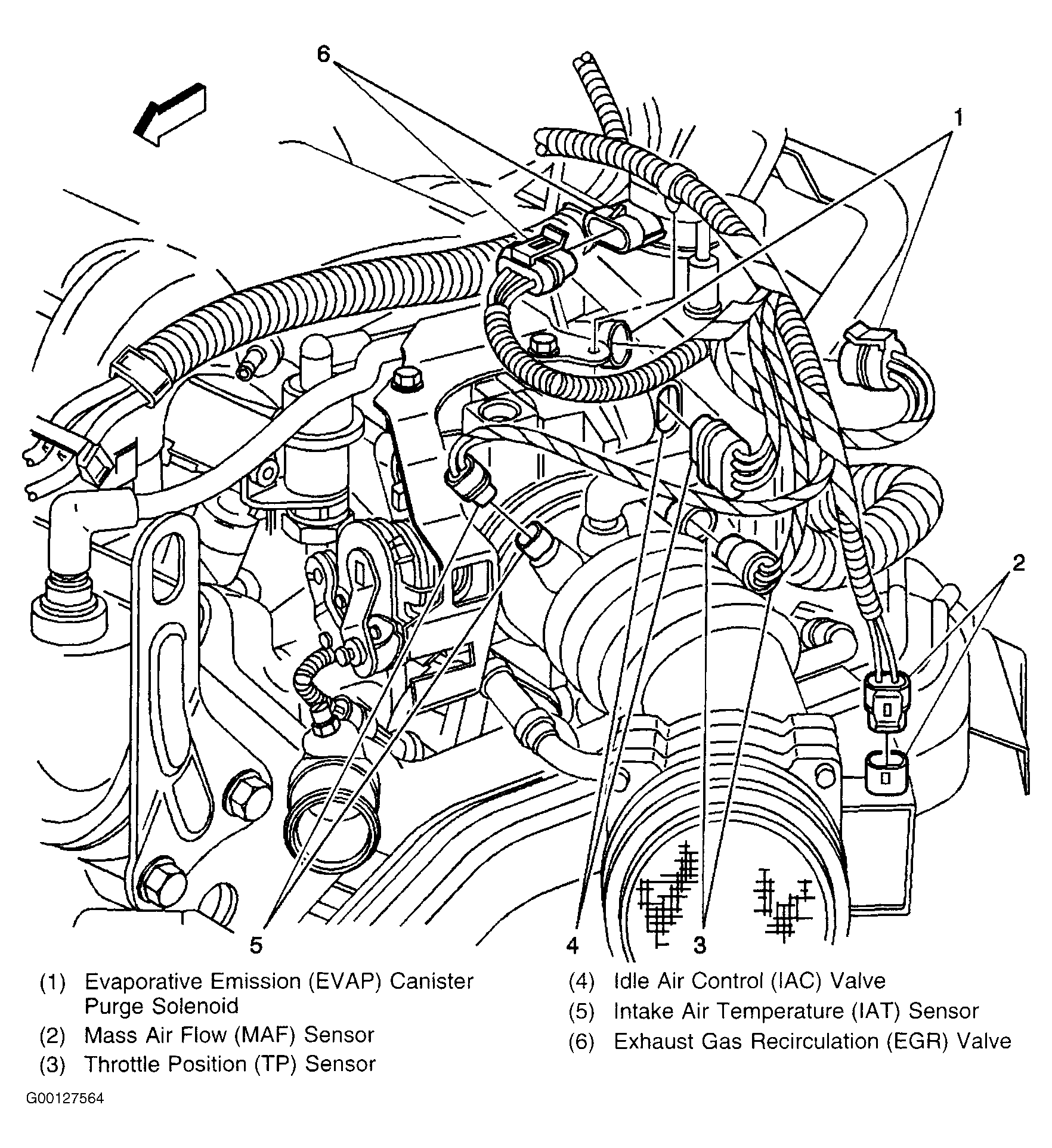

Fig 4: Locating EGR Valve, EVAP Canister Purge Solenoid, Idle Air Control Valve, Intake Air Temperature Sensor, Mass Airflow Sensor & TP Sensor

Courtesy of GENERAL MOTORS CORP.

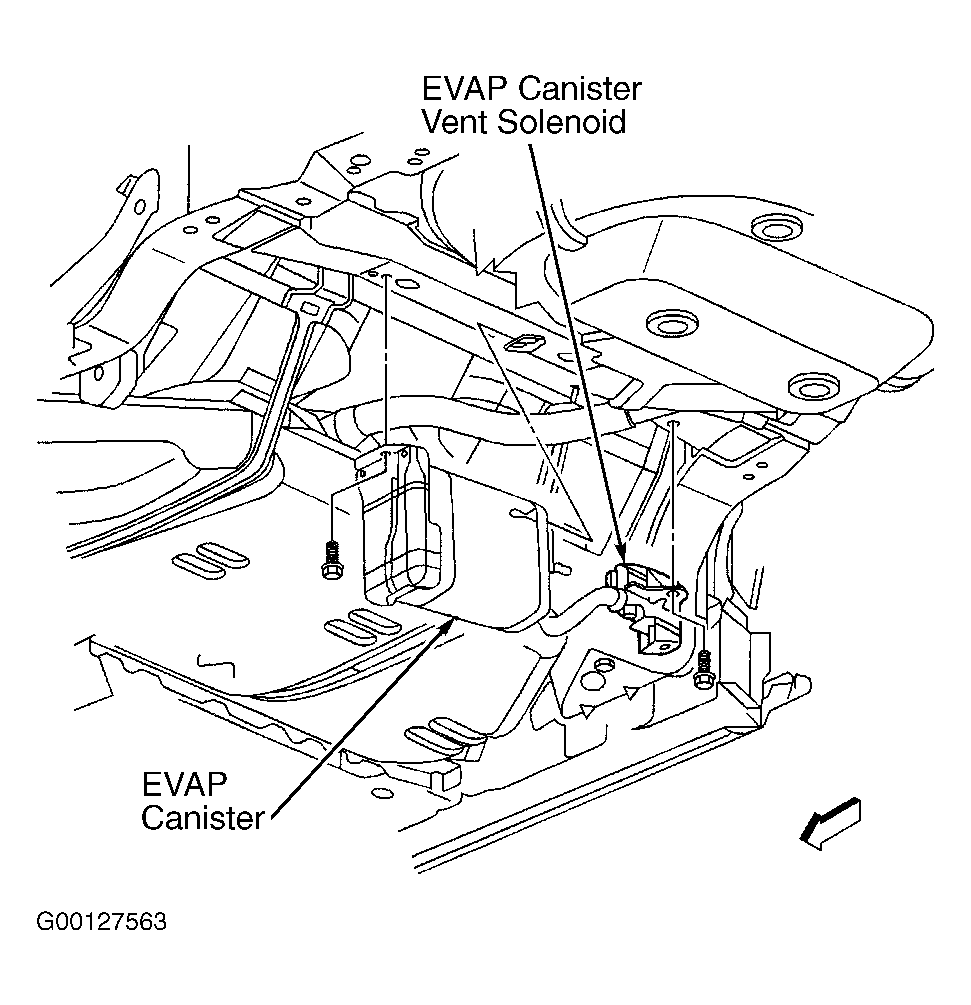

Fig 5: Locating EVAP Canister & EVAP Canister Vent Solenoid

Courtesy of GENERAL MOTORS CORP.

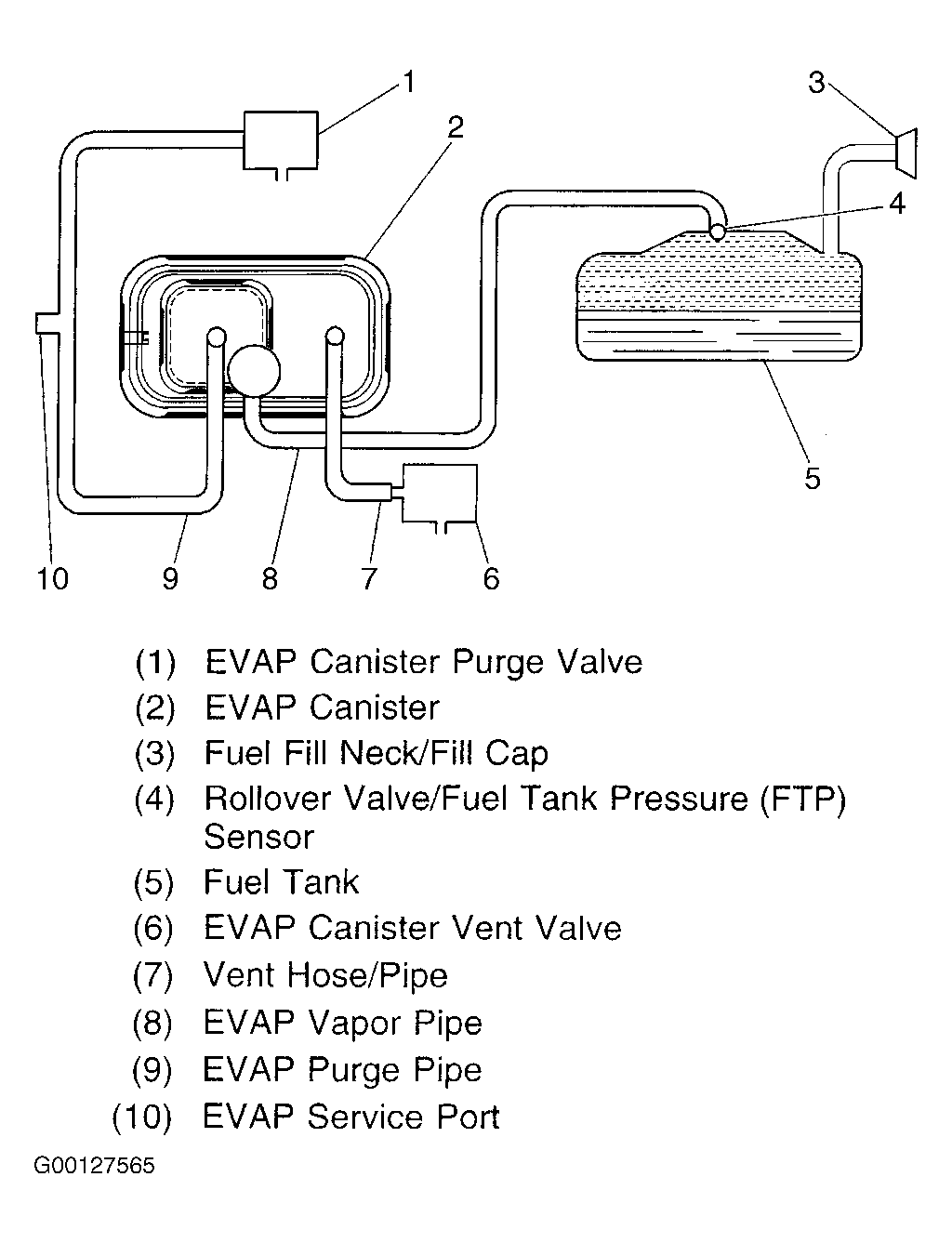

Fig 6: Locating & Identifying EVAP Components & Hose Routing

Courtesy of GENERAL MOTORS CORP.

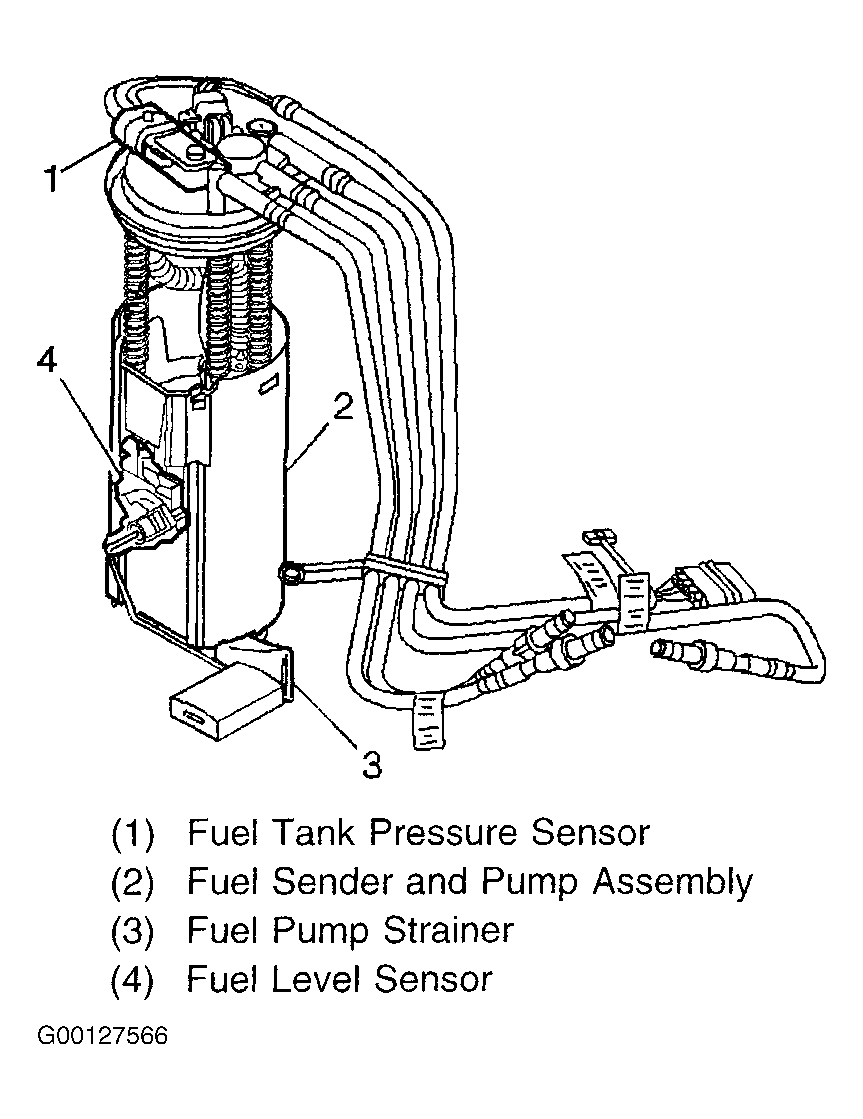

Fig 7: Locating Fuel Pump Assembly Components

Courtesy of GENERAL MOTORS CORP.
