Connector Identification

Fig 1: Identifying Camshaft Position Sensor Harness Connector Terminals

G00127573

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Crankshaft Position Sensor "A" Harness Connector Terminals

G00127574

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Crankshaft Position Sensor "B" Harness Connector Terminals

G00127575

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Engine Coolant Temperature Sensor Harness Connector Terminals (Century & Grand Prix)

G00127598

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Engine Coolant Temperature Harness Connector Terminals (Malibu)

G00127576

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying EVAP Canister Purge Solenoid Harness Connector Terminals (Century & Grand Prix)

G00127599

Courtesy of GENERAL MOTORS CORP.

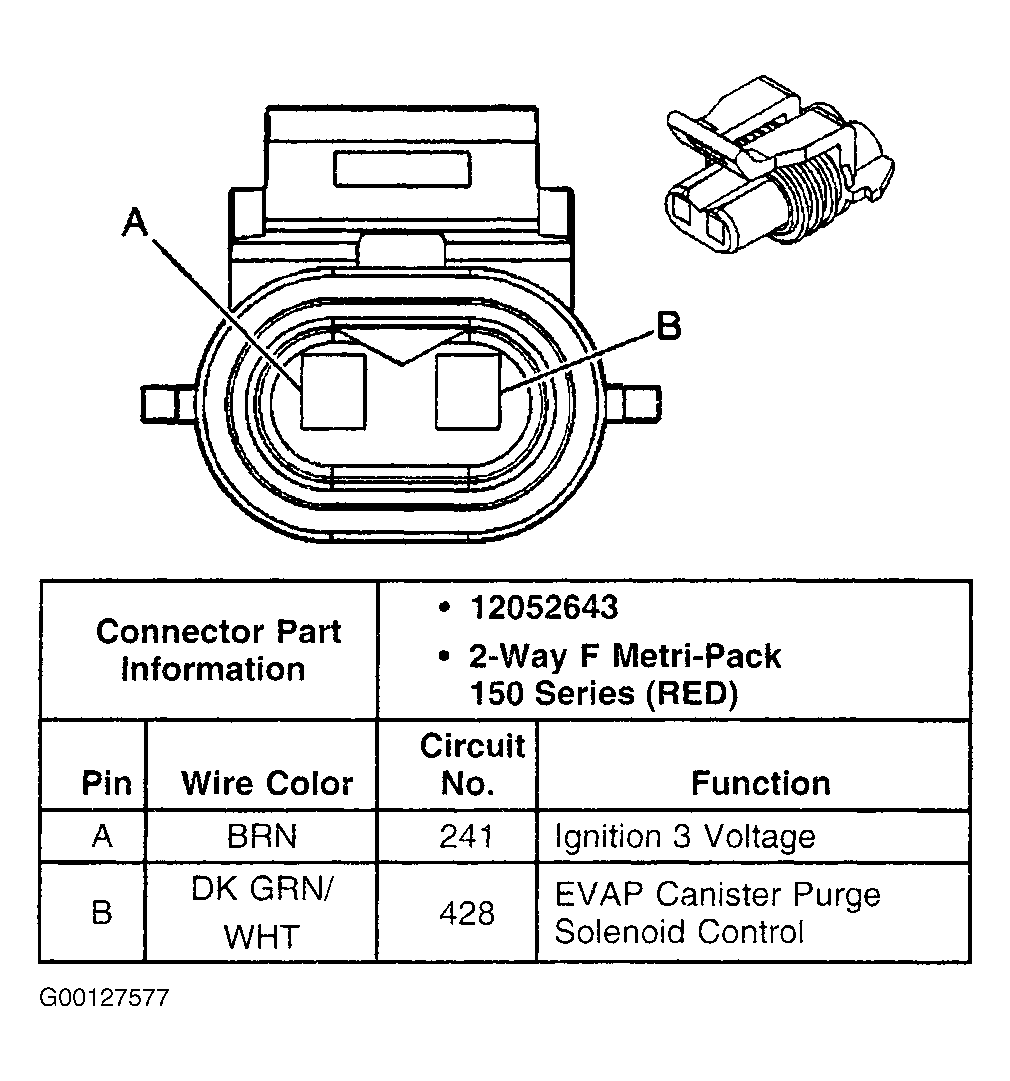

Fig 7: Identifying EVAP Canister Purge Solenoid Harness Connector Terminals (Malibu)

G00127577

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying EVAP Canister Vent Solenoid Harness Connector Terminals (Century & Grand Prix)

G00127600

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying EVAP Canister Vent Solenoid Harness Connector Terminals (Malibu)

G00127578

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying EGR Valve Harness Connector Terminals (Century & Grand Prix)

G00127601

Courtesy of GENERAL MOTORS CORP.

Fig 11: Identifying EGR Valve Harness Connector Terminals (Malibu)

G00127579

Courtesy of GENERAL MOTORS CORP.

Fig 12: Identifying Fuel Injectors Harness Connector Terminals

G00127580

Courtesy of GENERAL MOTORS CORP.

Fig 13: Identifying Fuel Pump & Sender Assembly Harness Connector Terminals

G00127581

Courtesy of GENERAL MOTORS CORP.

Fig 14: Identifying Fuel Tank Pressure Sensor Harness Connector Terminals (Century & Grand Prix)

G00127602

Courtesy of GENERAL MOTORS CORP.

Fig 15: Identifying Fuel Tank Pressure Sensor Harness Connector Terminals (Malibu)

G00127582

Courtesy of GENERAL MOTORS CORP.

Fig 16: Identifying HO2S 1 Harness Connector Terminals (Century & Grand Prix)

G00127603

Courtesy of GENERAL MOTORS CORP.

Fig 17: Identifying HO2S 1 Harness Connector Terminals (Malibu)

G00127583

Courtesy of GENERAL MOTORS CORP.

Fig 18: Identifying HO2S 2 Fuel Harness Connector Terminals (Century & Grand Prix)

G00127604

Courtesy of GENERAL MOTORS CORP.

Fig 19: Identifying HO2S 2 Harness Connector Terminals (Malibu)

G00127584

Courtesy of GENERAL MOTORS CORP.

Fig 20: Identifying Idle Air Control Valve Harness Connector Terminals

G00127585

Courtesy of GENERAL MOTORS CORP.

Fig 21: Identifying Ignition Control Module Harness Connector C1 Terminals

G00127586

Courtesy of GENERAL MOTORS CORP.

Fig 22: Identifying Ignition Control Module Harness Connector C2 Terminals (Century & Grand Prix)

G00127605

Courtesy of GENERAL MOTORS CORP.

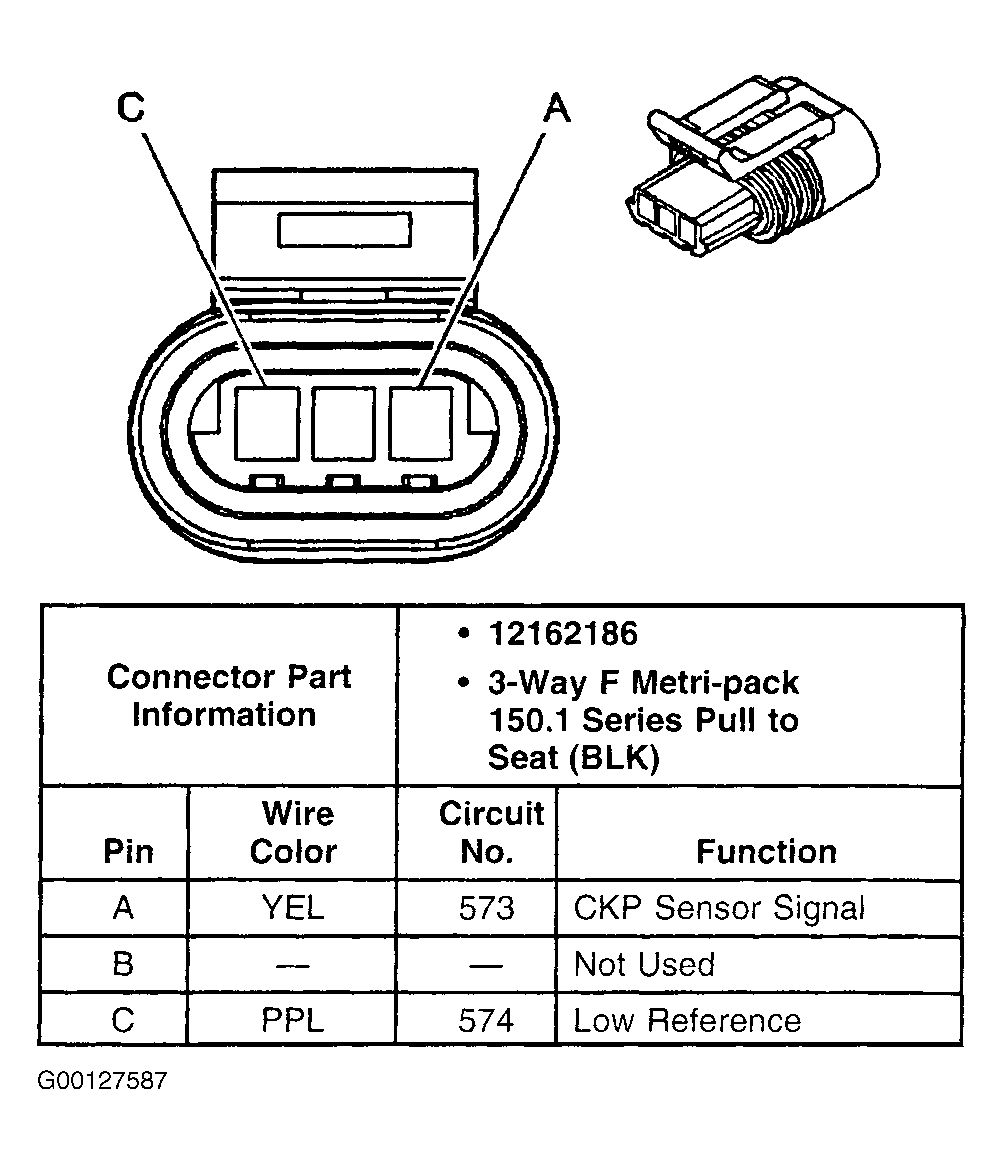

Fig 23: Identifying Ignition Control Module Harness Connector C2 Terminals (Malibu)

G00127587

Courtesy of GENERAL MOTORS CORP.

Fig 24: Identifying Ignition Control Module Harness Connector C3 Terminals (Grand Prix)

G00127606

Courtesy of GENERAL MOTORS CORP.

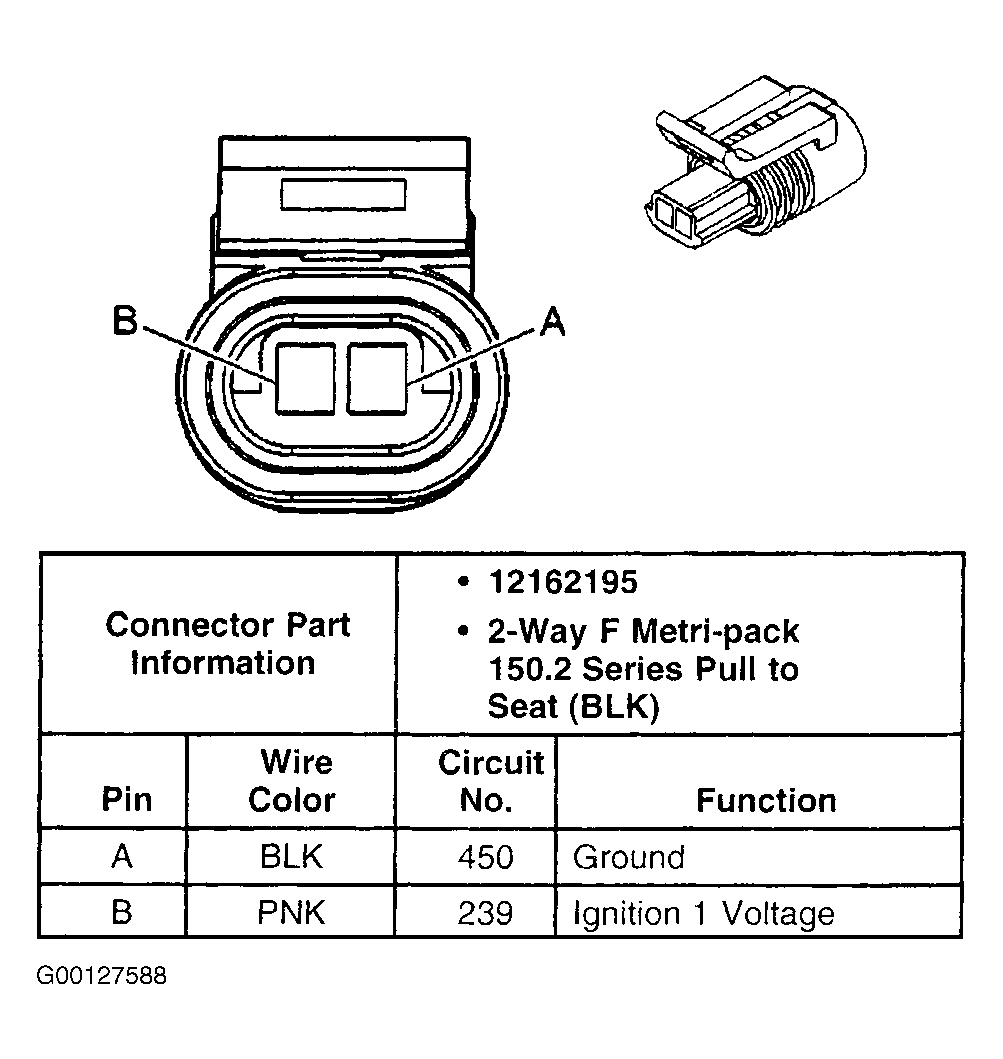

Fig 25: Identifying Ignition Control Module Harness Connector C3 Terminals (Malibu)

G00127588

Courtesy of GENERAL MOTORS CORP.

Fig 26: Identifying Intake Air Temperature Harness Connector Terminals

G00127589

Courtesy of GENERAL MOTORS CORP.

Fig 27: Identifying Knock Sensor Harness Connector Terminals (Century & Malibu Only)

G00127590

Courtesy of GENERAL MOTORS CORP.

Fig 28: Identifying MAP Sensor Harness Connector Terminals

G00127591

Courtesy of GENERAL MOTORS CORP.

Fig 29: Identifying Mass Airflow Sensor Harness Connector Terminals (Century)

G00127607

Courtesy of GENERAL MOTORS CORP.

Fig 30: Identifying Mass Airflow Sensor Harness Connector Terminals (Grand Prix & Malibu)

G00127592

Courtesy of GENERAL MOTORS CORP.

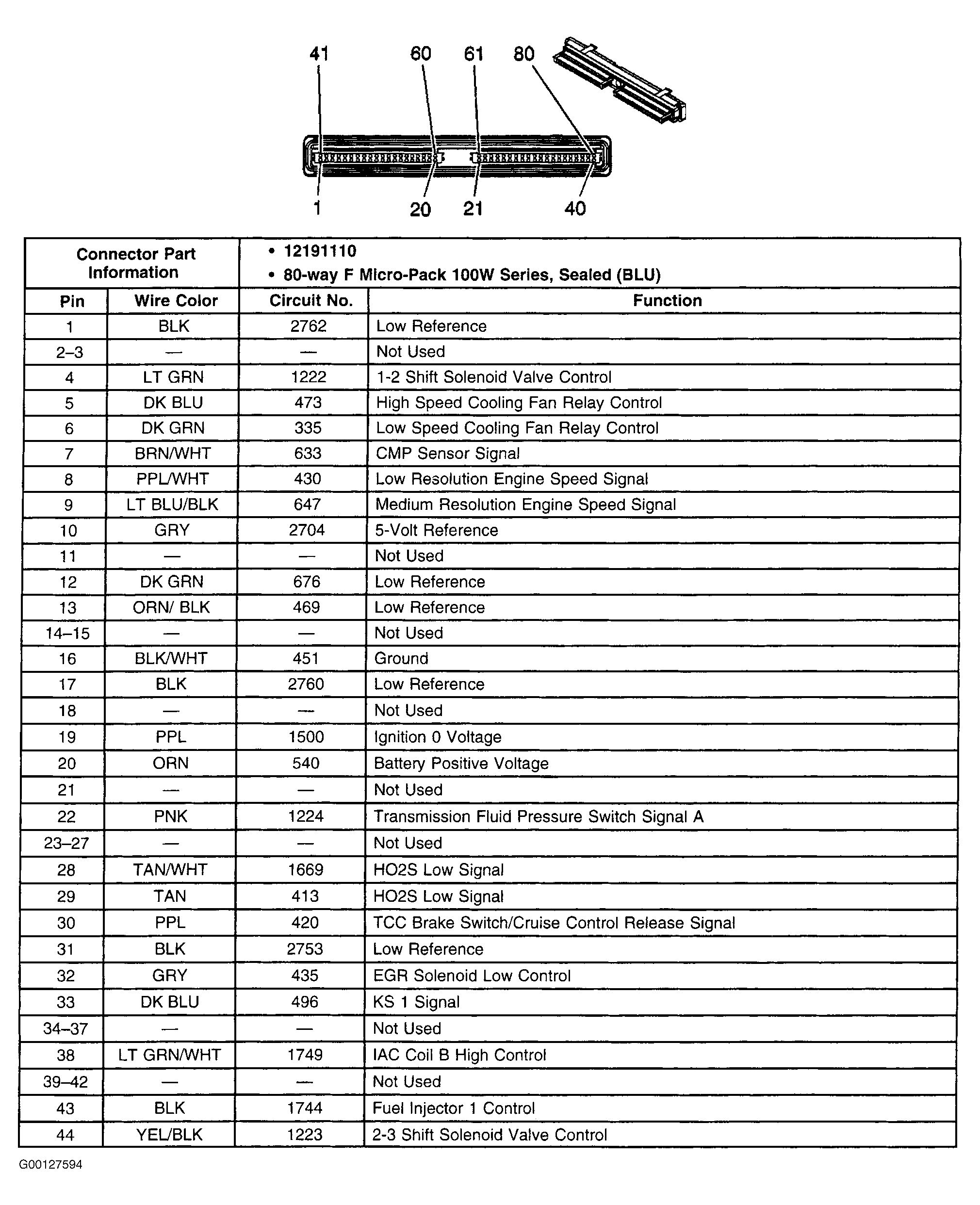

Fig 31: Identifying PCM Harness Connector C1 Terminals (Century & Grand Prix - 1 Of 2)

G00127594

Courtesy of GENERAL MOTORS CORP.

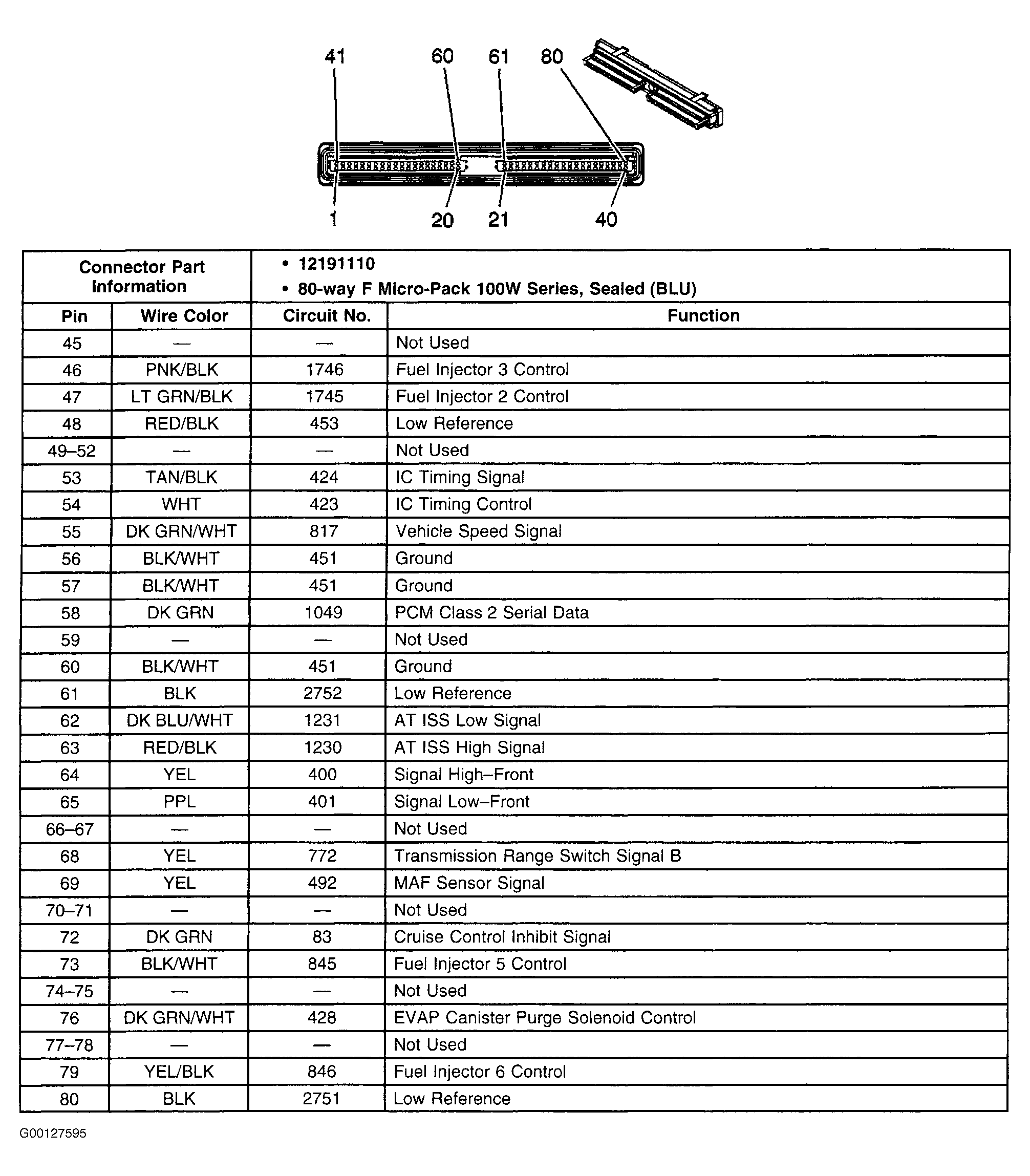

Fig 32: Identifying PCM Harness Connector C1 Terminals (Century & Grand Prix - 2 Of 2)

G00127595

Courtesy of GENERAL MOTORS CORP.

Fig 33: Identifying PCM Harness Connector C2 Terminals (Century & Grand Prix - 1 Of 2)

G00127596

Courtesy of GENERAL MOTORS CORP.

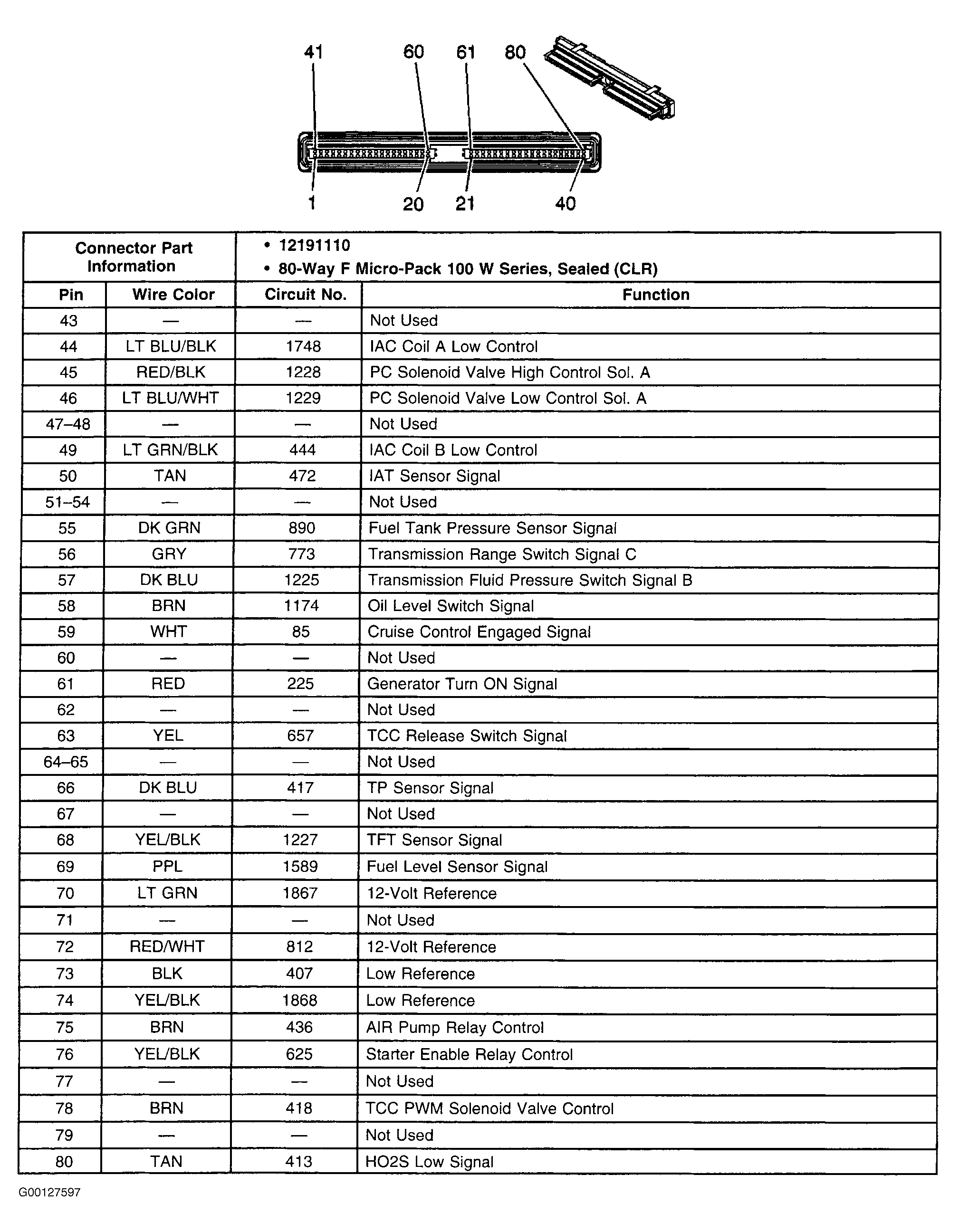

Fig 34: Identifying PCM Harness Connector C2 Terminals (Century & Grand Prix - 2 Of 2)

G00127597

Courtesy of GENERAL MOTORS CORP.

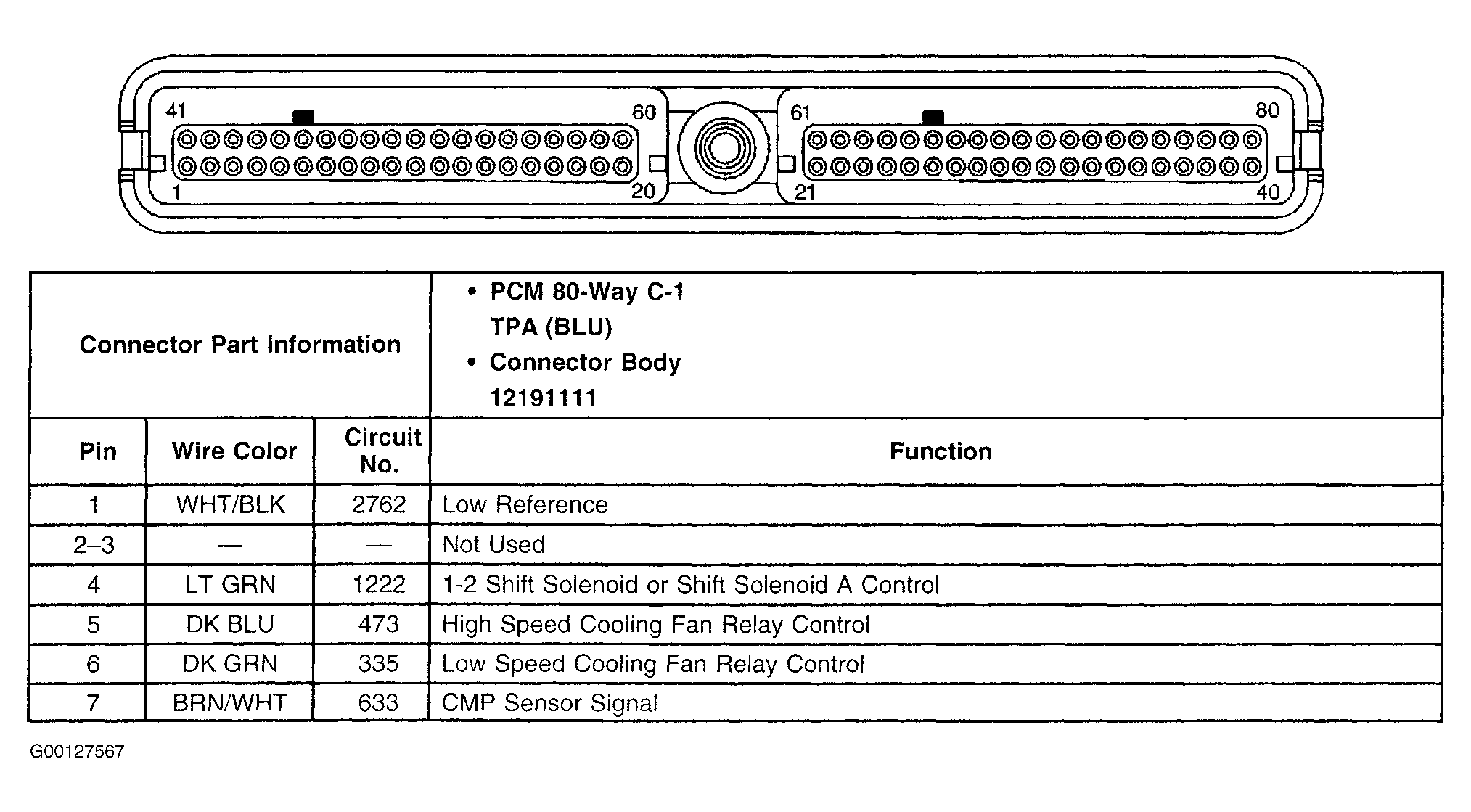

Fig 35: Identifying PCM Harness Connector C1 Terminals (Malibu - 1 Of 3)

G00127567

Courtesy of GENERAL MOTORS CORP.

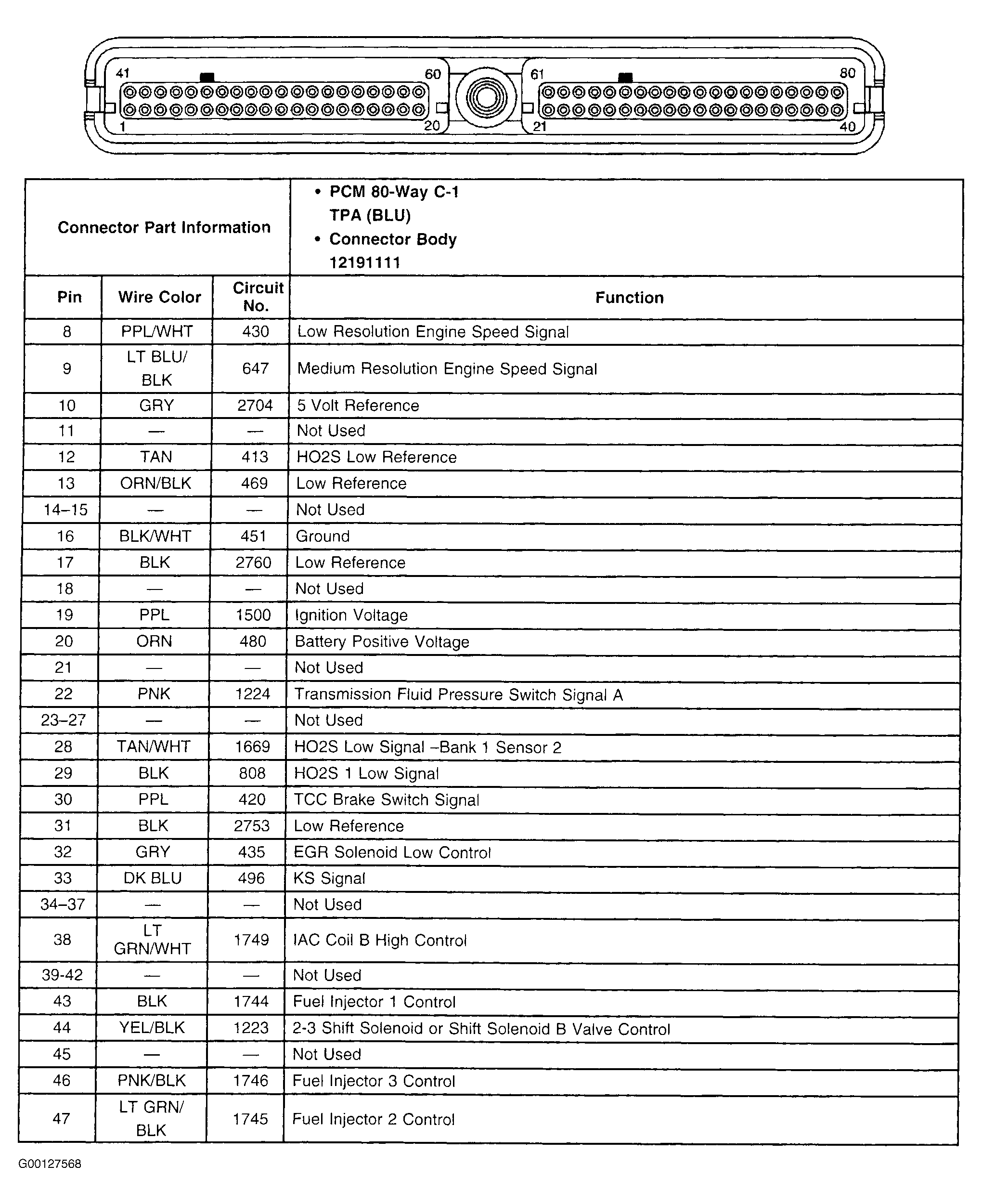

Fig 36: Identifying PCM Harness Connector C1 Terminals (Malibu - 2 Of 3)

G00127568

Courtesy of GENERAL MOTORS CORP.

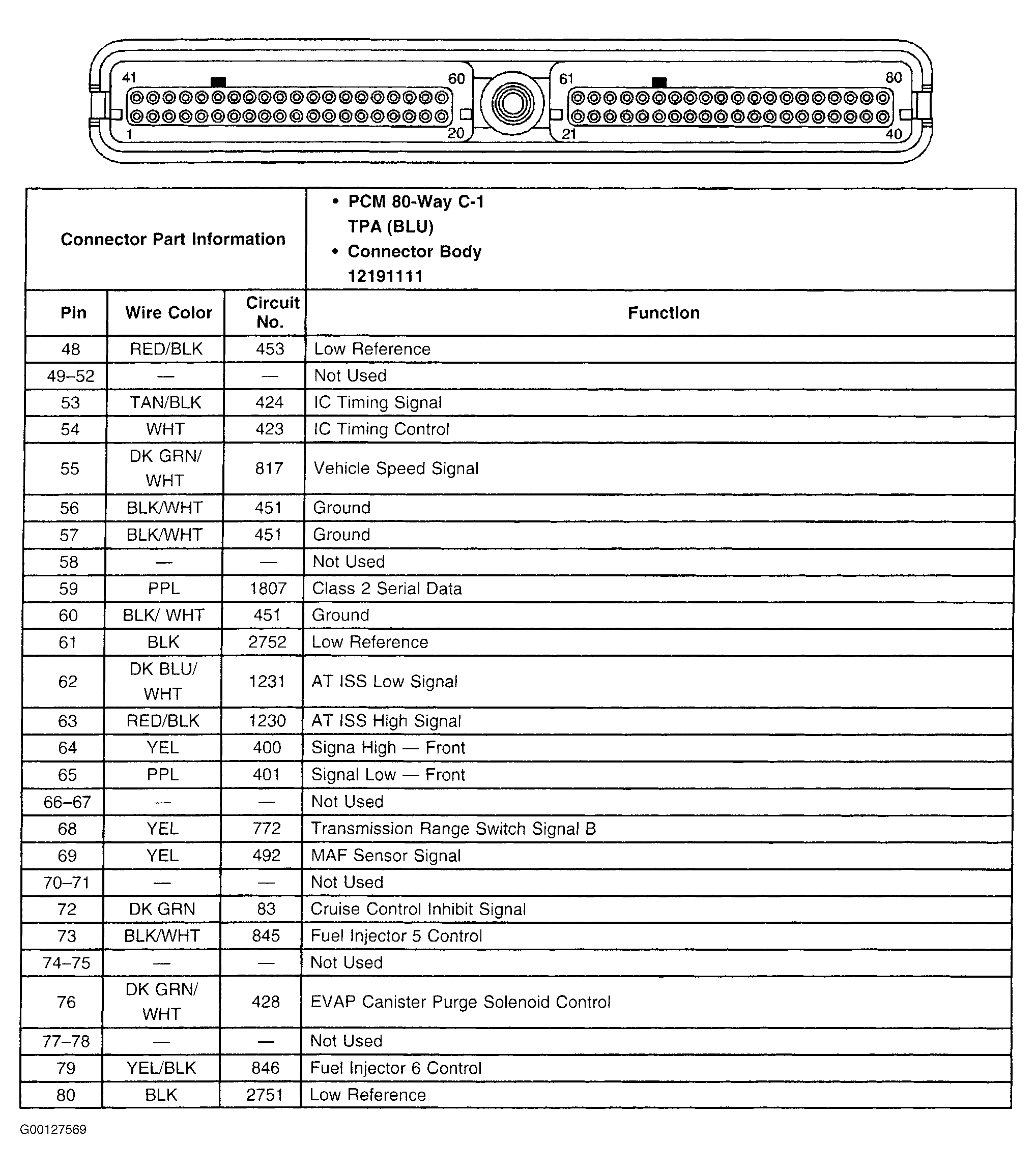

Fig 37: Identifying PCM Harness Connector C1 Terminals (Malibu - 3 Of 3)

G00127569

Courtesy of GENERAL MOTORS CORP.

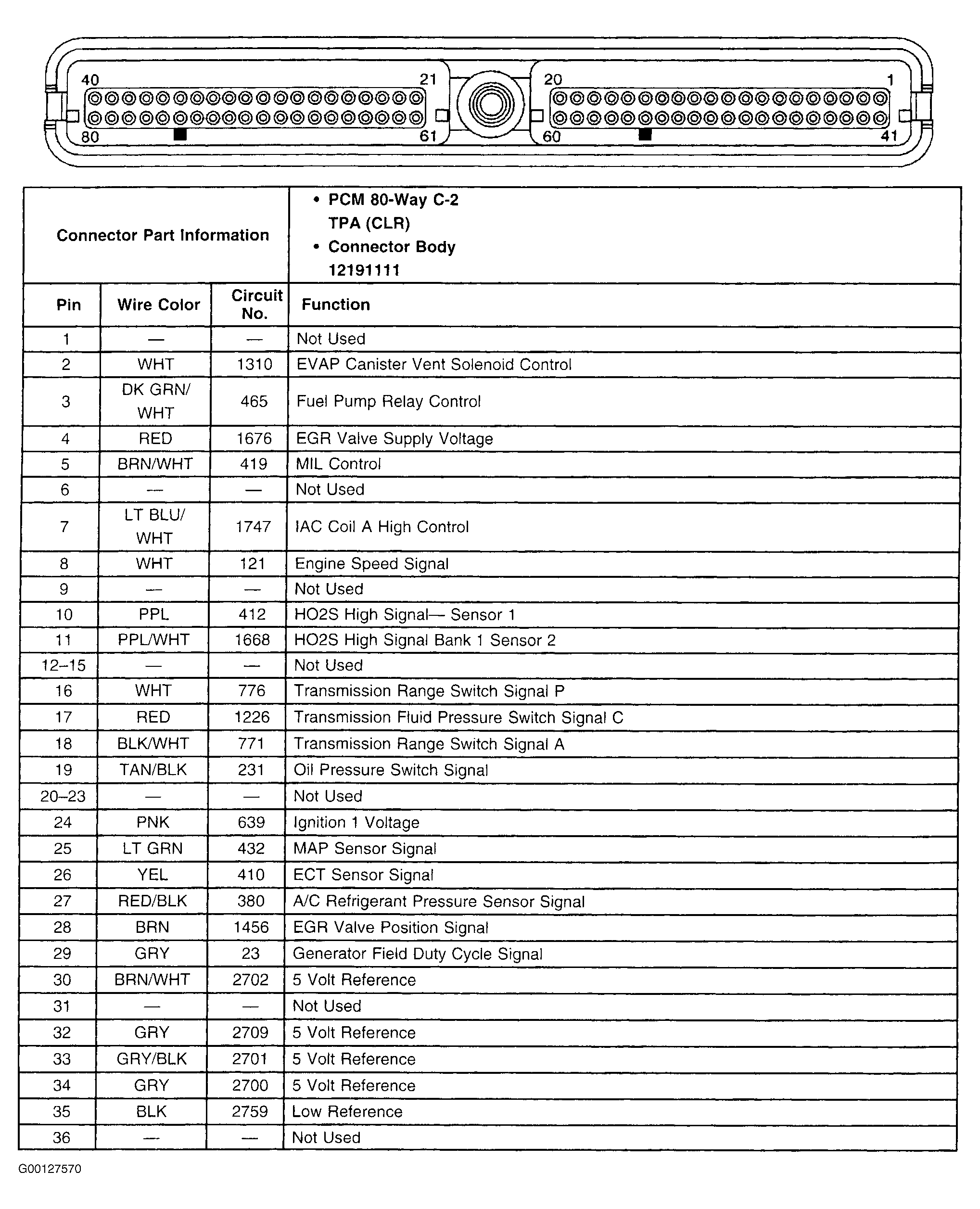

Fig 38: Identifying PCM Harness Connector C2 Terminals (Malibu - 1 Of 3)

G00127570

Courtesy of GENERAL MOTORS CORP.

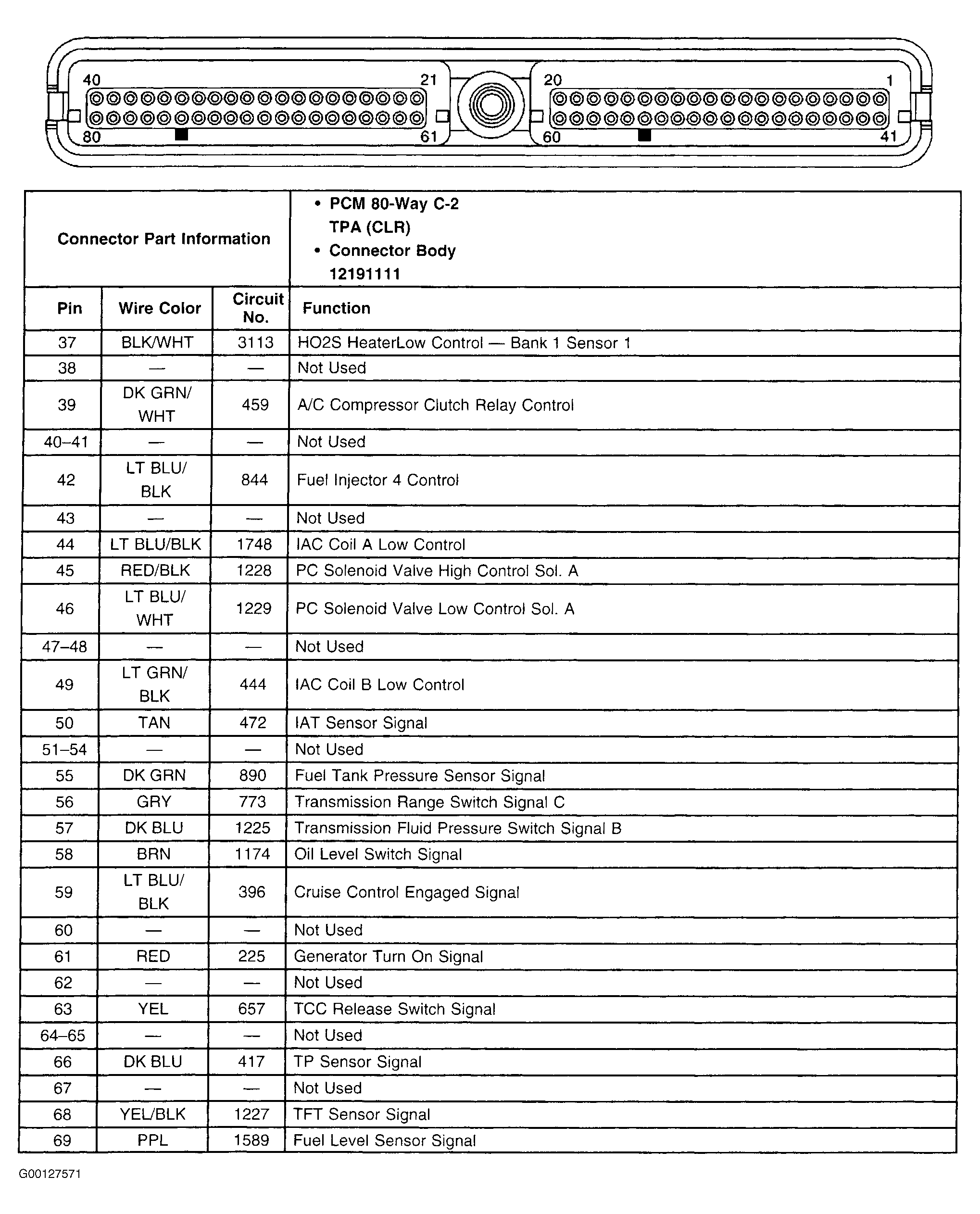

Fig 39: Identifying PCM Harness Connector C2 Terminals (Malibu - 2 Of 3)

G00127571

Courtesy of GENERAL MOTORS CORP.

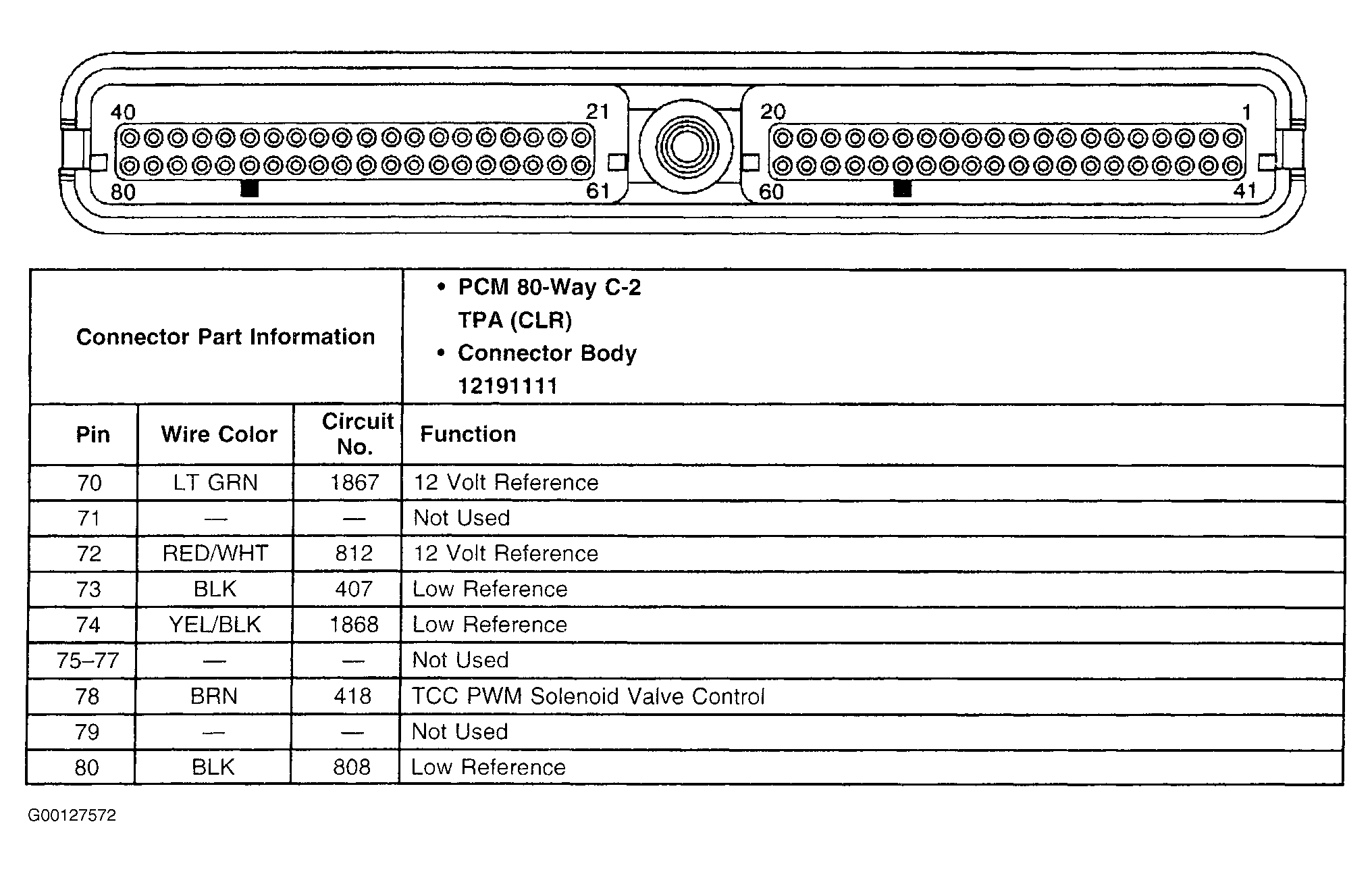

Fig 40: Identifying PCM Harness Connector C2 Terminals (Malibu - 3 Of 3)

G00127572

Courtesy of GENERAL MOTORS CORP.

Fig 41: Identifying Secondary Air Injection Pump Harness Connector Terminals (Grand Prix Only)

G00127608

Courtesy of GENERAL MOTORS CORP.

Fig 42: Identifying Secondary Air Injection Pump Relay Harness Connector Terminals (Grand Prix Only)

G00127609

Courtesy of GENERAL MOTORS CORP.

Fig 43: Identifying Throttle Position Sensor Harness Connector Terminals

G00127593

Courtesy of GENERAL MOTORS CORP.
