Installation Procedure

Important:  Verify that the release lever at the top of the bracket is in the full up position.

1. Position shoulder belt guide adjuster bracket to the center pillar.

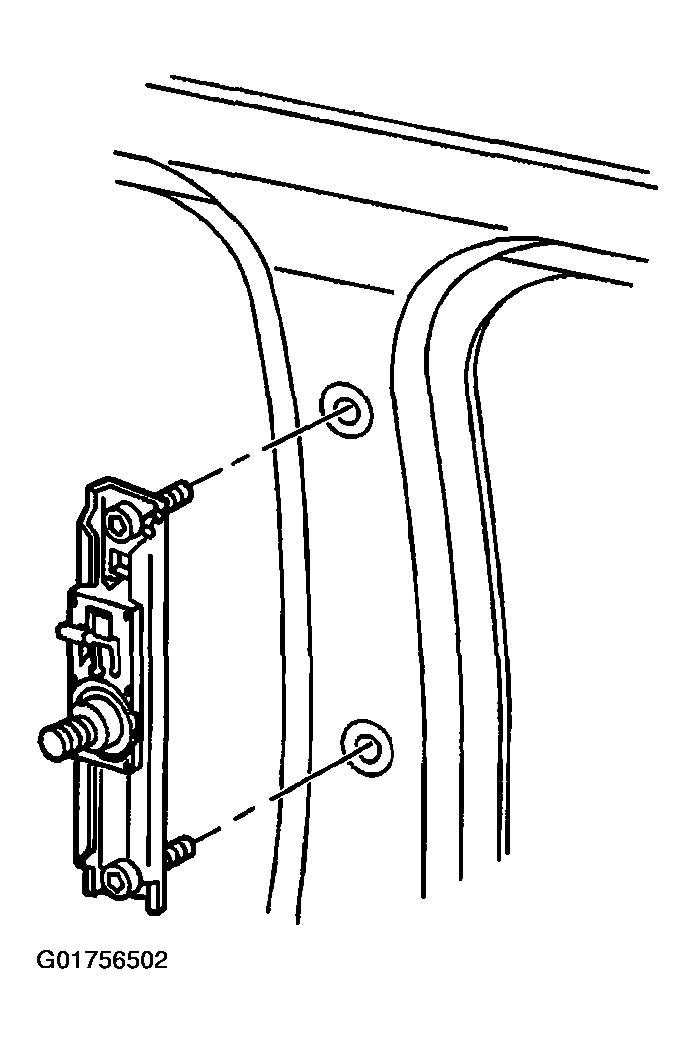

   Fig 1: Identifying Front Shoulder Belt Guide Adjuster

   Courtesy of GENERAL MOTORS CORP.
   NOTE: Refer to FASTENER NOTICE .
2. Install the shoulder belt guide belt adjuster bracket bolts. Tighten the shoulder belt guide adjuster bracket bolts to 42 N.m (31 ft lbs).
3. Install the upper center pillar trim panel. Refer to TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR .
4. Install the guide loop to the guide adjuster bracket.
5. Install the guide loop nut. Tighten the guide loop nut to 42 N.m (31 ft lbs).
6. Close the guide loop cover.
