Transaxle Mount: Installation

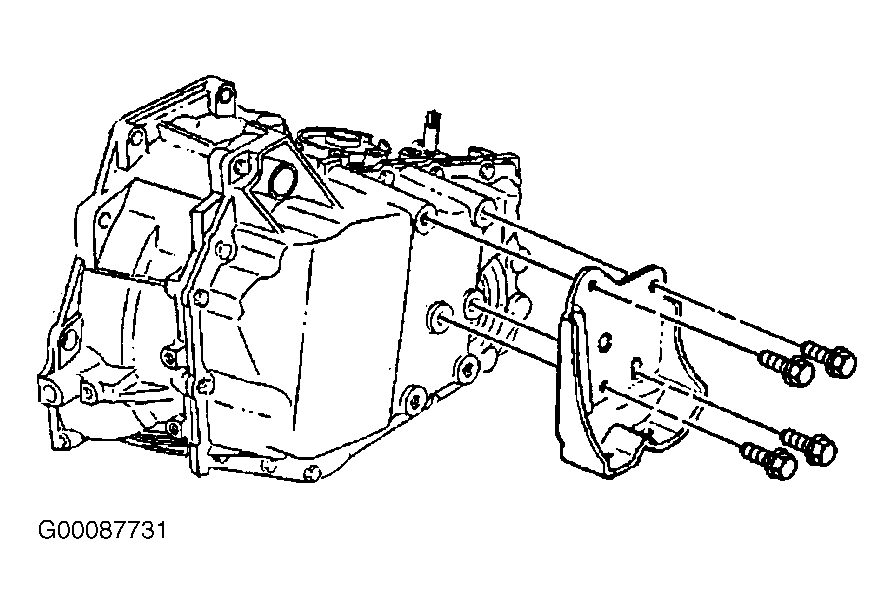

  1. Position the transaxle mount to the frame. Hand start the transaxle mount bracket to transaxle bolts. Install the transaxle bracket bolts. See Figure . Start with the forward lower bolt and work clockwise to tighten the transaxle bracket bolts to specification. See TORQUE SPECIFICATIONS  .

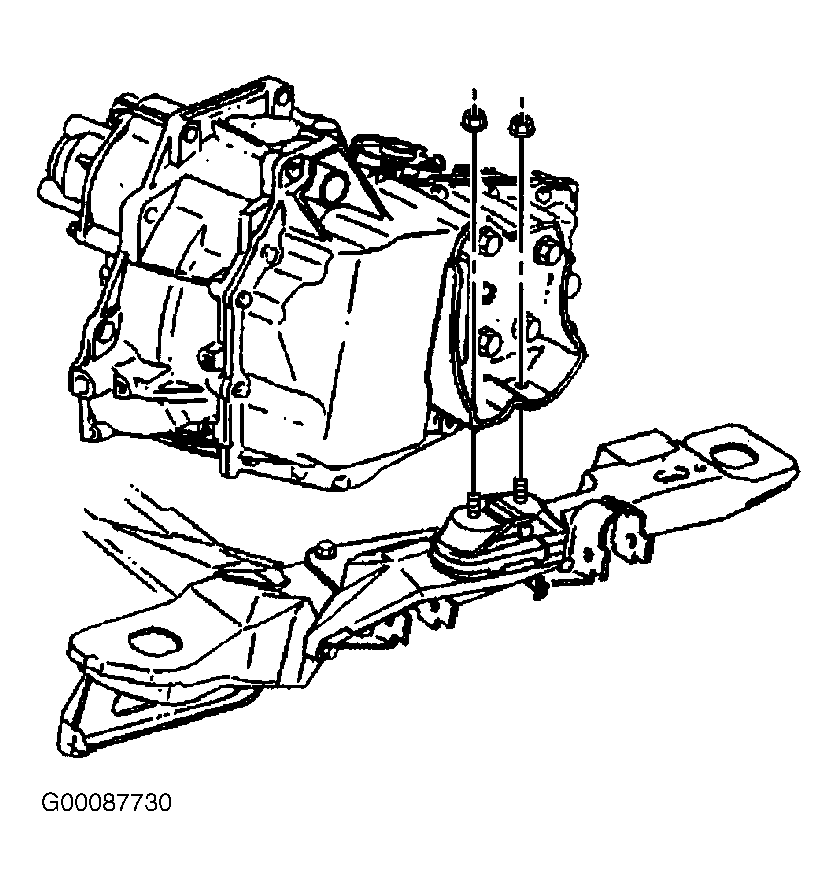

  2. Remove the support from the transaxle. Install the transaxle bracket to the transaxle mount upper nuts. See Figure . Tighten the transaxle mount upper nuts to specification. See TORQUE SPECIFICATIONS  .
  3. Install the left engine splash shield. Install the left front tire and wheel. Lower the vehicle.
