Connector Identification

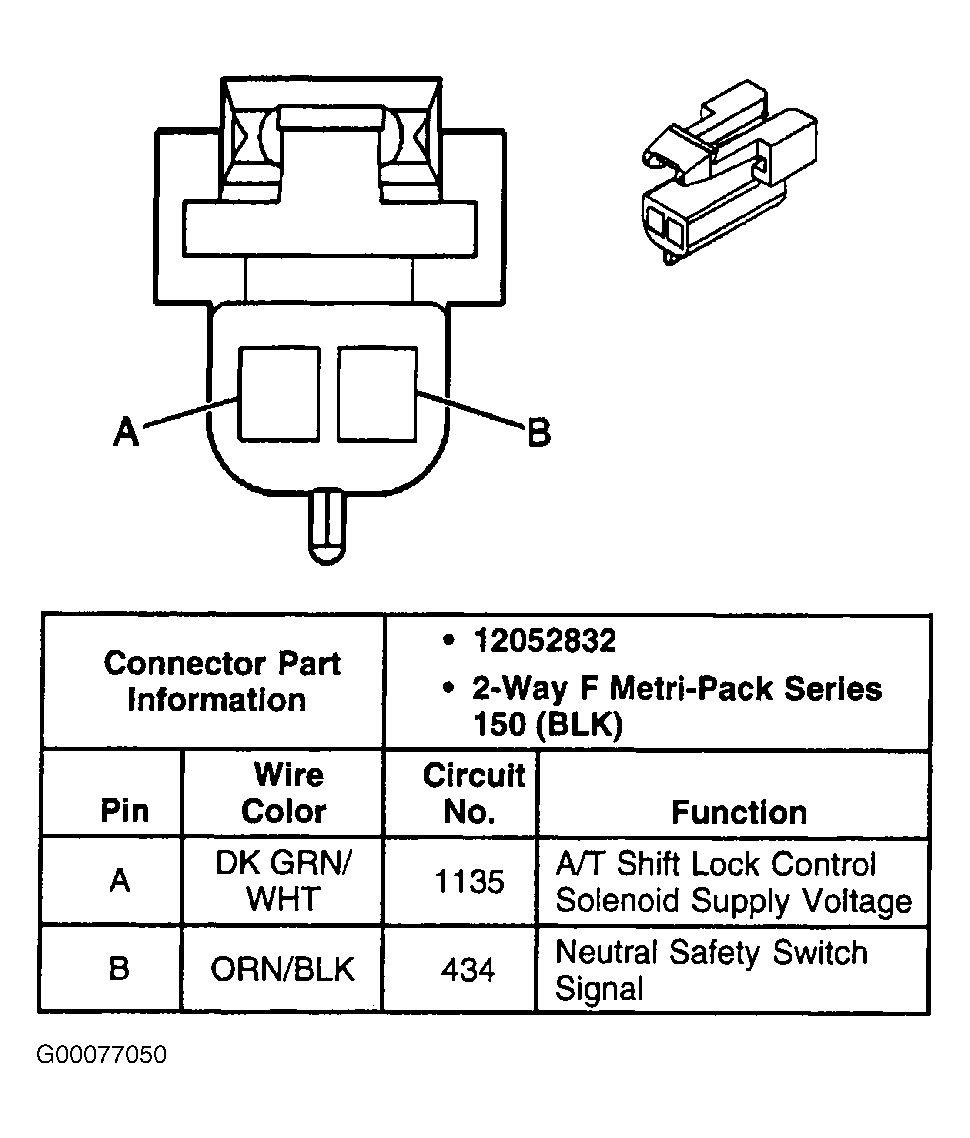

Fig 1: Identifying Shift Lock Solenoid Harness Connector Terminals
G00077050Courtesy of GENERAL MOTORS CORP.

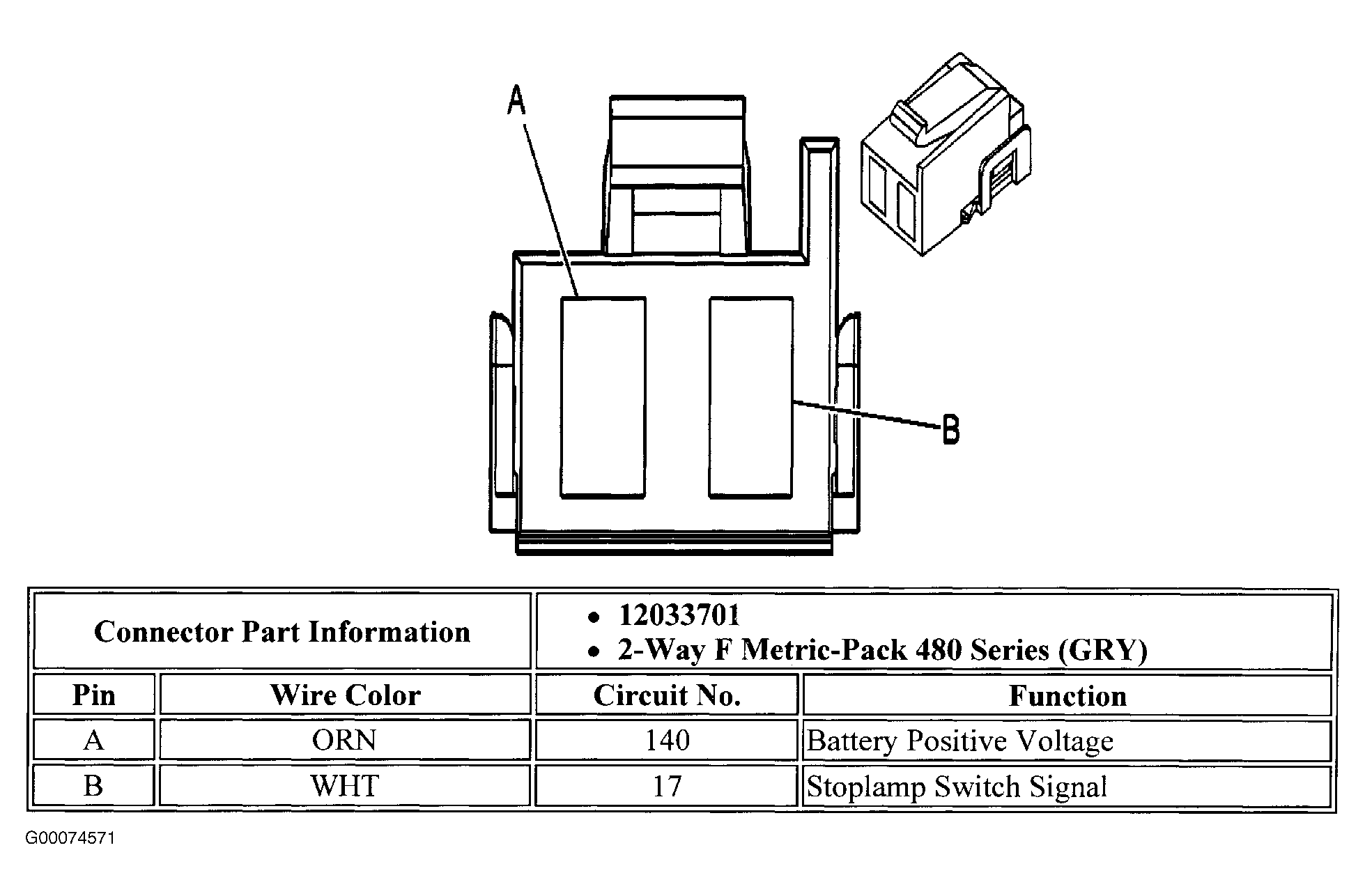

Fig 2: Identifying Stoplamp Switch Harness Connector (C1) Terminals
G00074571Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Stoplamp Switch Harness Connector (C2) Terminals
G00074572Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying Shift Lock Control Switch Harness Connector Terminals (Regal)
G00074573Courtesy of GENERAL MOTORS CORP.
Fig 5: Identifying Park/Neutral Position Switch Harness Connector (C1) Terminals
G00074574Courtesy of GENERAL MOTORS CORP.
Fig 6: Identifying Park/Neutral Position Switch Harness Connector (C2) Terminals
G00076990Courtesy of GENERAL MOTORS CORP.
