Console Ashtray/Lighter: Installation

  1. Position the cigarette lighter retainer with the key to the slot into the cigarette lighter hole. See Fig 4 .
  2. Install the cigarette lighter retainer pressing into place until fully seated.
  3. Connect the electrical connector to cigarette lighter socket.
  4. Align the cigarette lighter socket to the to the cigarette lighter retainer.
  5. Press the cigarette lighter socket into place until fully seated. See Fig 5 .
  6. Install the cigarette lighter element.
  7. Install the cigarette lighter fuse.
  8. Inspect the instrument panel lighter for proper operation.

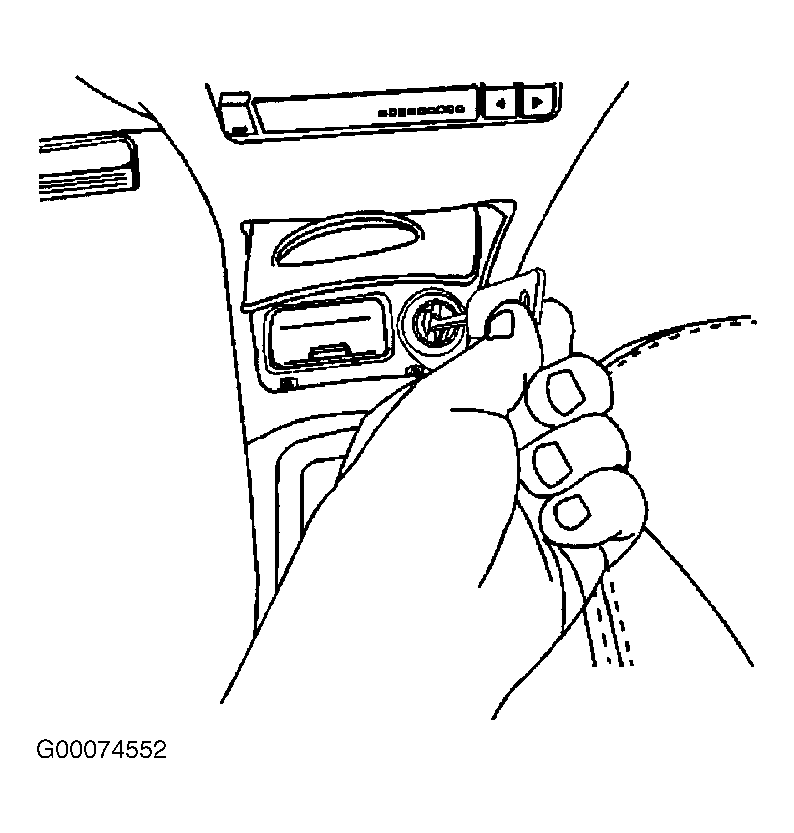

Fig 1: Removing Cigarette Lighter Socket
G00074552Courtesy of GENERAL MOTORS CORP.

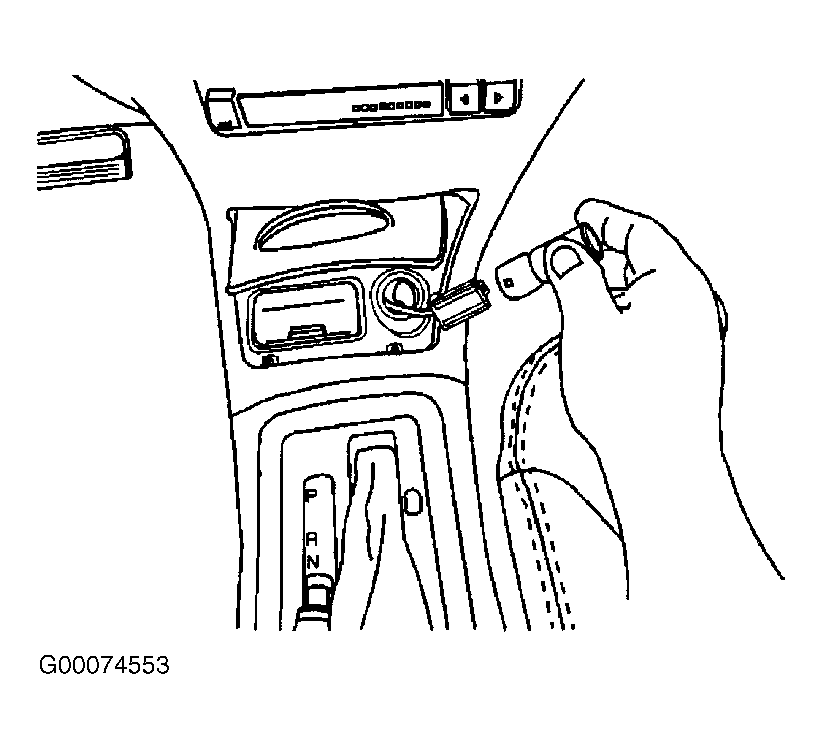

Fig 2: Disconnecting & Connecting Socket Connector
G00074553Courtesy of GENERAL MOTORS CORP.

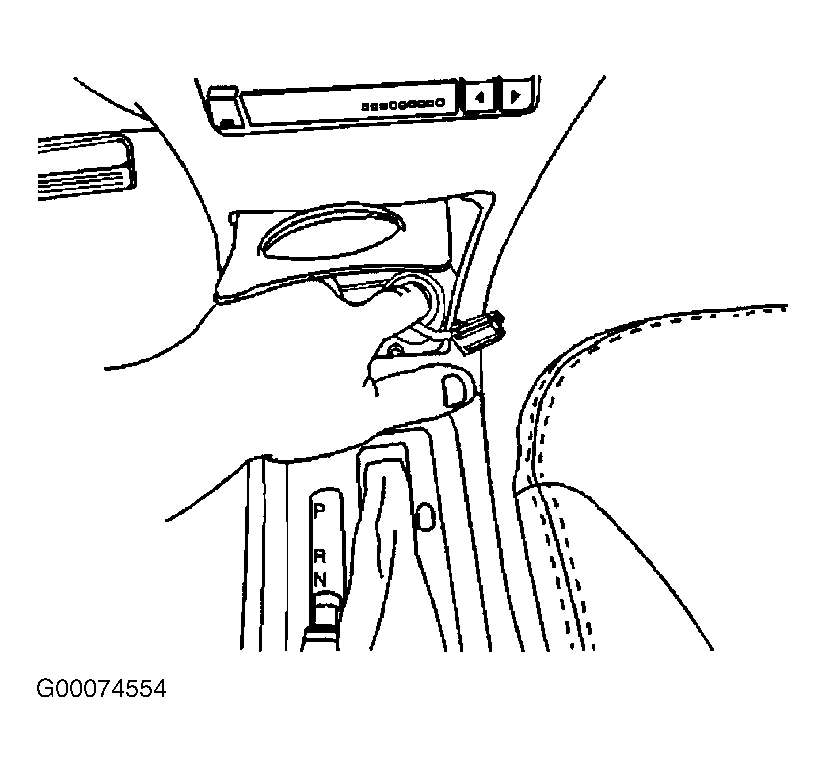

Fig 3: Removing Socket Retainer
G00074554Courtesy of GENERAL MOTORS CORP.

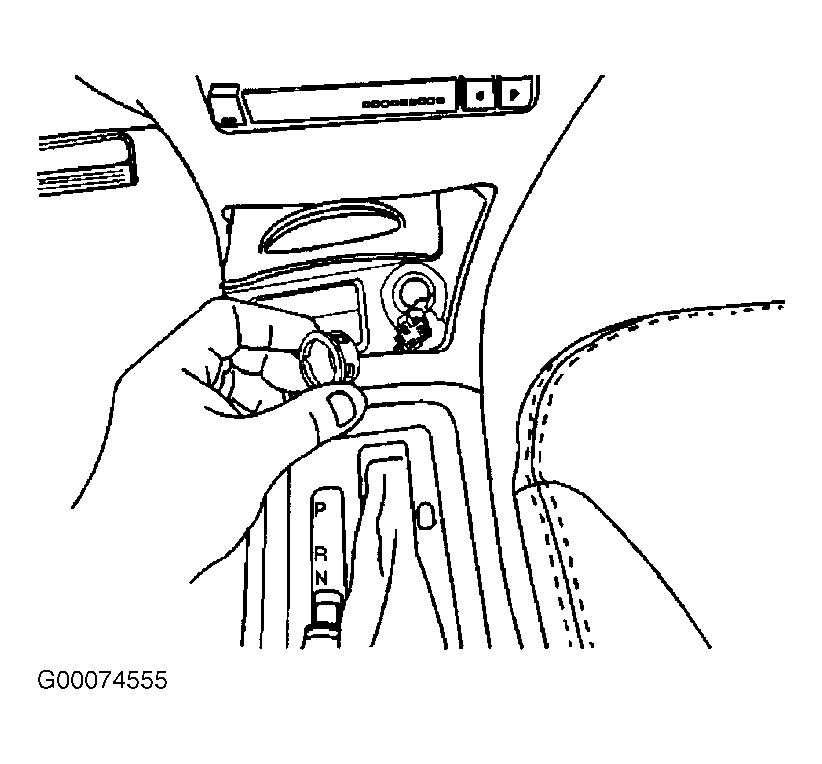

Fig 4: Positioning Retainer Into Console
G00074555Courtesy of GENERAL MOTORS CORP.

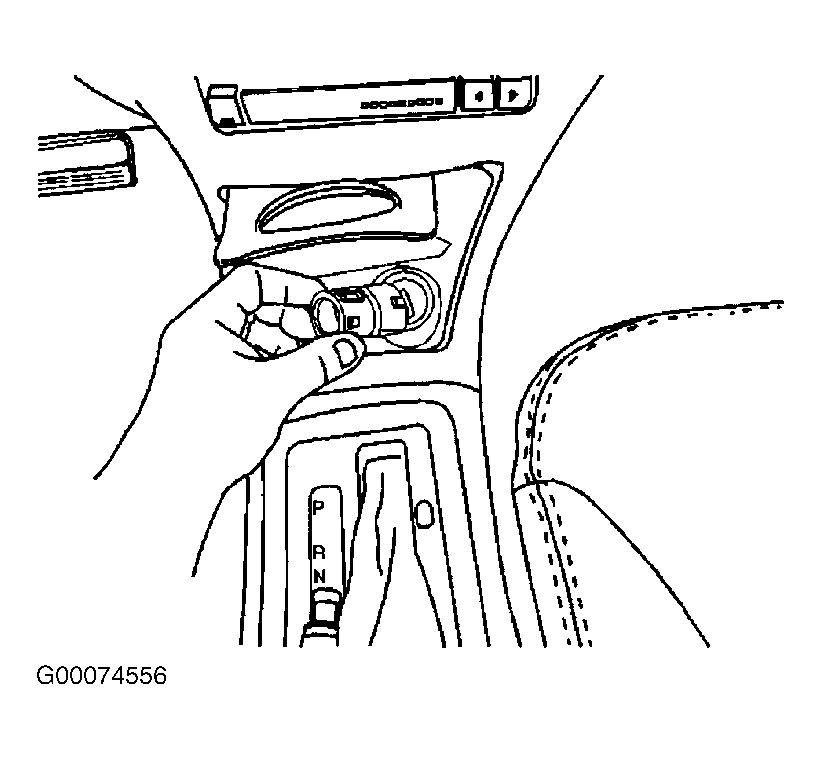

Fig 5: Installing Socket Into Console
G00074556Courtesy of GENERAL MOTORS CORP.
