Installation Procedure

  1. Install the positive battery cable into the wiring harness conduit.
  2. Install the battery cable harness to the vehicle.

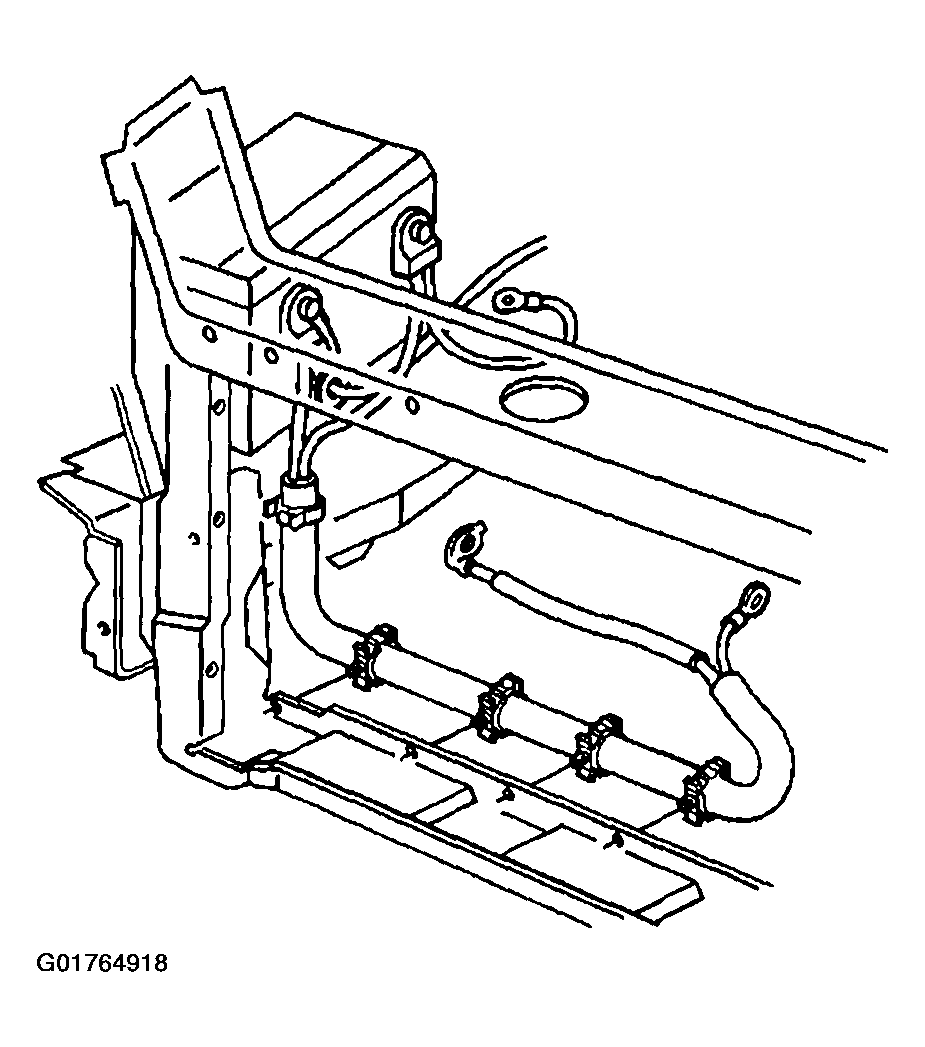

    3. Fig 1: Identifying Battery Cable Harness
    G01764918Courtesy of GENERAL MOTORS CORP.
  3. Install the battery cable harness to the retainers.
  4. Install the positive battery cable to the generator.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the output BAT terminal nut to the generator. Tighten the nut to 20 N.m (15 lb ft).
  6. Install the protective boot to the generator output BAT terminal.
  7. Install the positive battery cable to the starter motor BAT terminal.

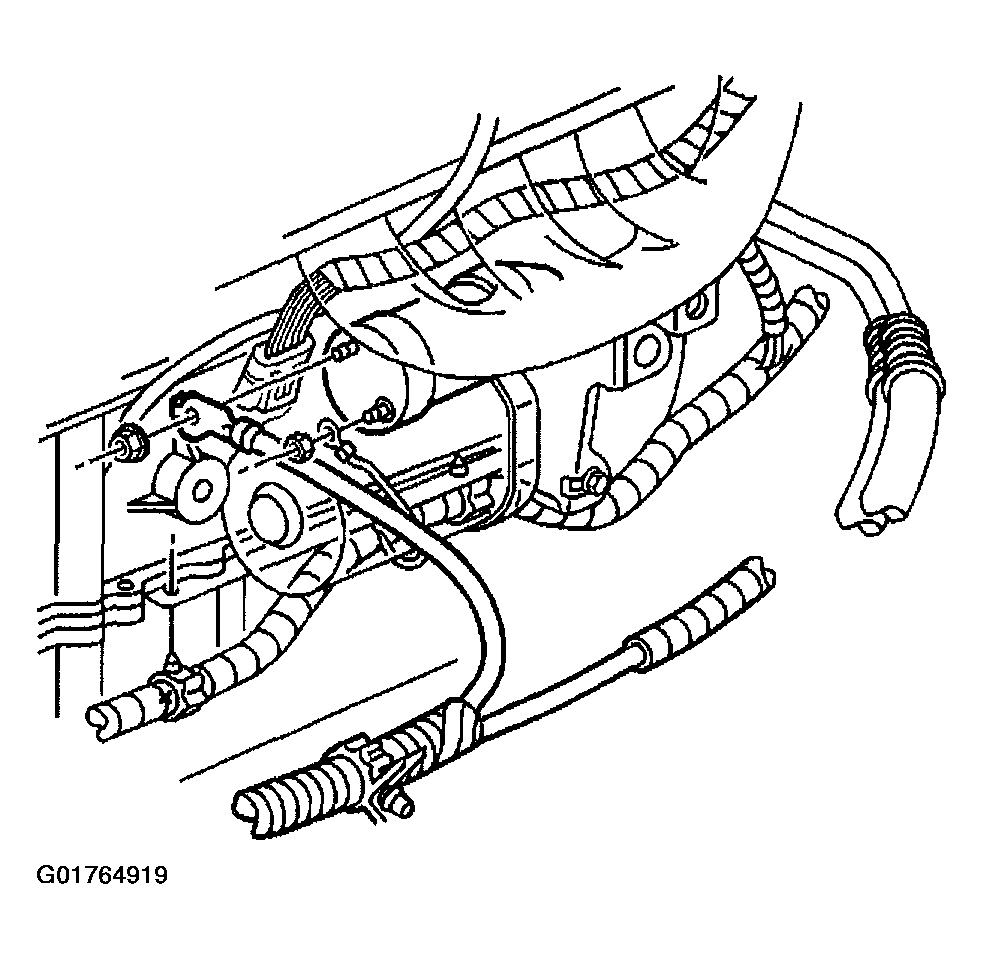

    8. Fig 2: Identifying Starter Motor BAT Terminal Positive Battery Cable
    G01764919Courtesy of GENERAL MOTORS CORP.
  8. Install the nut to the starter solenoid BAT terminal. Tighten the nut to 10 N.m (84 lb in).
  9. Install the front lower air deflector. Refer to RADIATOR AIR BAFFLE AND DEFLECTOR REPLACEMENT - LOWER .
  10. Lower the vehicle.
  11. Install the positive battery cable harness to the BEG.
  12. Install the BEC to the strut tower.
  13. Install the positive battery cable to the BEC.
  14. Install the junction block lead nut to the positive battery cable. Tighten the lead nut to 10 N.m (89 lb in).
  15. Install the remote positive stud cover.

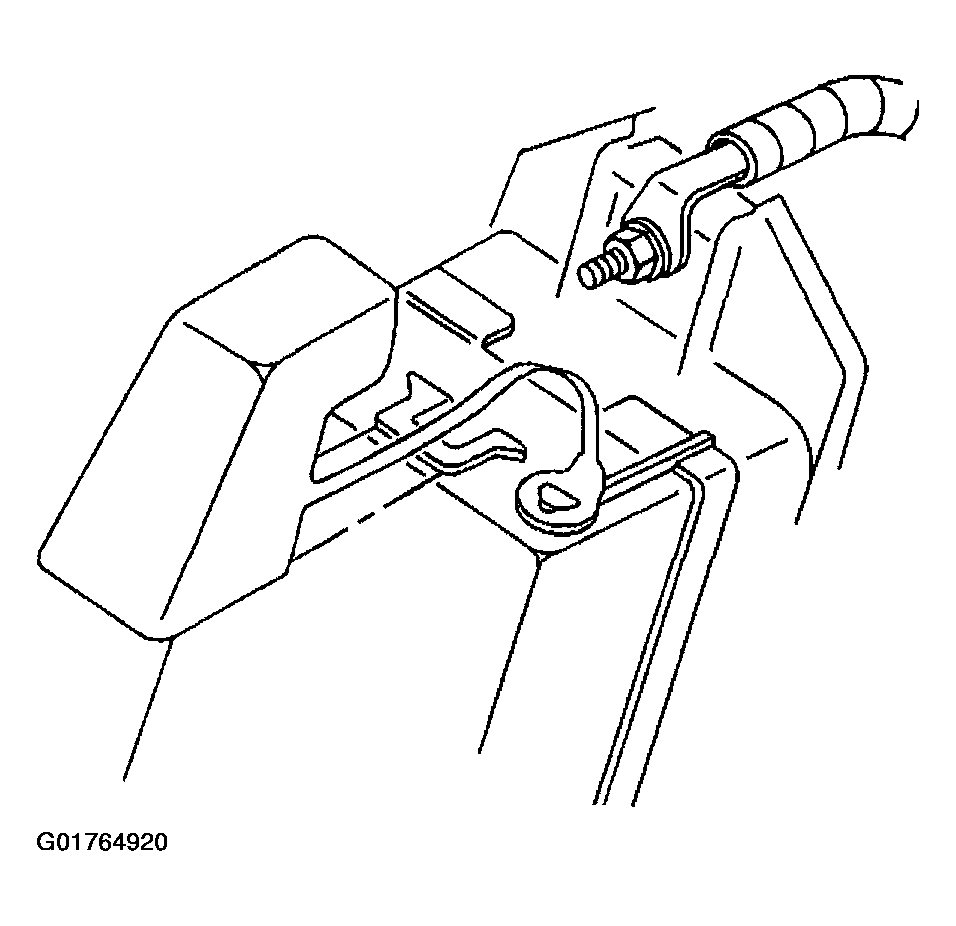

    16. Fig 3: Identifying Remote Positive Stud Cover
    G01764920Courtesy of GENERAL MOTORS CORP.
  16. Install the ground wire and the bolt to the frame. Tighten the bolt to 10 N.m (89 lb in).
  17. Install the positive battery cable to the battery. Tighten the terminal bolt to 15 N.m (11 lb ft).
  18. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .

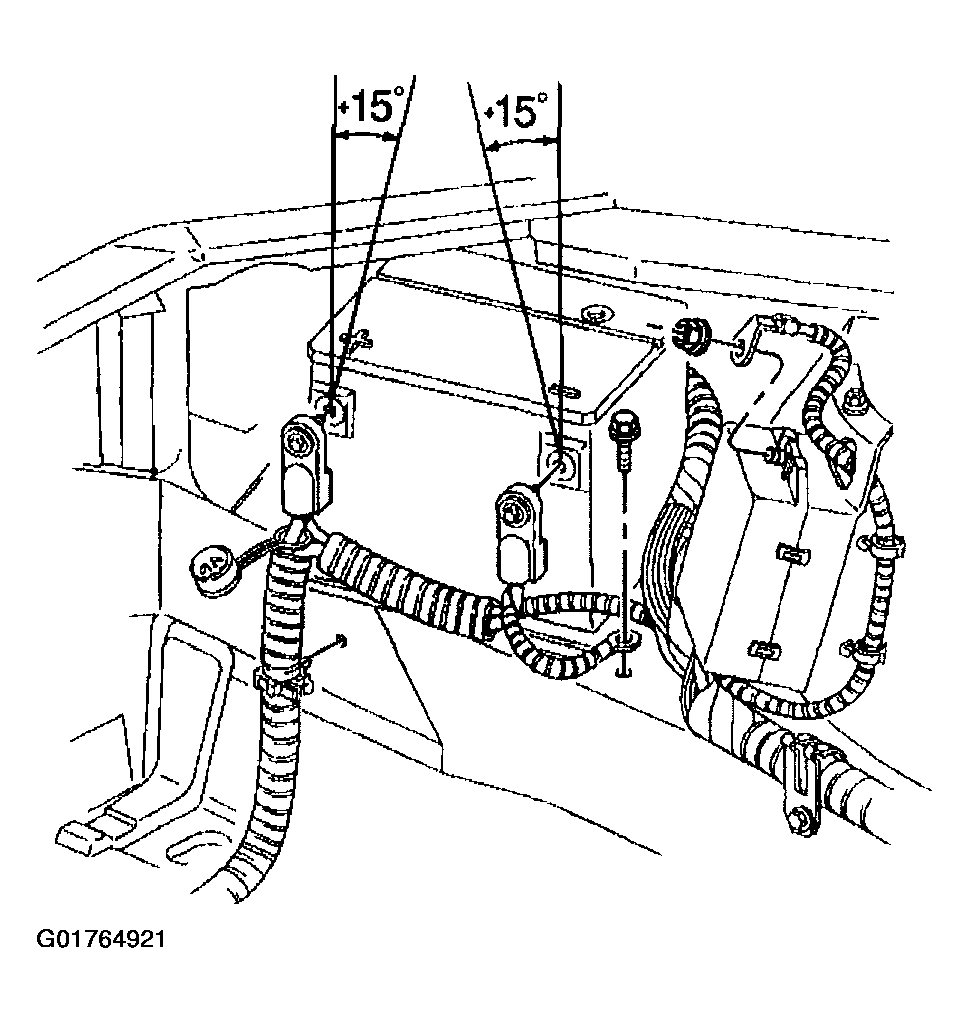

    Fig 4: Identifying Battery Cables
    G01764921Courtesy of GENERAL MOTORS CORP.
