Removal Procedure

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
Remove the right front diagonal brace.
Disconnect the battery positive cable.

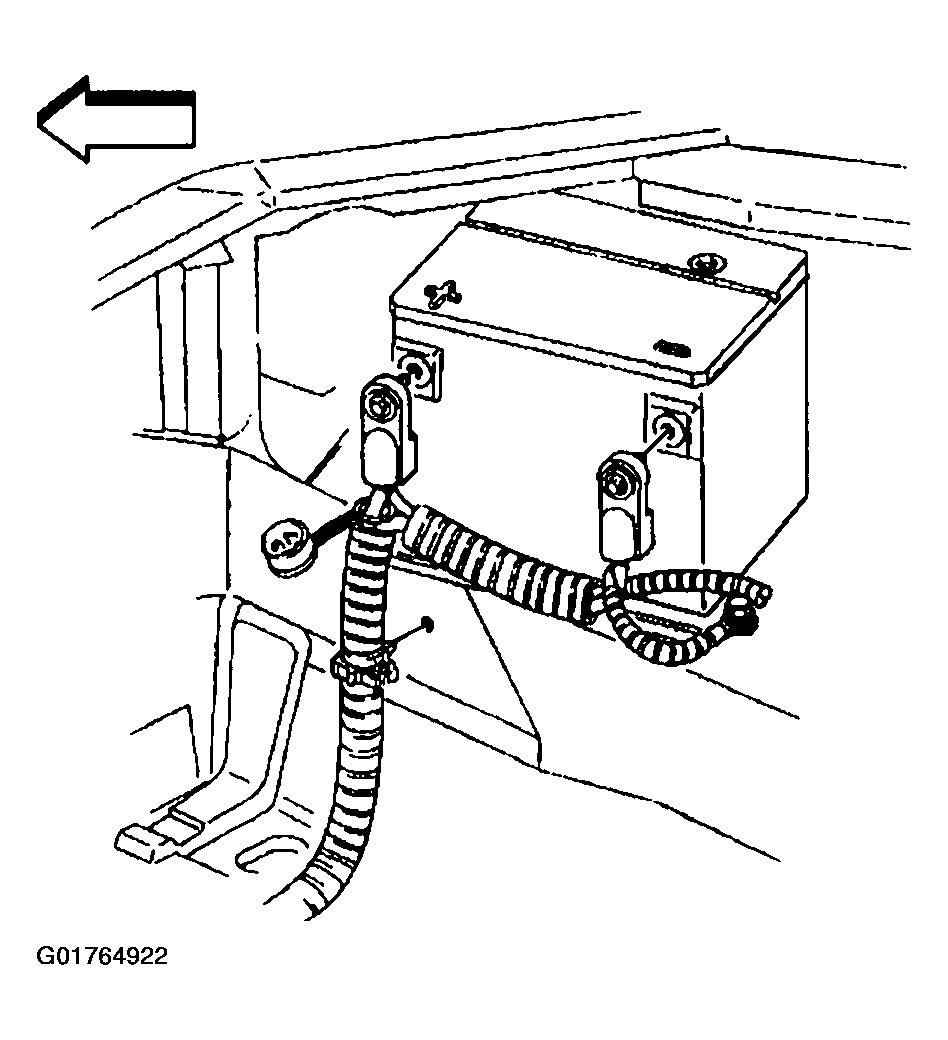

Fig 1: Identifying Battery Cables
Courtesy of GENERAL MOTORS CORP.
Remove the battery hold down retainer bolt (1).

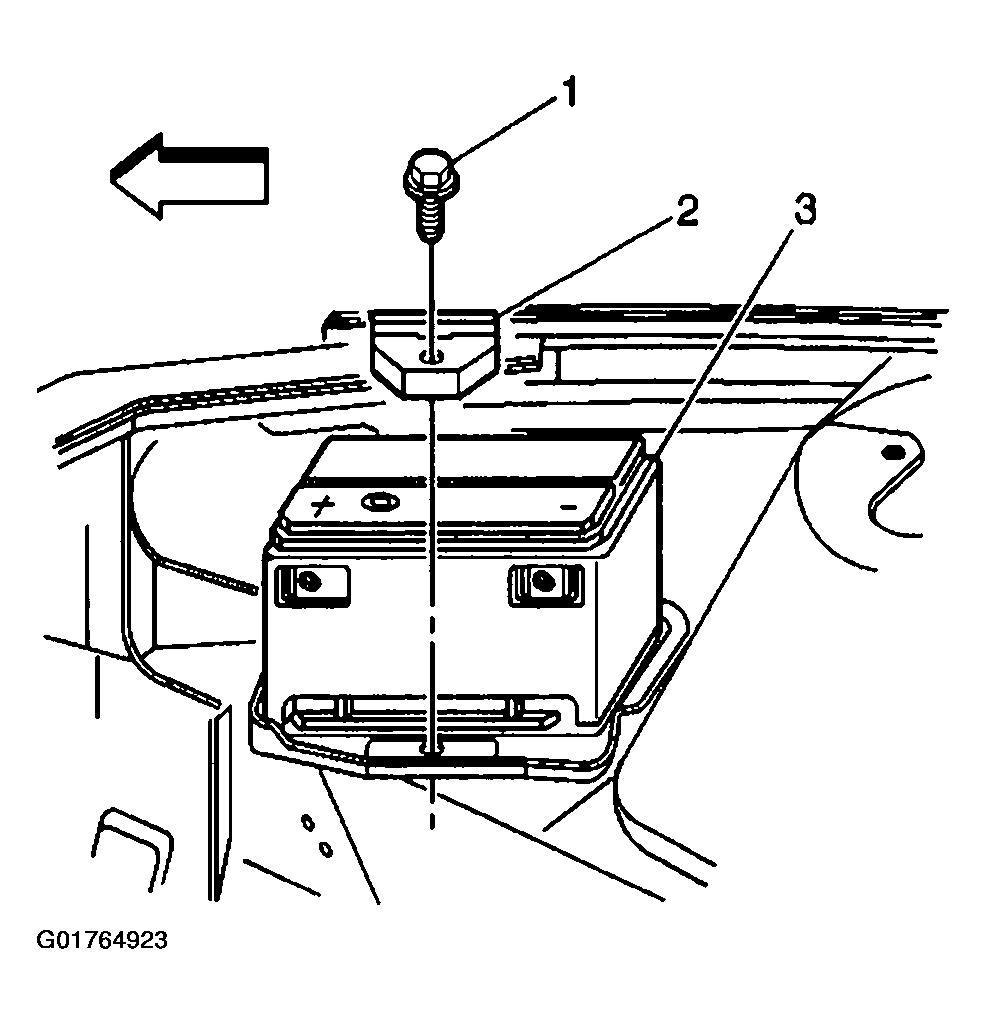

Fig 2: Identifying Battery Hold Down Components

Courtesy of GENERAL MOTORS CORP.

Remove the battery hold down retainer (2).
Important: Do not tip the battery more than 40 degrees during removal.
Remove the battery (3).
Remove the battery insulator from the battery.

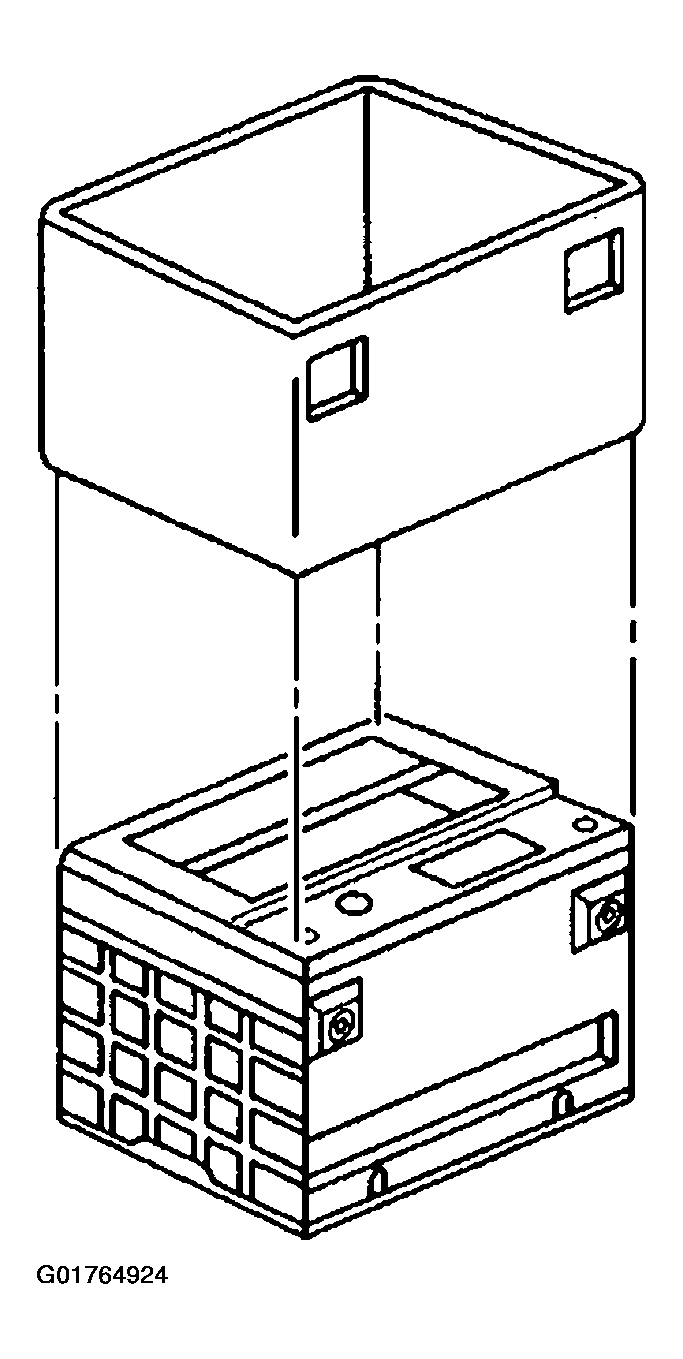

Fig 3: Identifying Battery Insulator
Courtesy of GENERAL MOTORS CORP.
