Engine Code Location

NOTE: For description of engine (RPO) code, see 2002 MODEL COVERAGE table.

LA1 & LG8

On left side of engine block, on engine-to-transmission mating flange, OR on top front of engine block, near timing chain housing. See Fig 1 .

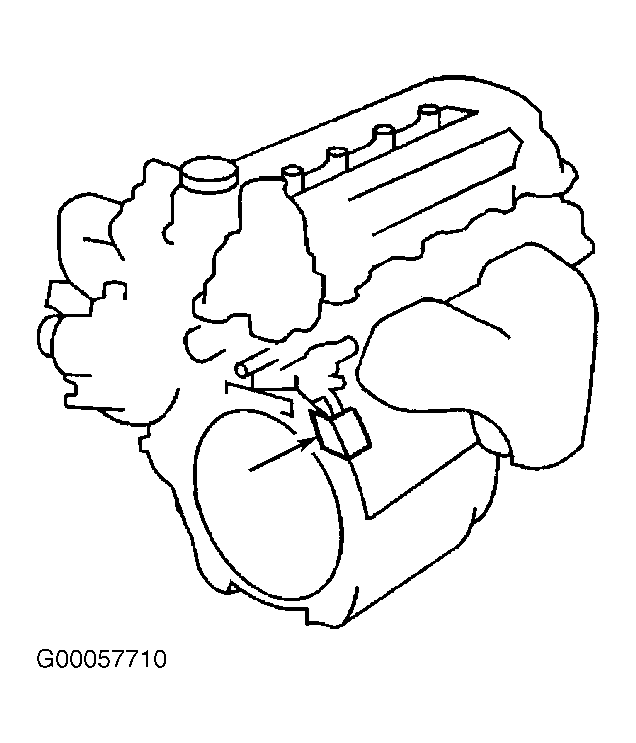

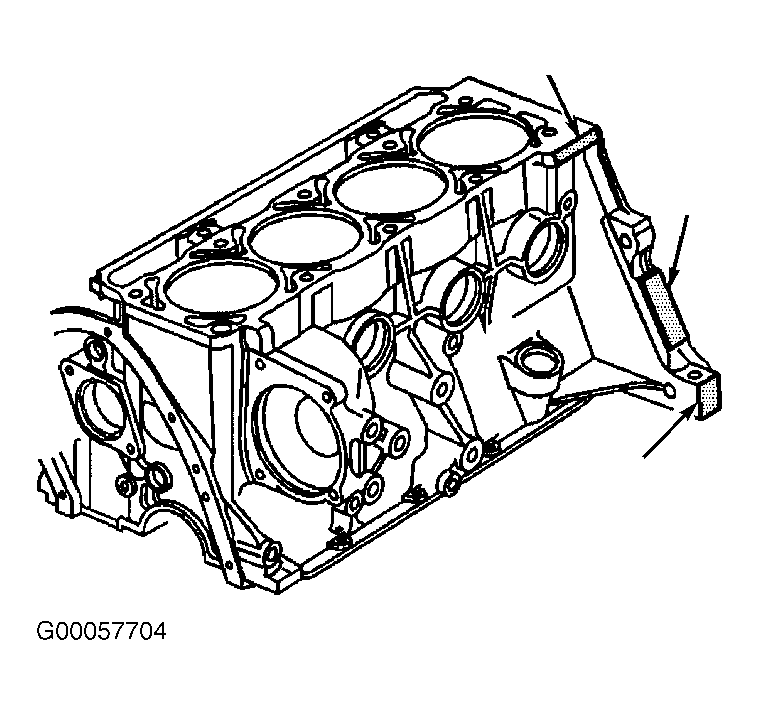

Fig 1: Locating Engine Identification Number (LA1 & LG8)
Courtesy of GENERAL MOTORS CORP.

LS1, LS6 & L81

On left side of engine block, on engine-to-transmission mating flange. See Fig 2 or Fig 3 .

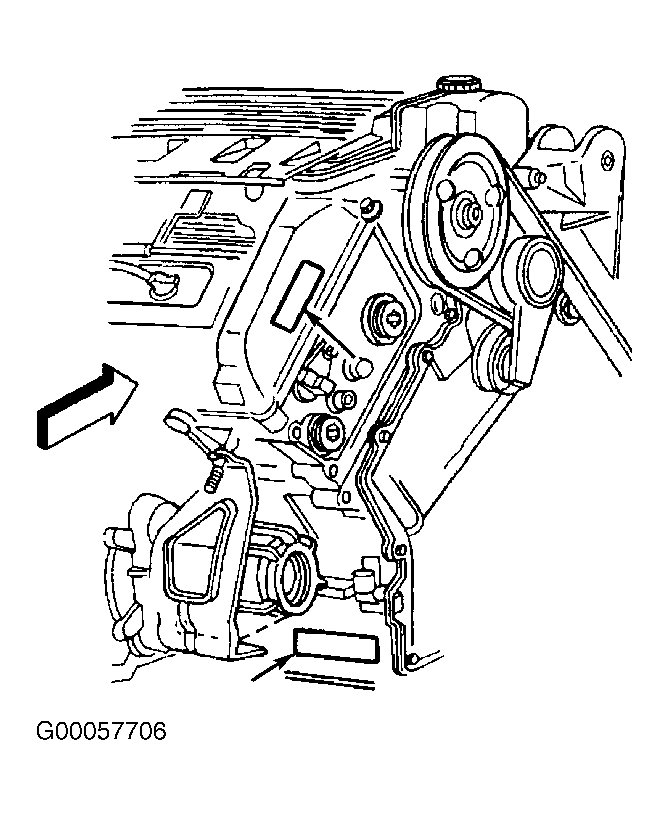

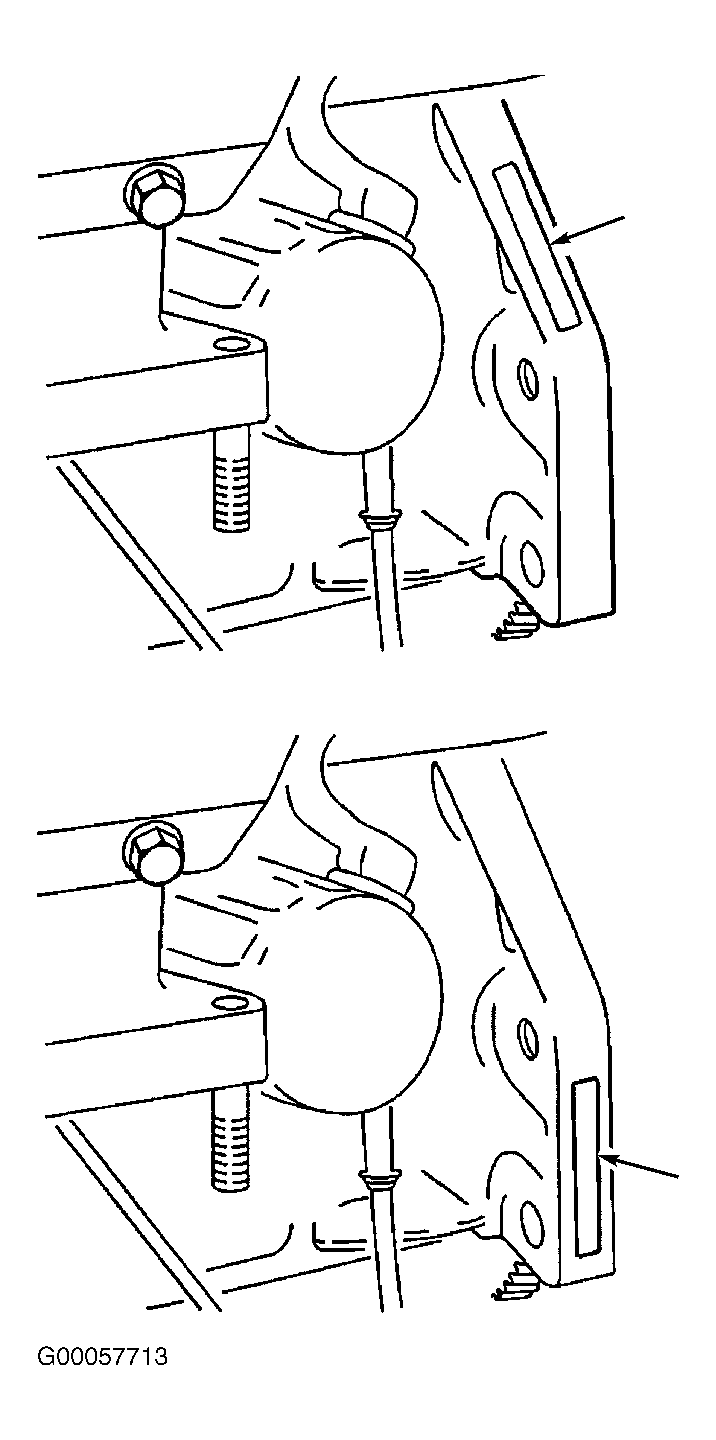

Fig 2: Locating Engine Identification Number (LS1 & LS6)
Courtesy of GENERAL MOTORS CORP.

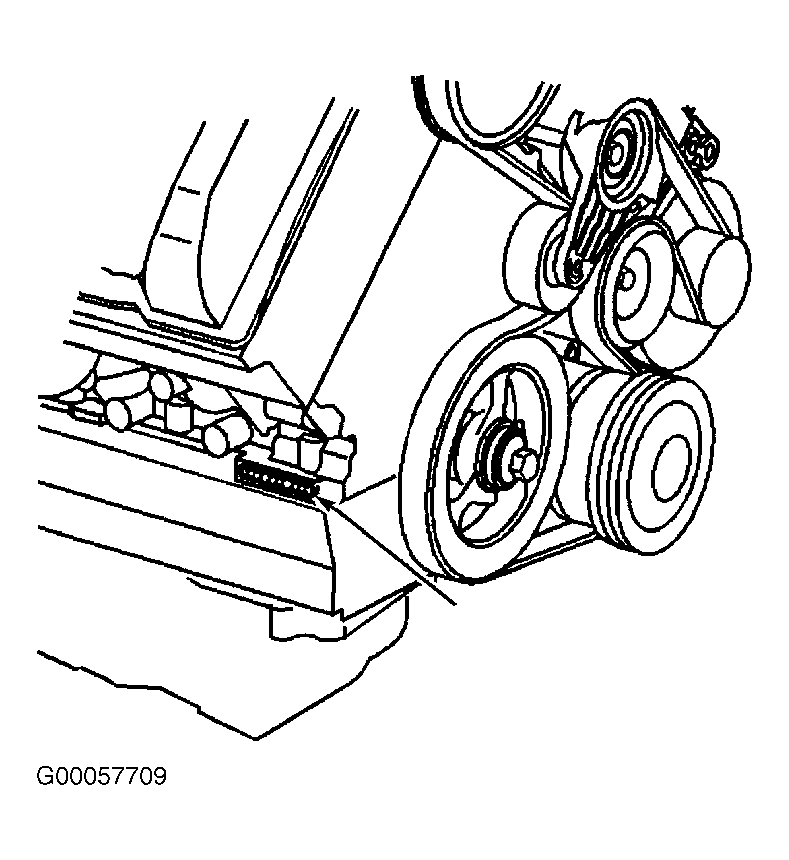

Fig 3: Locating Engine Identification Number (L81)
Courtesy of GENERAL MOTORS CORP.

LD8 & L37

On right front side of engine block, on cam cover, OR on right front side of engine block, forward of transmission extension. See Fig 4 .

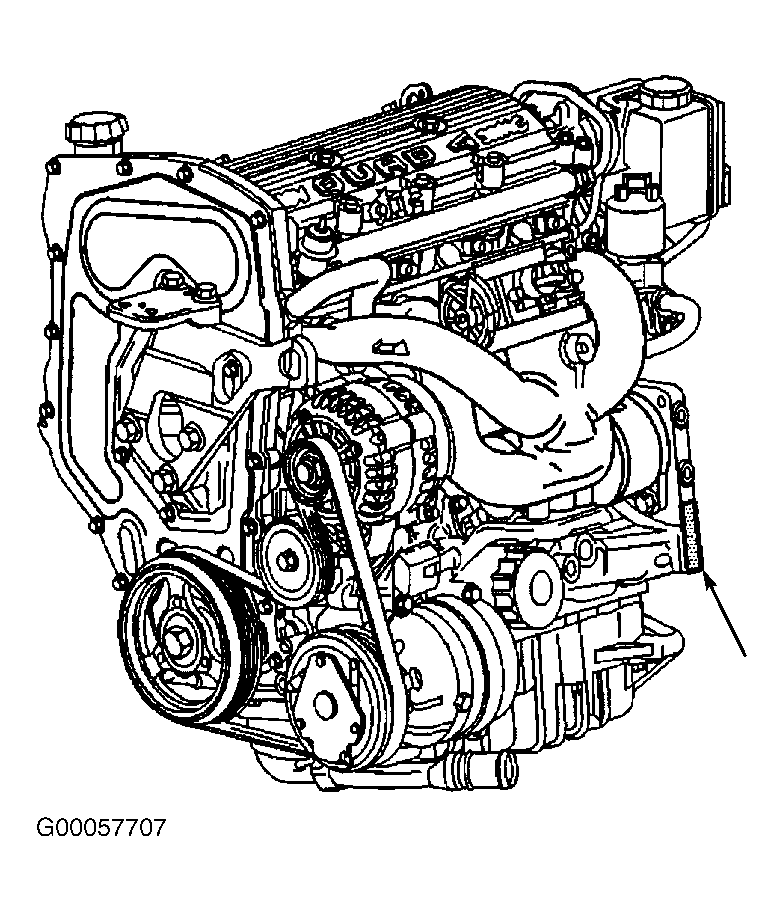

Fig 4: Locating Engine Identification Number (LD8 & L37)
Courtesy of GENERAL MOTORS CORP.

LD9, LN2, LN2/KL6 & L61

On left rear side of engine block. See Fig 5 or Fig 6 .

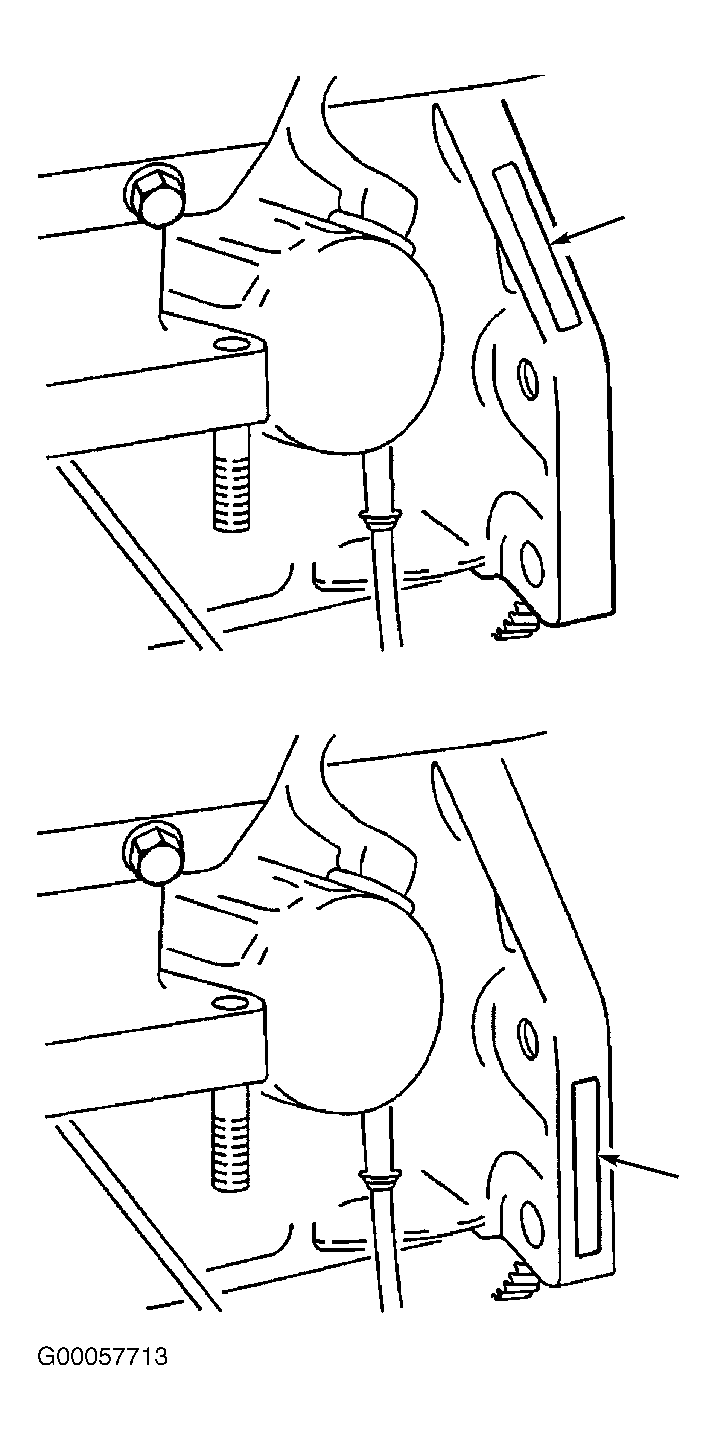

Fig 5: Locating Engine Identification Number (LD9)
Courtesy of GENERAL MOTORS CORP.

Fig 6: Locating Engine Identification Number (LN2, LN2/KL6 & L61)
Courtesy of GENERAL MOTORS CORP.

NOTE: Engine ID location illustration for engine codes LL0 & L24 is not available from manufacturer.

LL0 & L24
On left rear side of engine block.

LX5& L47

On right front side of engine block, near oil pan. See Fig 7 .

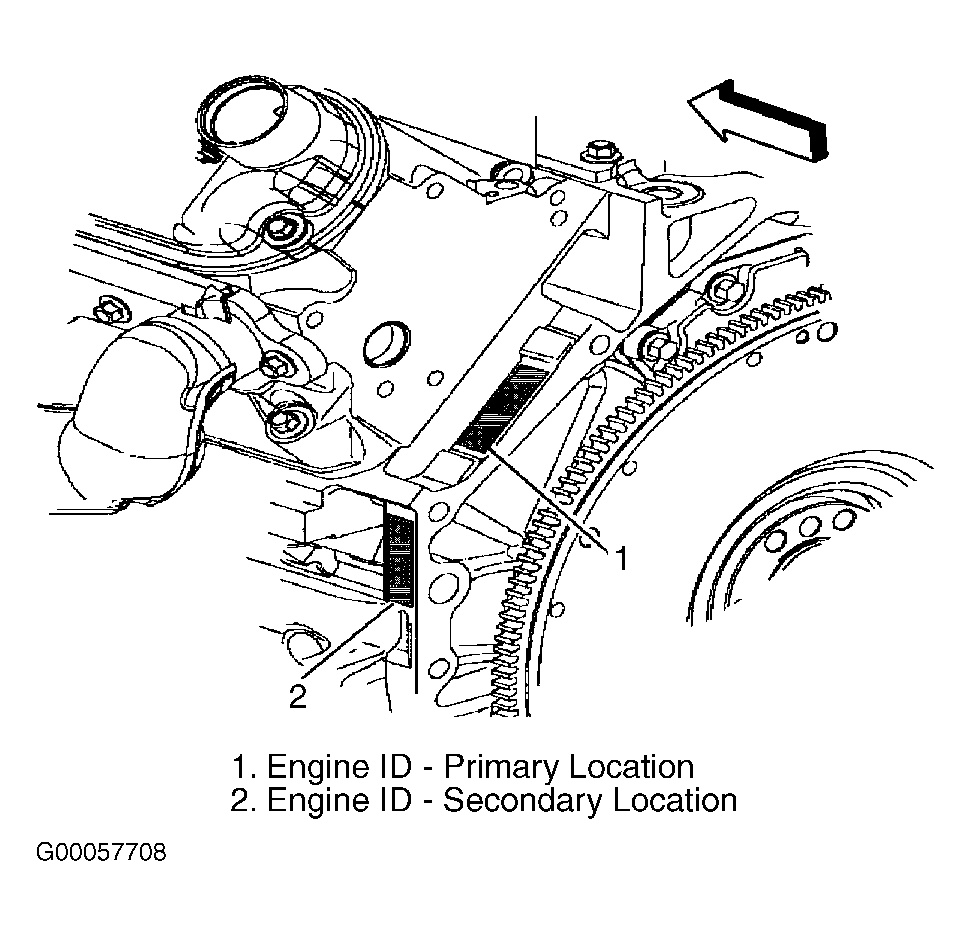

Fig 7: Locating Engine Identification Number (LX5 & L47)
Courtesy of GENERAL MOTORS CORP.

LV6

On right rear side of engine block. See Fig 8 .

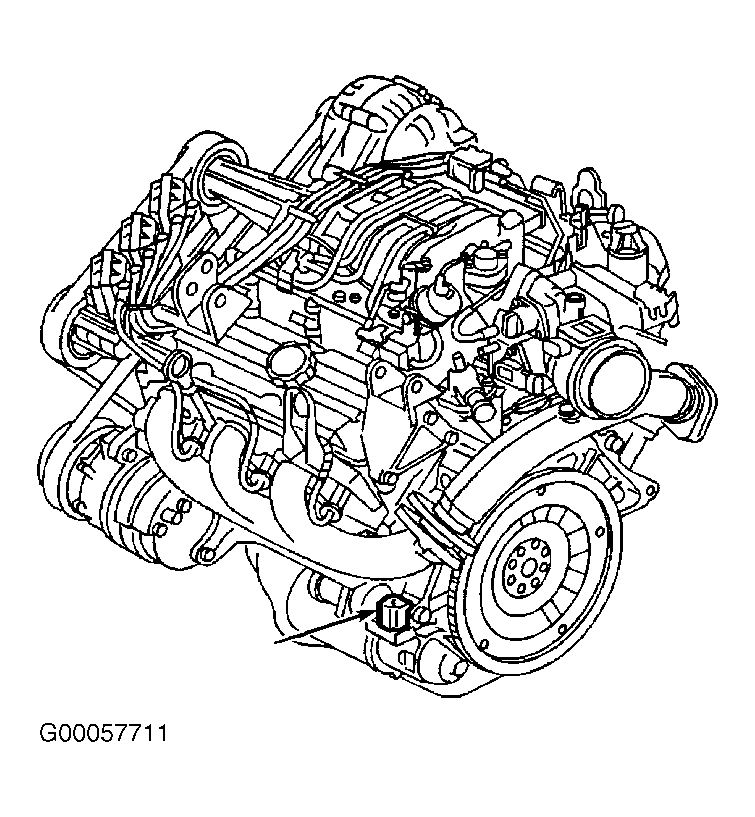

Fig 8: Locating Engine Identification Number (LV6)
Courtesy of GENERAL MOTORS CORP.

L36 & L67

Right rear of engine, under exhaust manifold near bellhousing/engine mating surface. See Fig 9 .

Fig 9: Locating Engine Identification Number (L36 & L67)
Courtesy of GENERAL MOTORS CORP.
