Pressure Control Solenoid: Installation

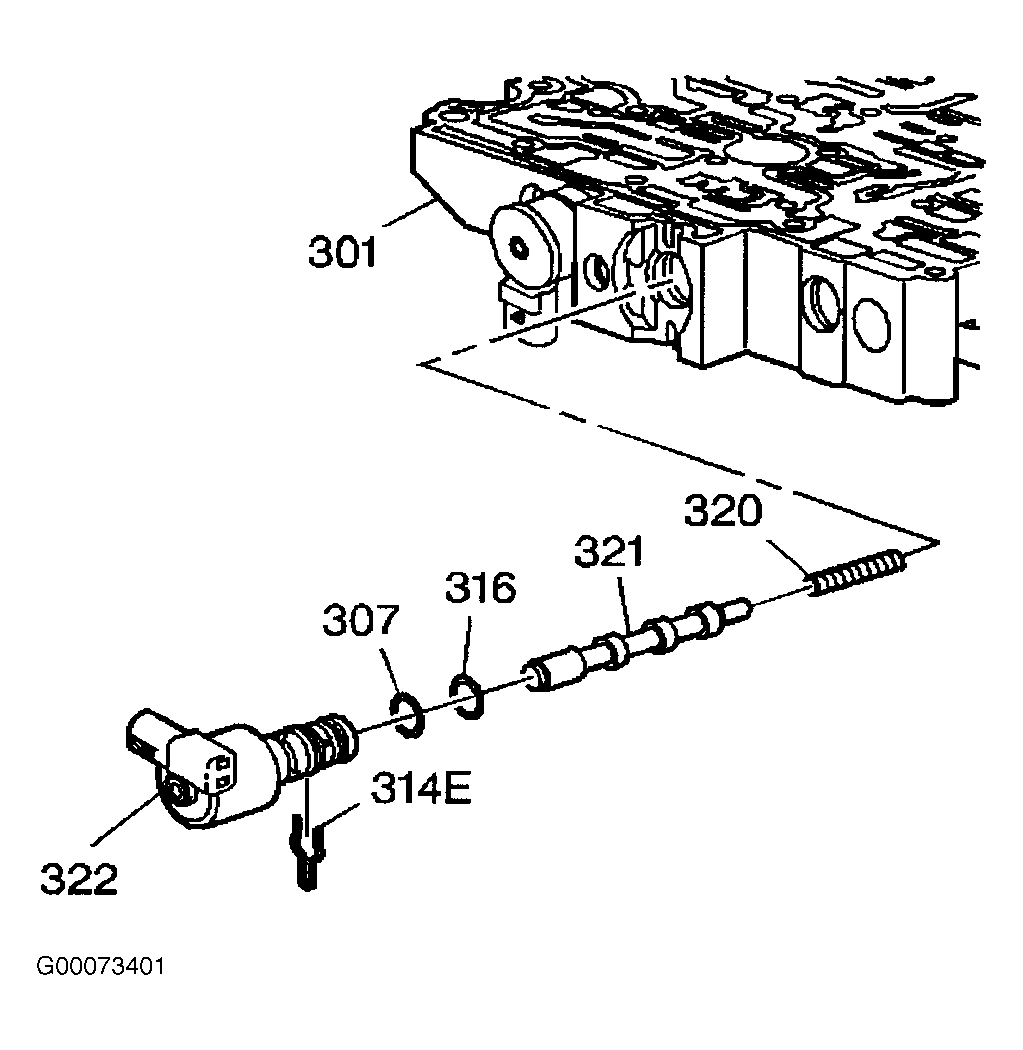

Install the pressure control solenoid (322). See Figure . Connect the transaxle wiring harness. Install the case side cover. See CASE SIDE COVER  .
