Keyless Entry Connector End Views

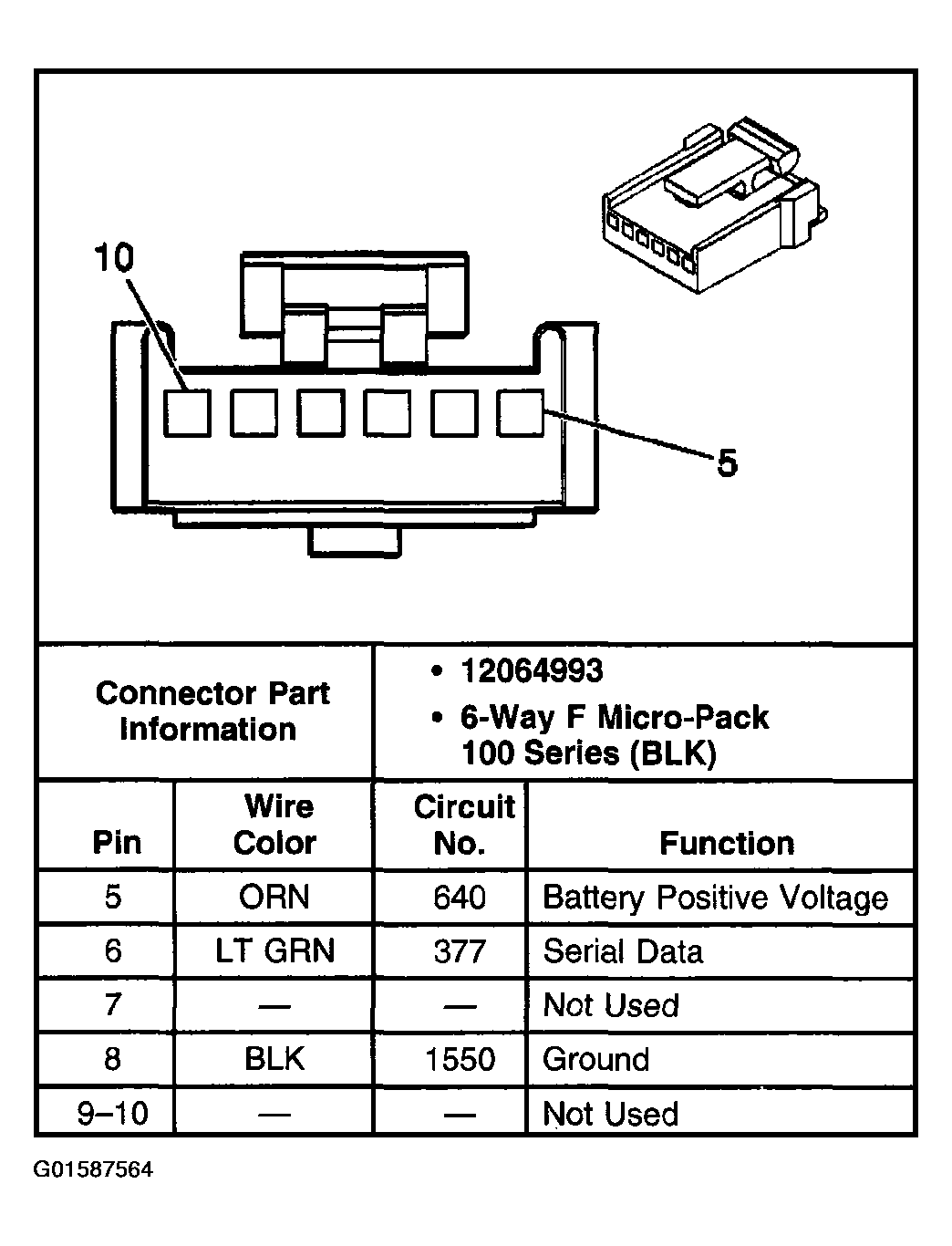

Fig 1: Remote Control Door Lock Receiver (RCDLR) Connector End View
G01587564Courtesy of GENERAL MOTORS CORP.
