Stationary Windows Component Views

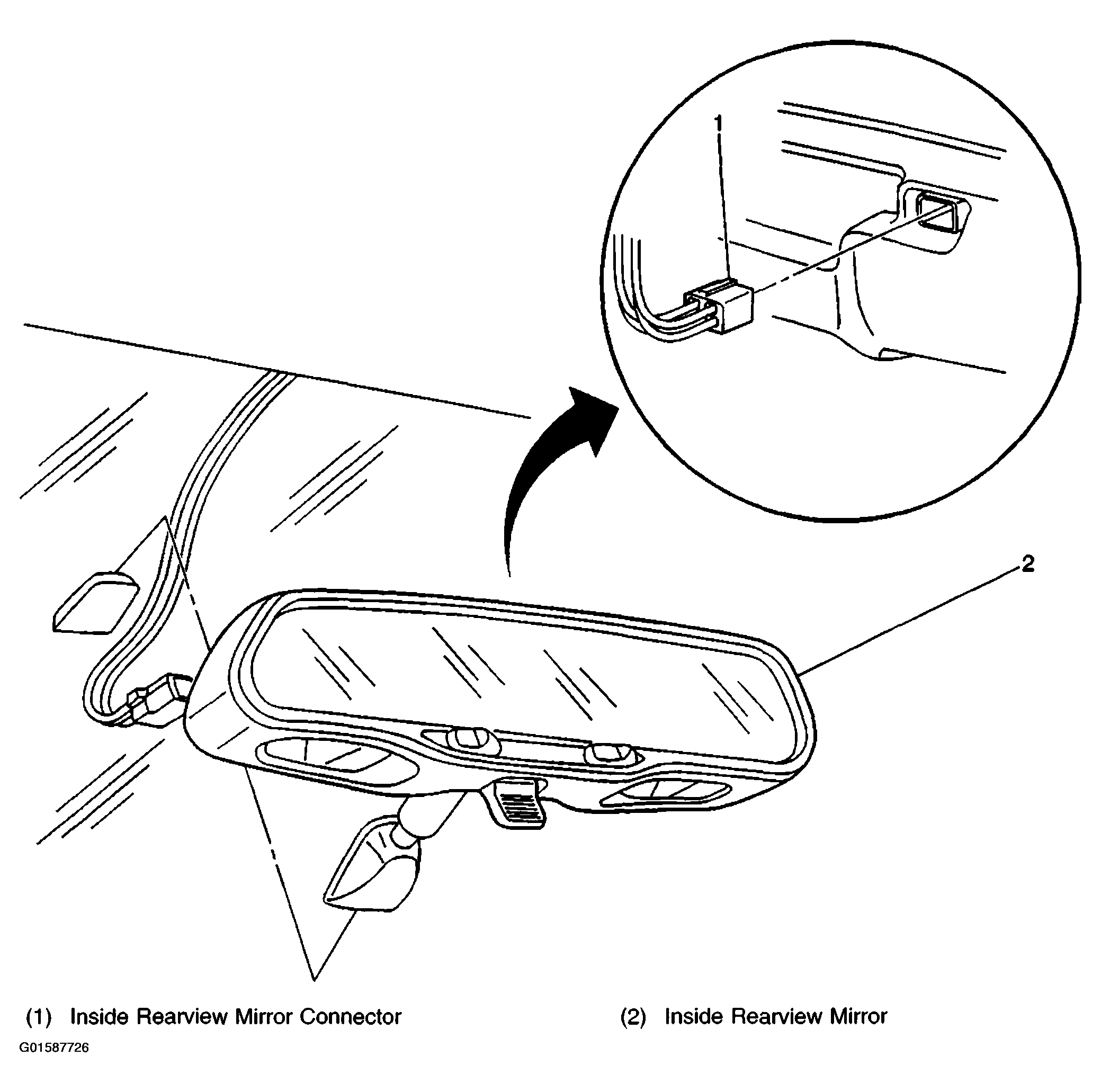

Fig 1: Identifying Forward Center Of Interior Compartment Component View
G01587726Courtesy of GENERAL MOTORS CORP.

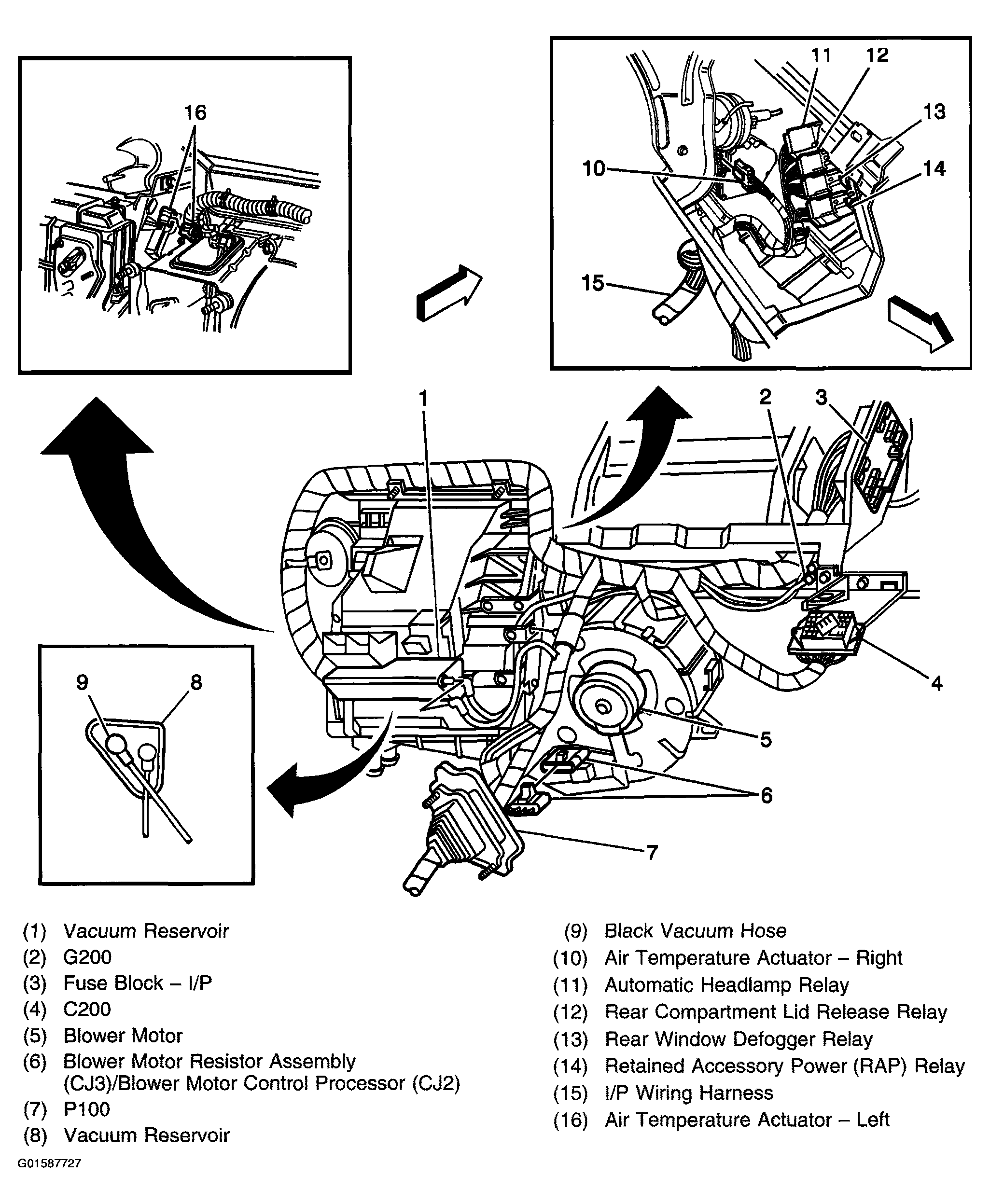

Fig 2: Identifying Behind Right Side Of I/P Component View
G01587727Courtesy of GENERAL MOTORS CORP.

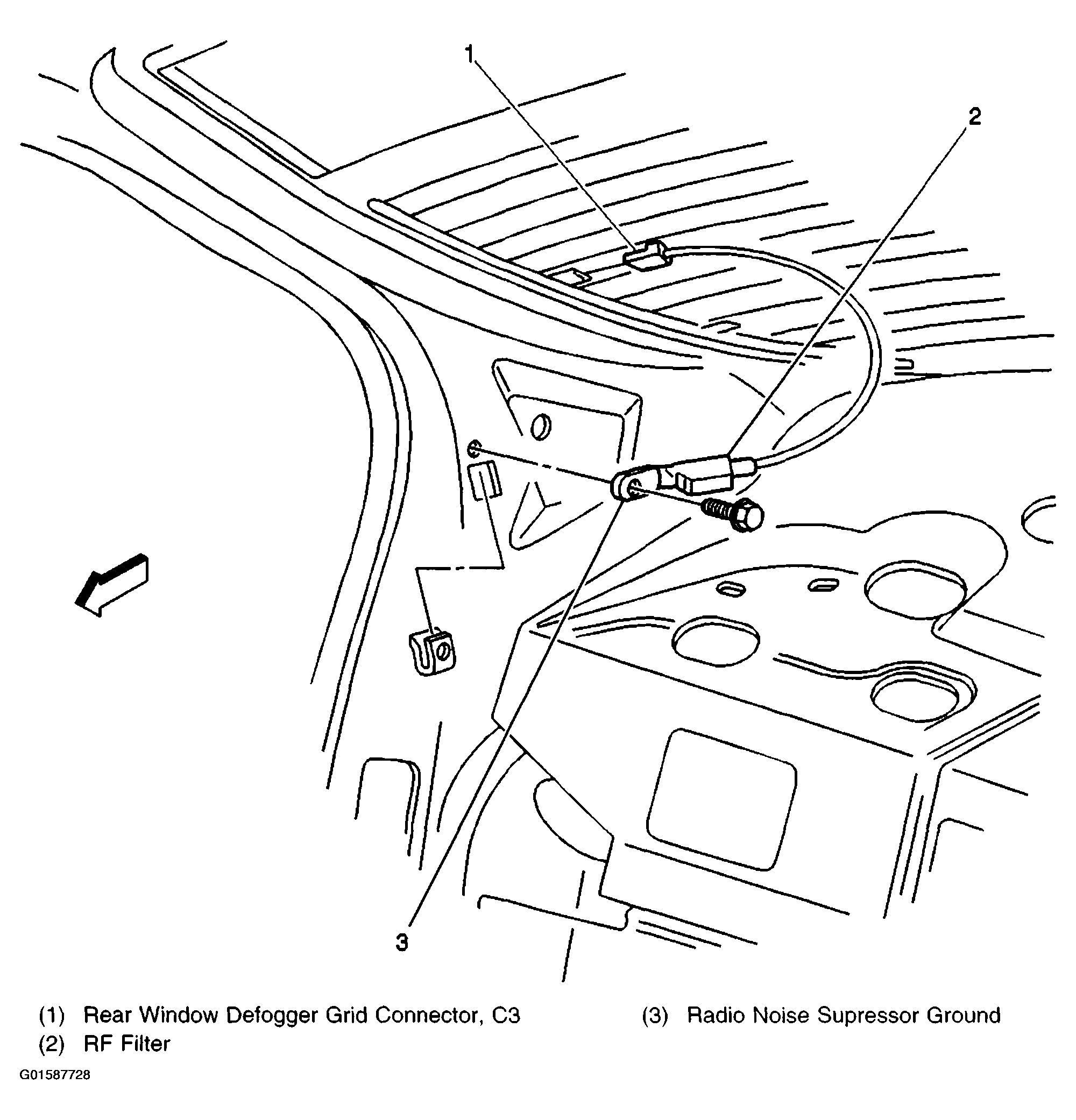

Fig 3: Identifying Left Side Of Rear Window, Radio Noise Suppressor Component View
G01587728Courtesy of GENERAL MOTORS CORP.

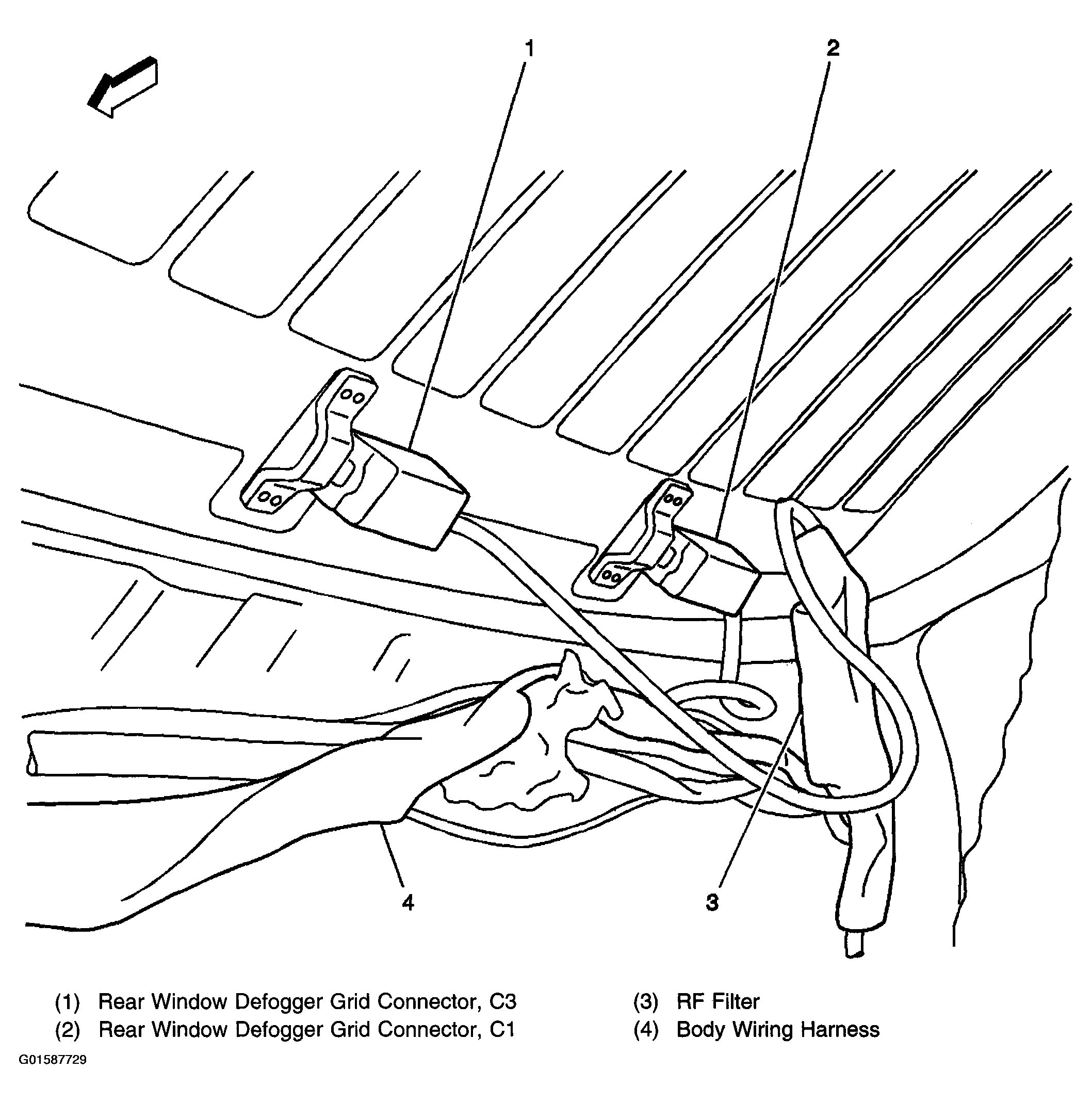

Fig 4: Identifying Left Side Of Rear Window Component View
G01587729Courtesy of GENERAL MOTORS CORP.

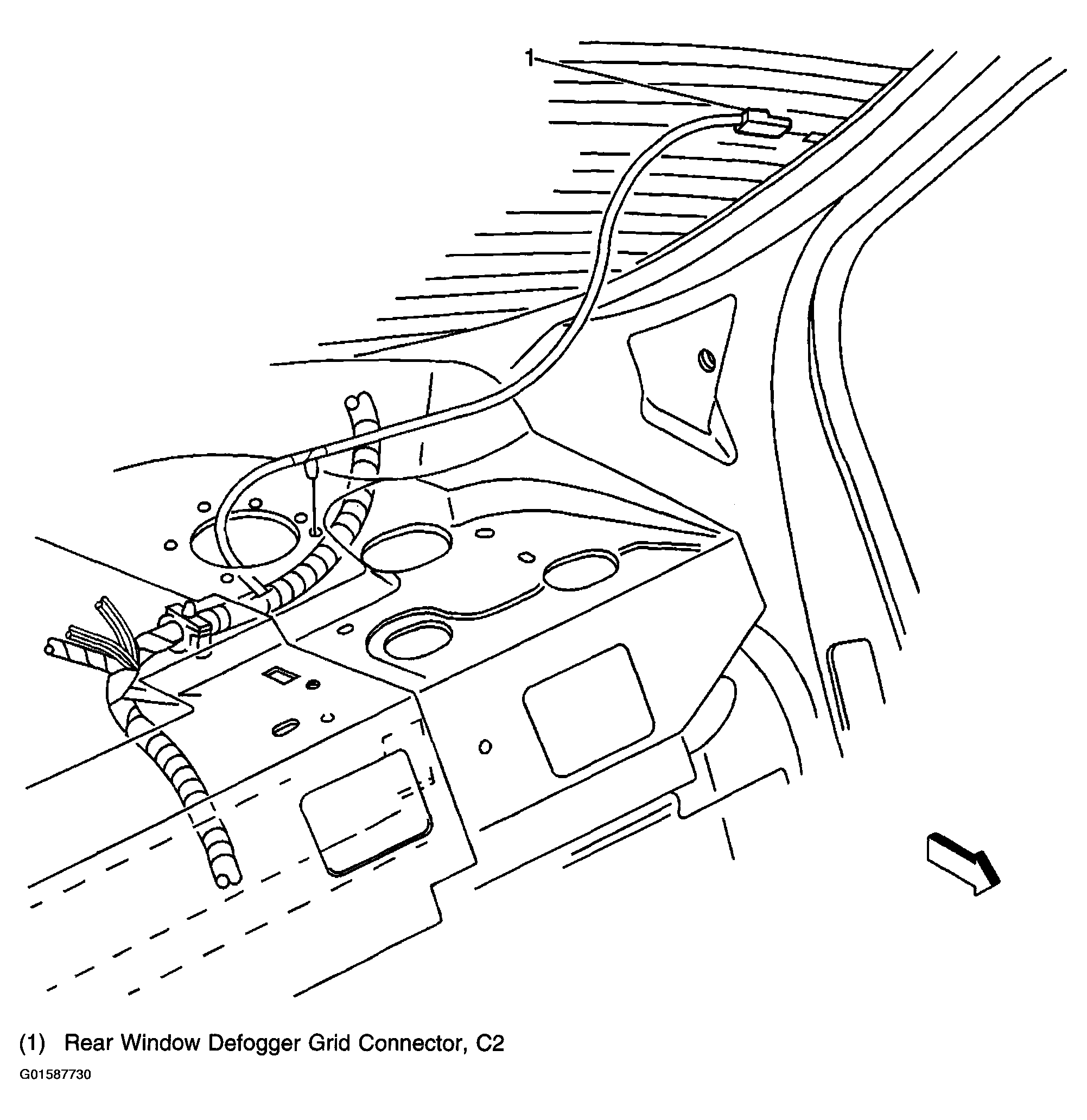

Fig 5: Identifying Right Side Of Rear Window Component View
G01587730Courtesy of GENERAL MOTORS CORP.
