Stationary Windows Connector End Views

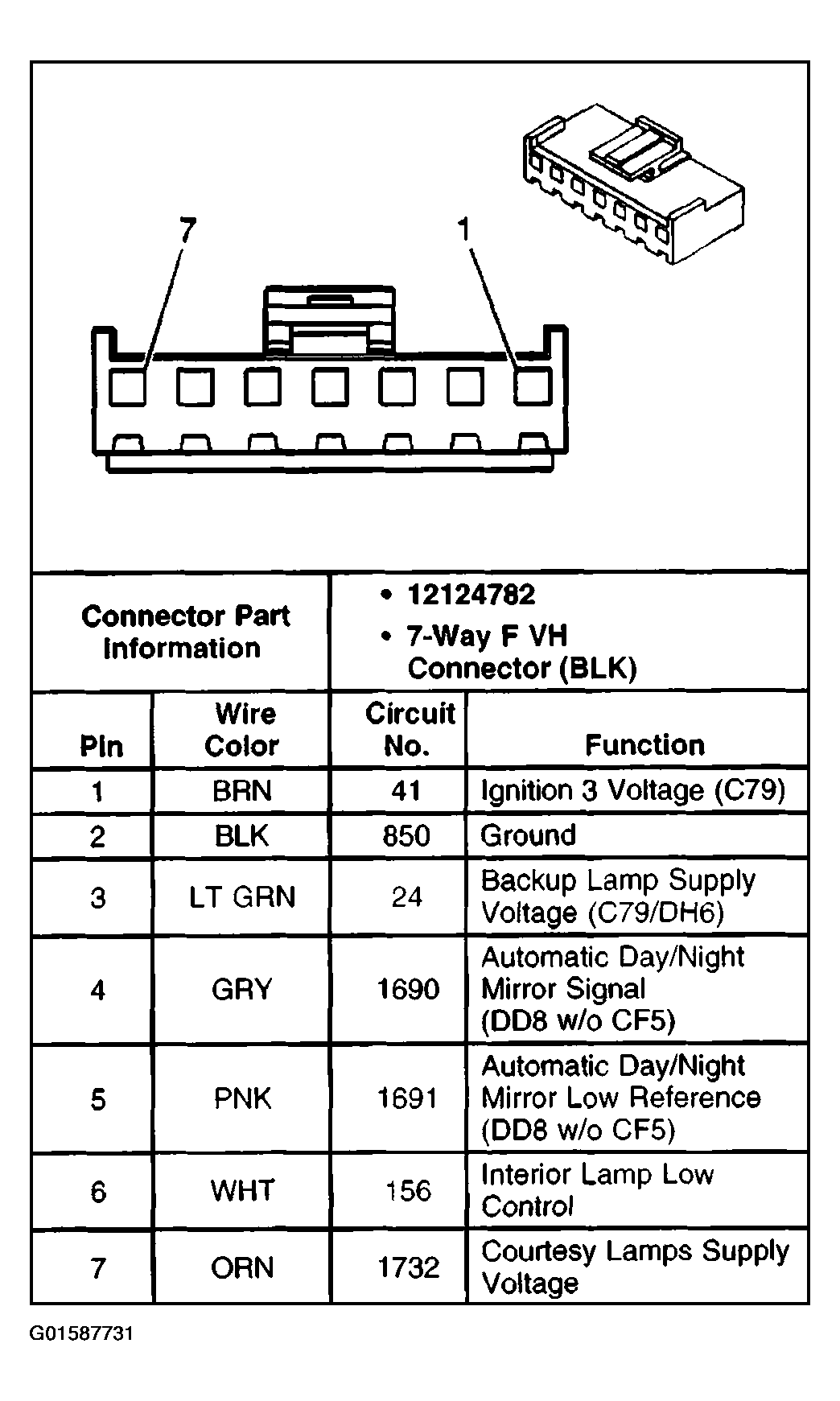

Fig 1: Identifying Inside Rearview Mirror (w/o UE1) Connector End View
G01587731Courtesy of GENERAL MOTORS CORP.

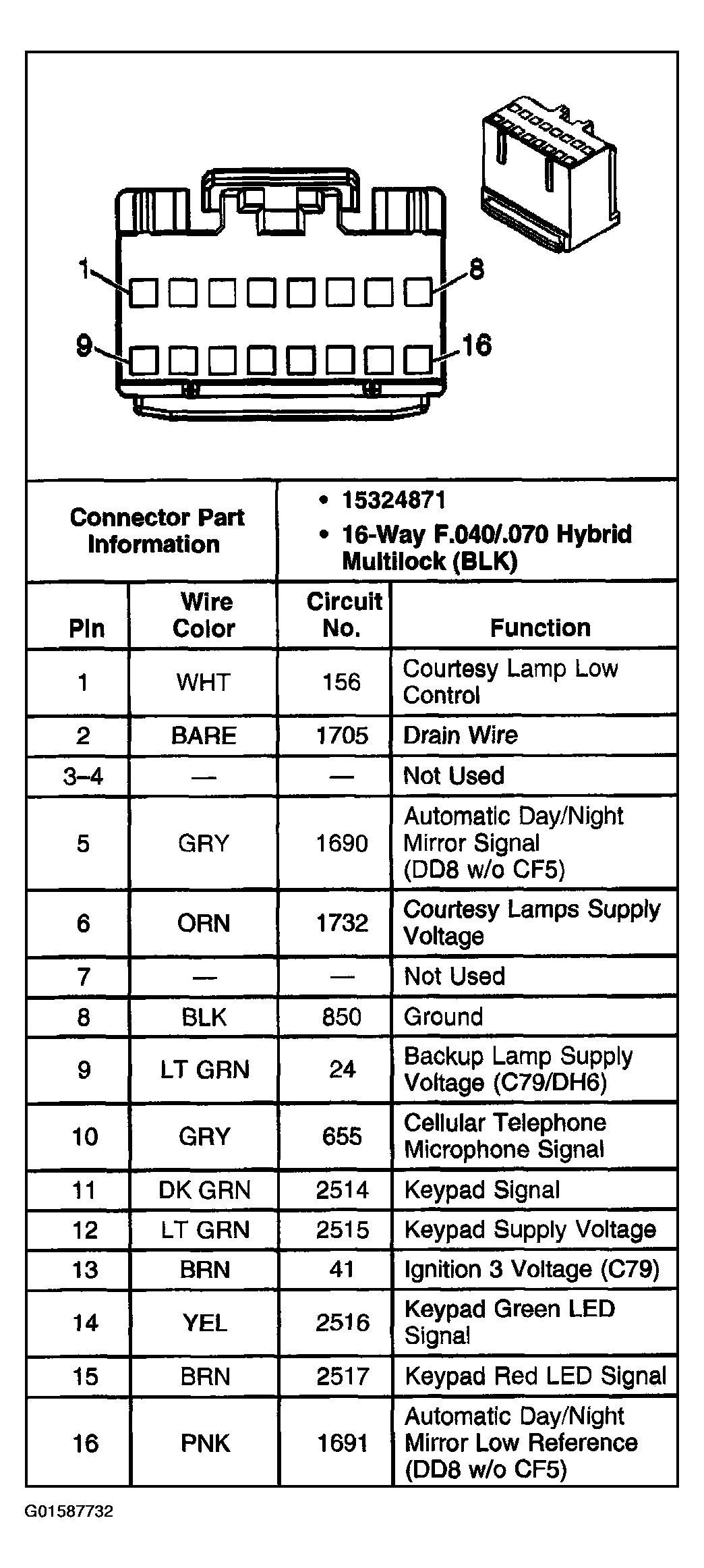

Fig 2: Identifying Inside Rear View Mirror (UE1) Connector End View
G01587732Courtesy of GENERAL MOTORS CORP.

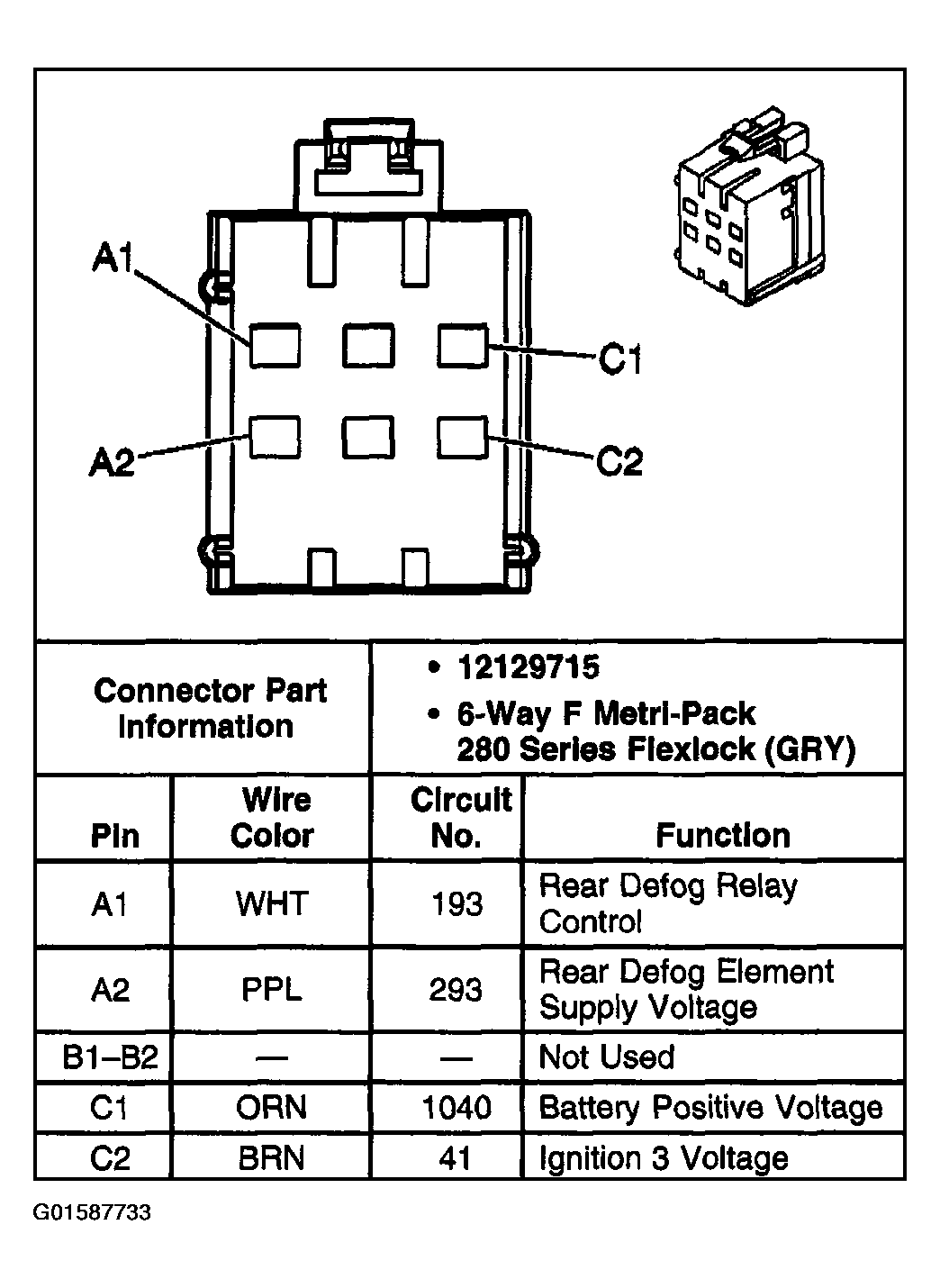

Fig 3: Identifying Rear Window Defogger Relay Connector End View
G01587733Courtesy of GENERAL MOTORS CORP.
