Installation Procedure

  1. Install the rear window into the opening. Refer to URETHANE ADHESIVE INSTALLATION OF STATIONARY WINDOWS  .
  2. Connect the rear window defogger electrical connectors.

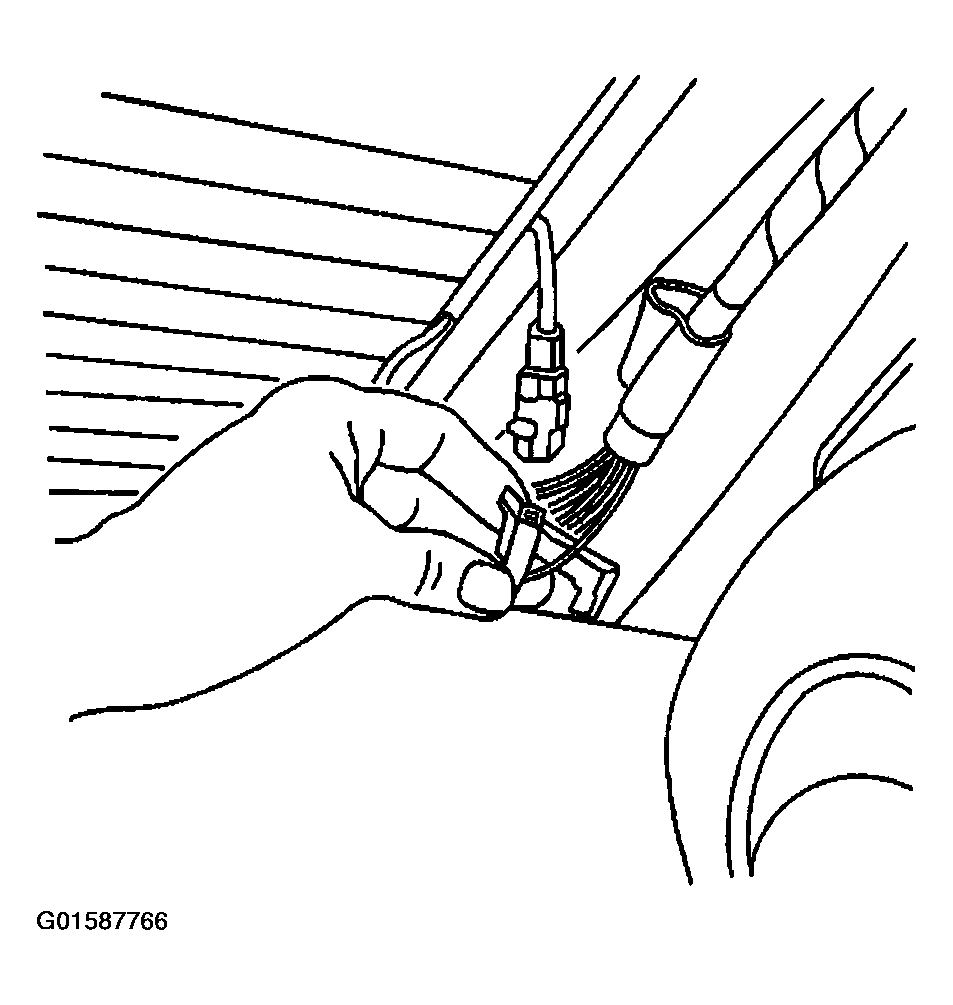

    3. Fig 1: Connecting Rear Window Defogger Electrical Connectors
    G01587766Courtesy of GENERAL MOTORS CORP.
  3. Install the rear window radio antenna connector.
  4. Connect the OnStar(R) antenna, if equipped.

    Check the radio and OnStar(R) system to verify reception.

  5. Close the rear compartment lid.
  6. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

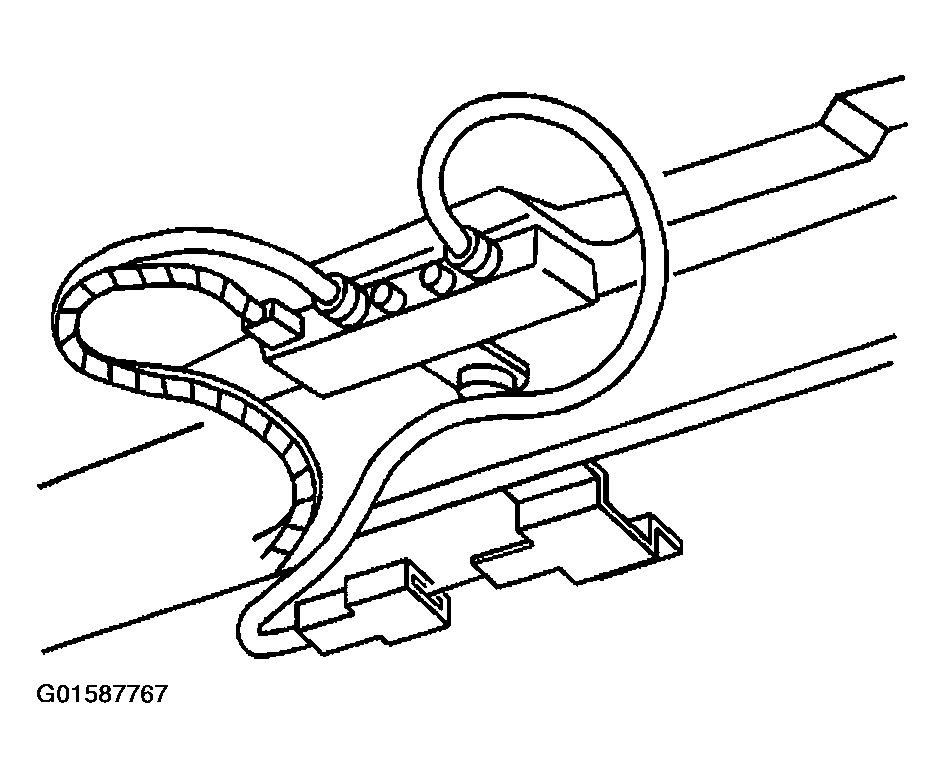

    7. Fig 2: Installing Rear Window Radio Antenna Connector
    G01587767Courtesy of GENERAL MOTORS CORP.
