Component Locations

COMPONENT LOCATIONS

Component Location
Starter Lower Front Of The Engine Compartment
() To locate and identify starter and starter components, see Fig 1 and/or Fig 2 .

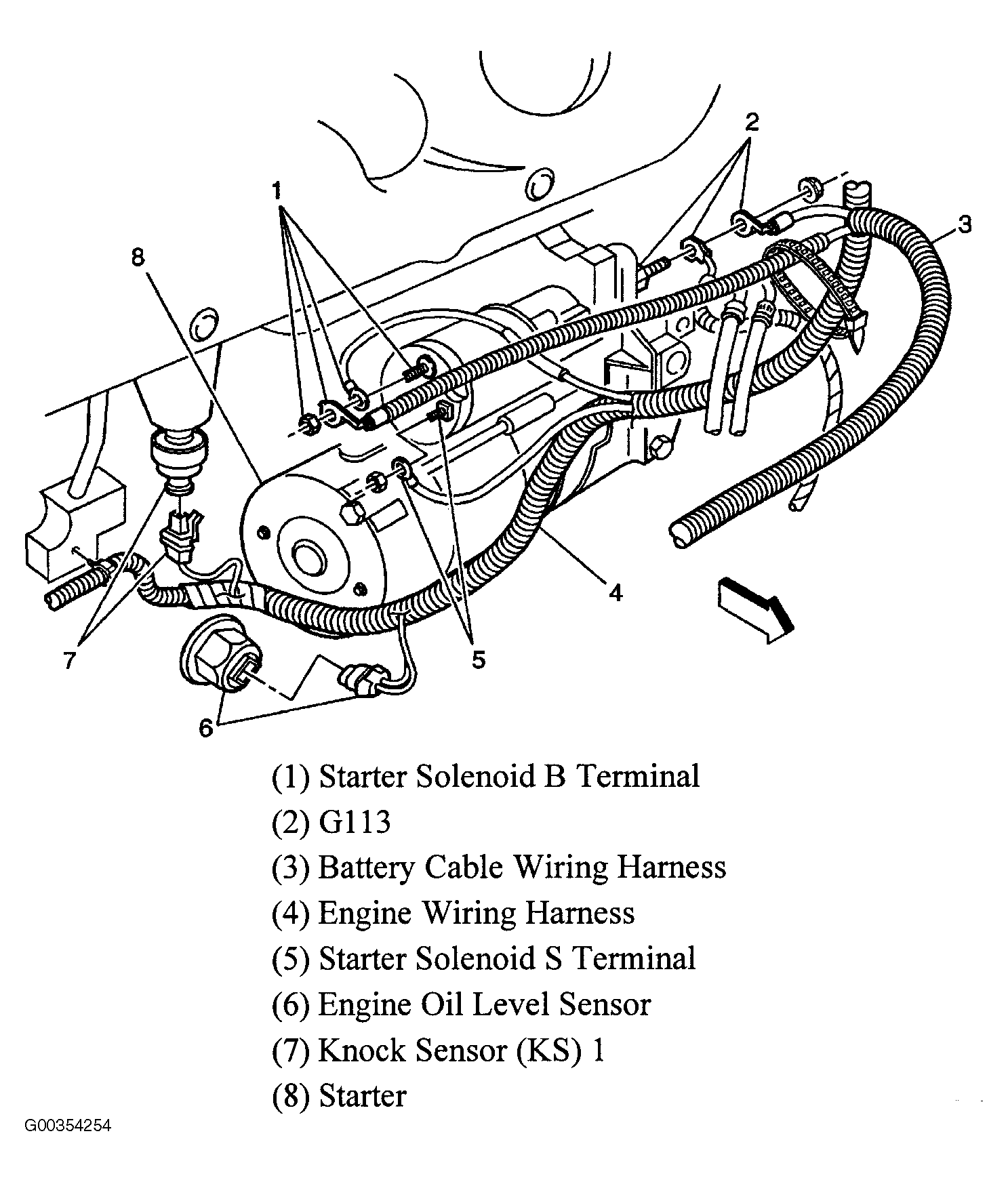

Fig 1: Locating Starter Components (3.1L)
G00354254Courtesy of GENERAL MOTORS CORP.

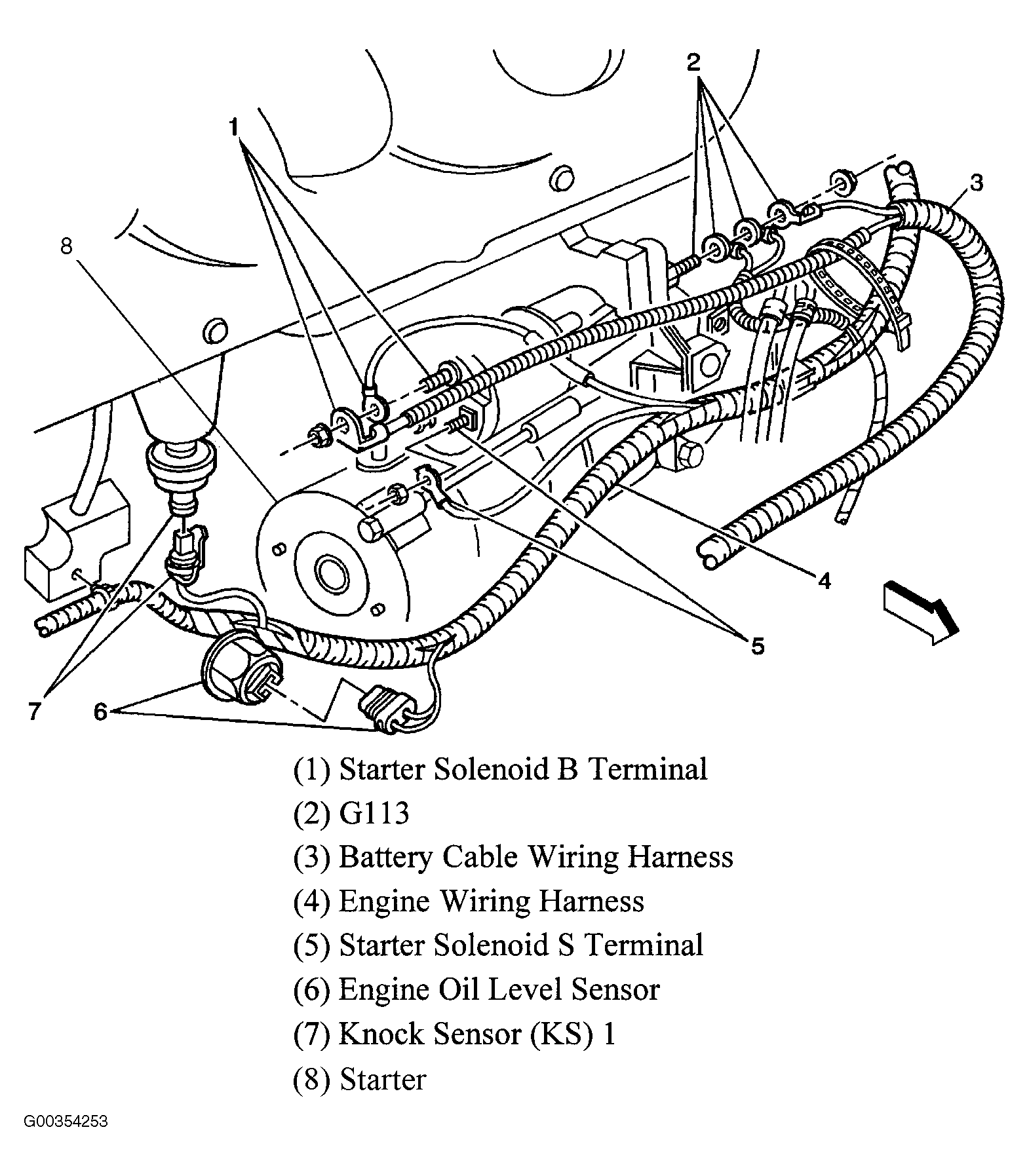

Fig 2: Locating Starter Components (3.8L)
G00354253Courtesy of GENERAL MOTORS CORP.
