Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
    NOTE: Refer to Catalytic Converter Movement Notice in Cautions and Notices.
  2. Support the exhaust system.
  3. Remove the 3-way catalytic converter pipe hangers.

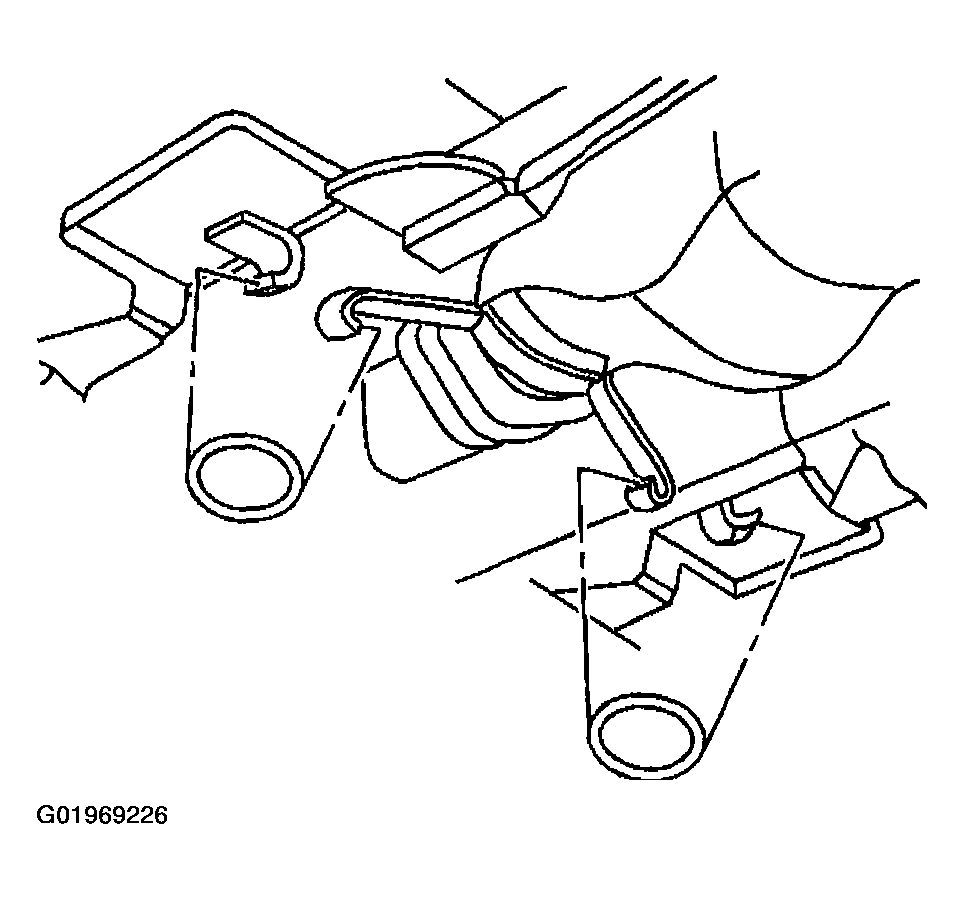

    Fig 1: Removing Catalytic Converter Pipe Hangers
    G01969226Courtesy of GENERAL MOTORS CORP.
  4. Inspect the 3-way catalytic converter brackets for serviceability. Repair or replace as necessary.
