Installation Procedure

Install the exhaust pipe rear hangers to the muffler and the rear exhaust hanger brackets.

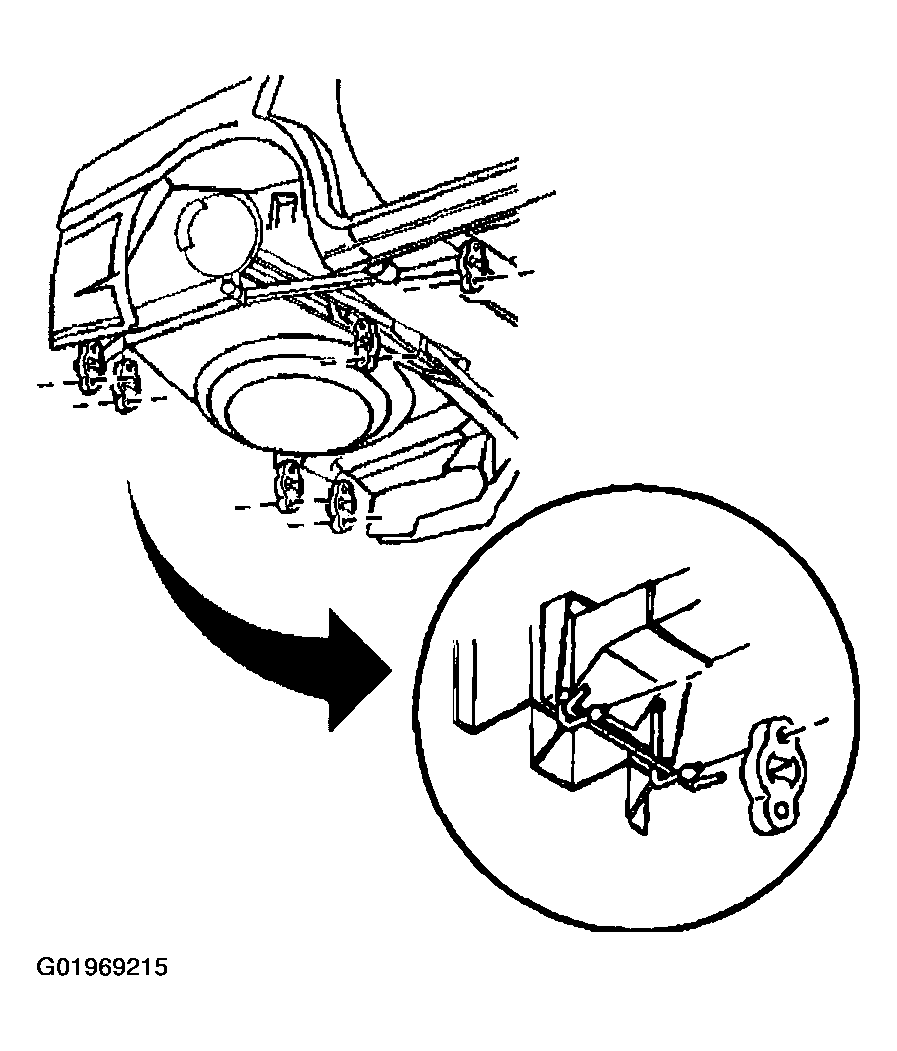

Fig 1: Installing Exhaust Pipe Rear Hangers
Courtesy of GENERAL MOTORS CORP.
Install the exhaust pipe hanger to the exhaust pipe and the exhaust hanger bracket.

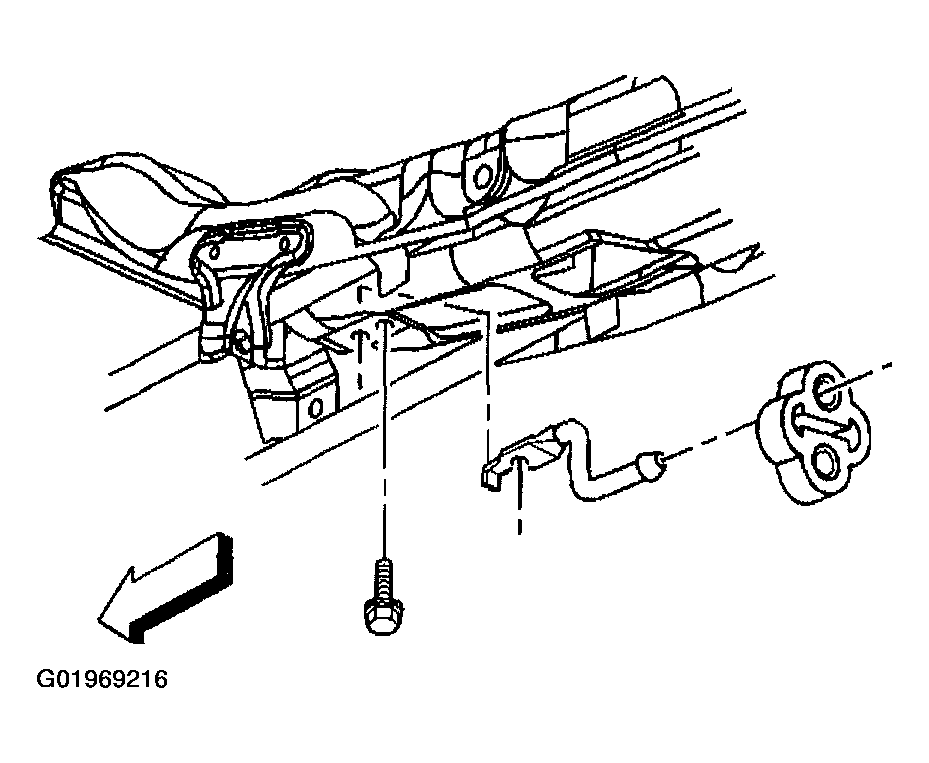

Fig 2: Installing Exhaust Hanger Bracket Mounting Bolt
Courtesy of GENERAL MOTORS CORP.
Install the exhaust pipe hanger (3) to the exhaust pipe (2) and the exhaust hanger bracket (1).

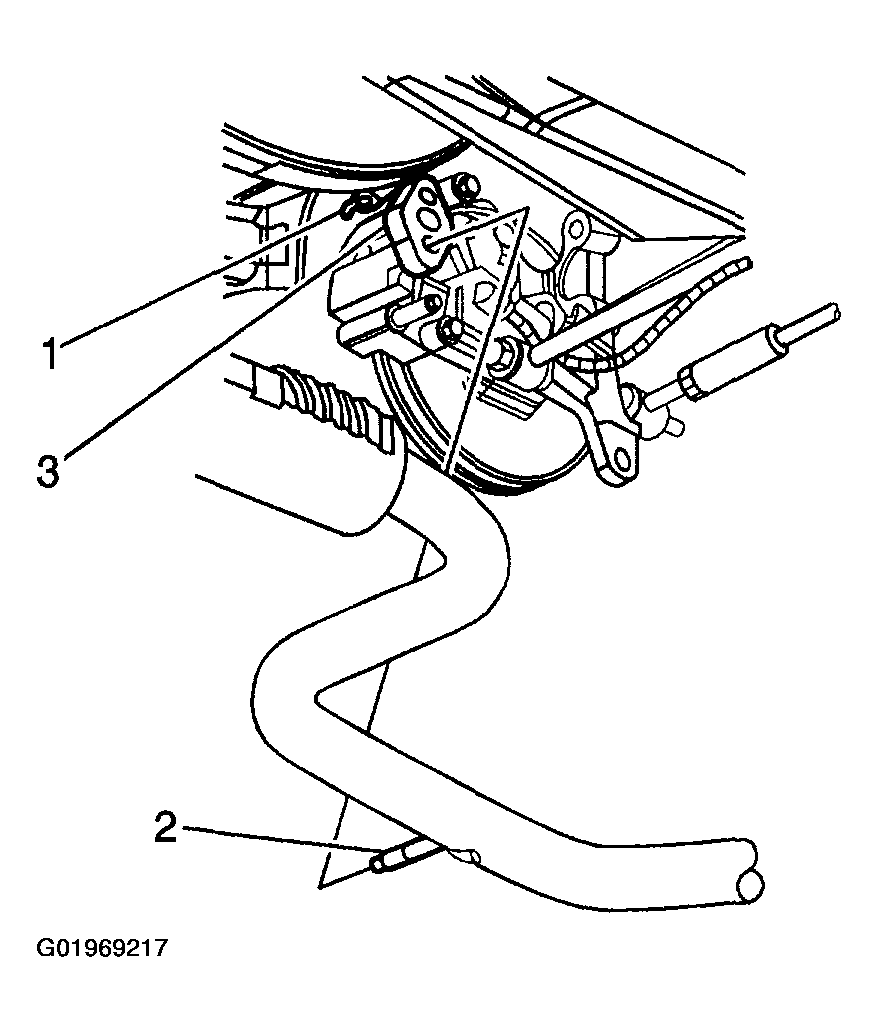

Fig 3: Installing Exhaust Pipe Hanger To Exhaust Pipe
Courtesy of GENERAL MOTORS CORP.
Remove the support from the exhaust system.
Inspect the exhaust system for underbody contact.
Lower the vehicle.
