Installation Procedure

  1. Install the child seat tether brackets to the slots in the rear shelf.
  2. Install the child seat tether bracket to rear shelf bolts.

    Tighten

    Tighten the child seat tether bracket to rear shelf bolts to 20 N.m (151b ft).

  3. Push the sound barrier back into its original position.
  4. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF  in Interior Trim.

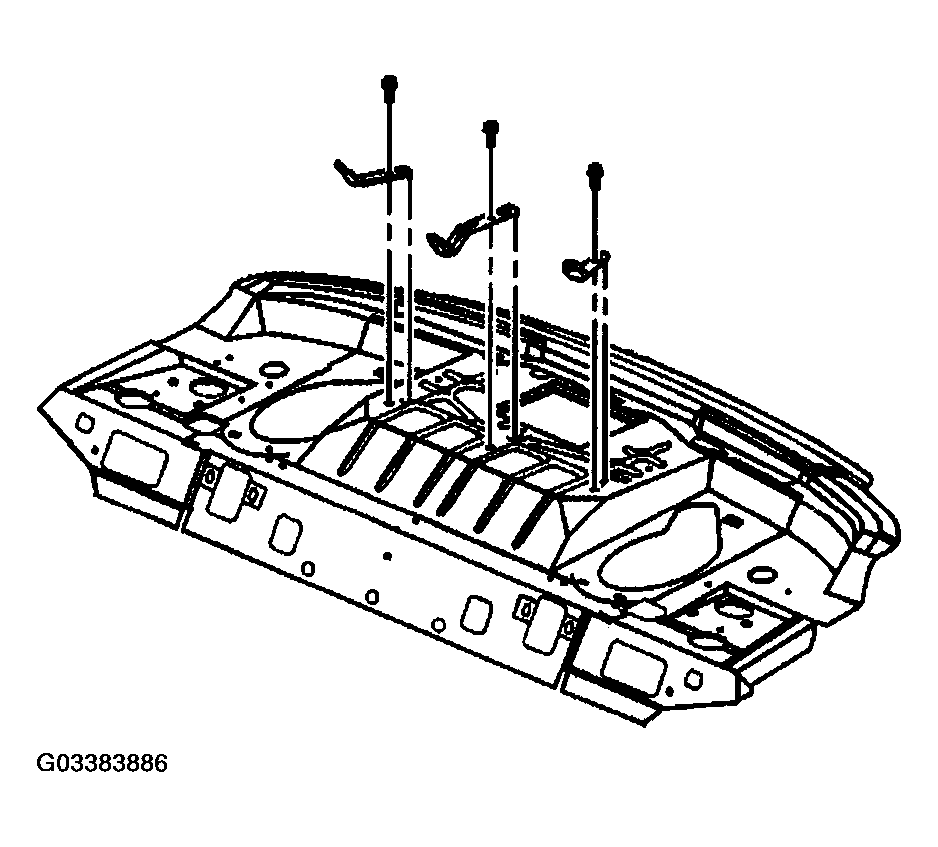

    Fig 1: Installing Child Seat Tether Brackets To Slots In Rear Shelf
    G03383886Courtesy of GENERAL MOTORS CORP.
