Installation Procedure

Install the belt retractor into the T-slot in the center pillar.
Install the seat belt retractor bolt.
Tighten

Tighten the seat belt retractor bolt to 68 N.m (50 lb ft).

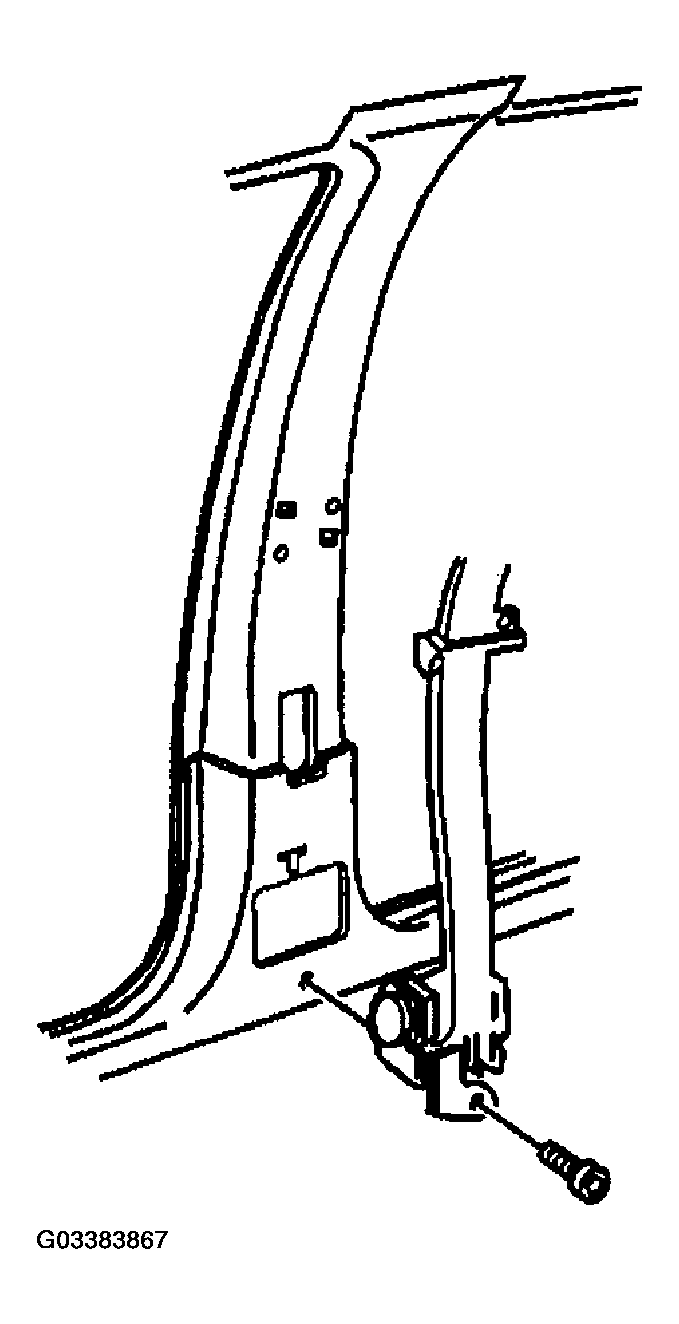

Fig 1: Installing Belt Retractor
Courtesy of GENERAL MOTORS CORP.
Position the anchor plate to the seat stud.
Install the anchor plate nut to the seat stud.
Tighten

Tighten the anchor plate nut to 42 N.m (31 lb ft).

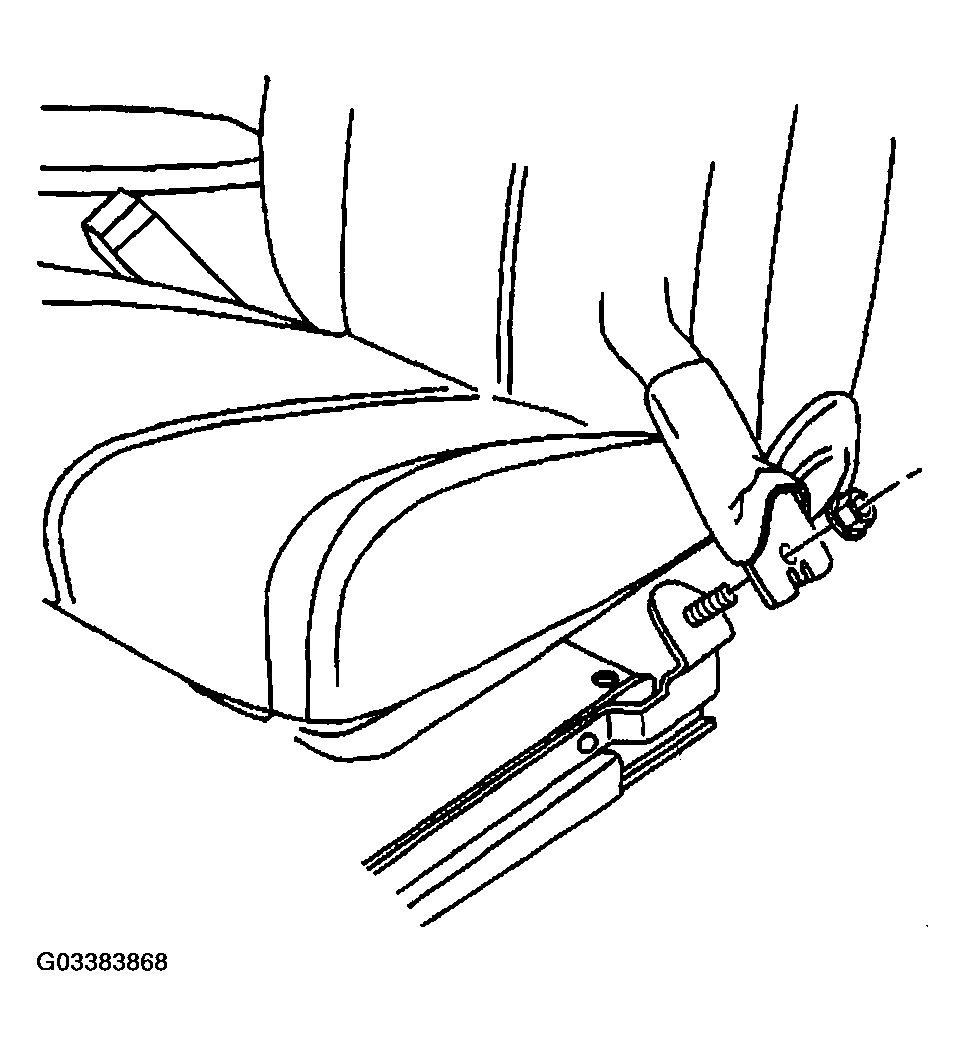

Fig 2: Installing Anchor Plate Nut
Courtesy of GENERAL MOTORS CORP.
Install the intermediate guide bolts.
Tighten

Tighten the intermediate guide bolts to 10 N.m (89 lb in).

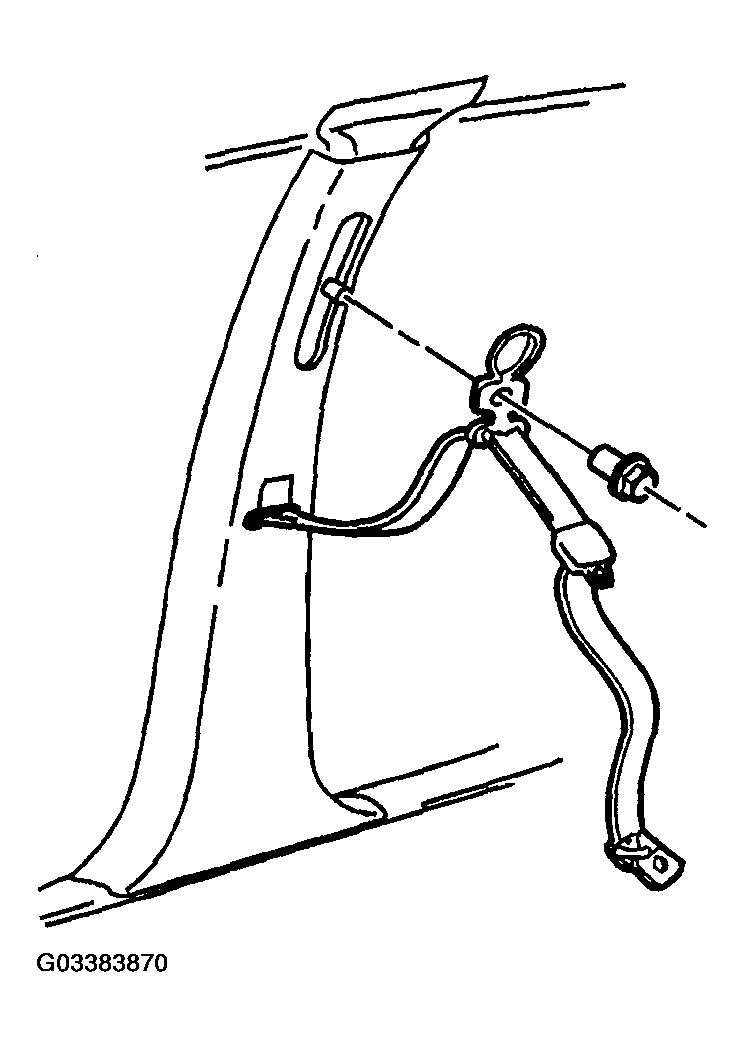

Fig 3: Installing Intermediate Guide Bolts
Courtesy of GENERAL MOTORS CORP.
Install the lower center pillar trim. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR in Interior Trim.
Position the guide loop to the guide adjuster bracket.
Install the guide loop nut.
Tighten

Tighten the guide loop nut to 42 N.m (31 lb ft).
Close the guide loop cover.

Fig 4: Installing Guide Loop Nut
Courtesy of GENERAL MOTORS CORP.
