Installation Procedure

IMPORTANT: Verify that the release lever at the top of the bracket is in the full up position.

Position shoulder belt guide adjuster bracket to the center pillar.
Install the shoulder belt guide belt adjuster bracket bolts.
Tighten

Tighten the shoulder belt guide adjuster bracket bolts to 42 N.m (31 lb ft).
Install the upper center pillar trim panel. Refer to TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR in Interior Trim.
Install the guide loop to the guide adjuster bracket.

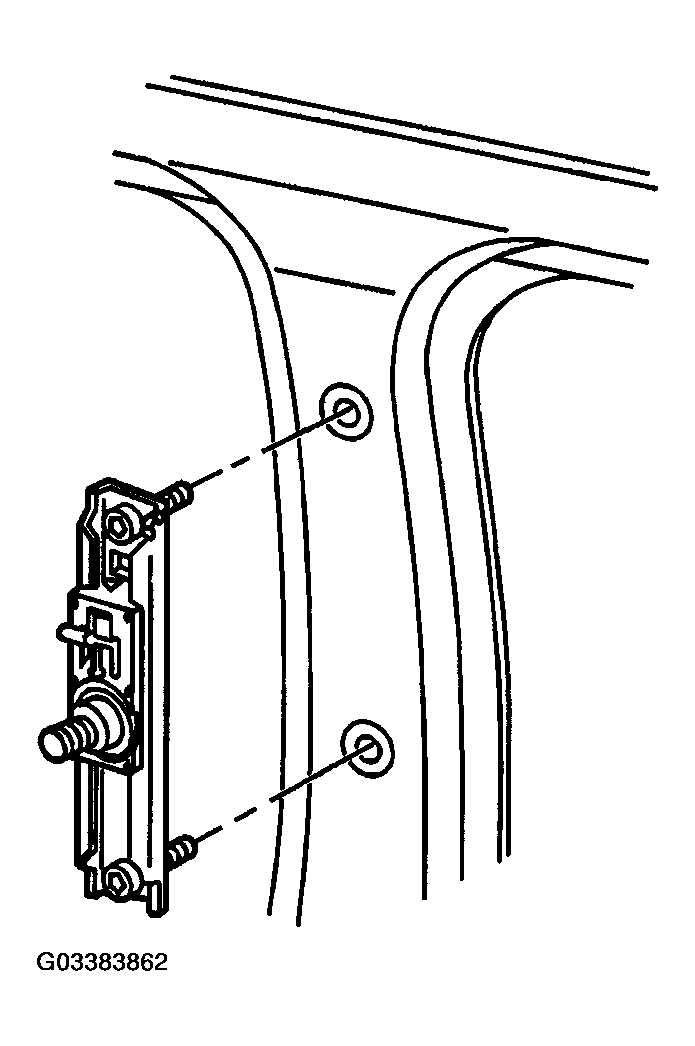

Fig 1: Installing Shoulder Belt Guide Adjuster Bracket Bolts
Courtesy of GENERAL MOTORS CORP.
Install the guide loop nut. Tighten
Tighten the guide loop nut to 42 N.m (31 lb ft).
Close the guide loop cover.
