Power Steering Gear Disassembled View (Magnasteer)

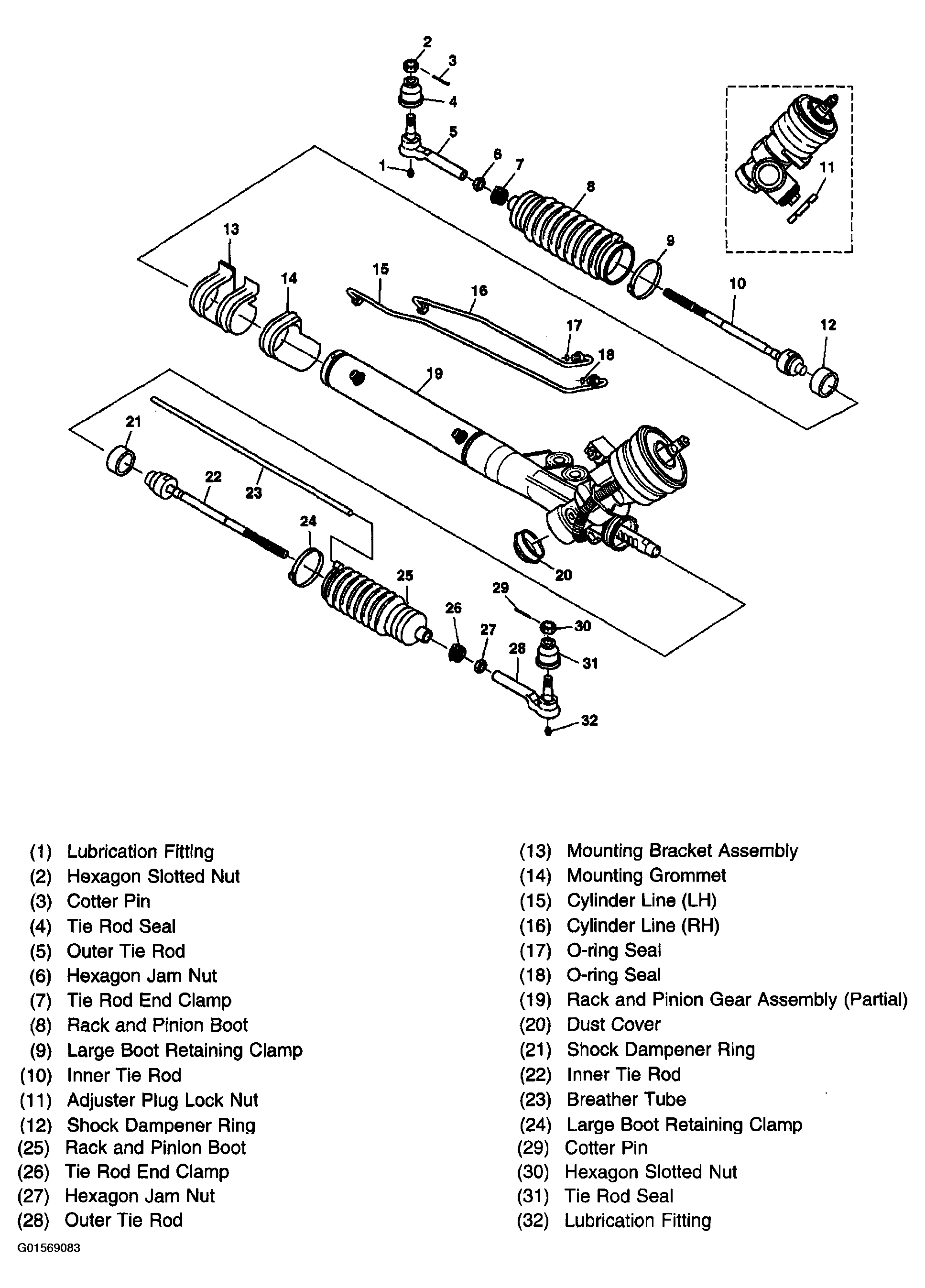

Fig 1: Exploded View Of Magnasteer Power Steering Gear
G01569083Courtesy of GENERAL MOTORS CORP.
