Installation Procedure
- Install the power steering pump reservoir to the power steering pump. Refer to POWER STEERING RESERVOIR REPLACEMENT - OFF VEHICLE (CB SERIES) .
- Install the power steering pump pulley to the power steering pump. Refer to POWER STEERING PULLEY REPLACEMENT (3.8L) or POWER STEERING PULLEY REPLACEMENT (3.1L) .

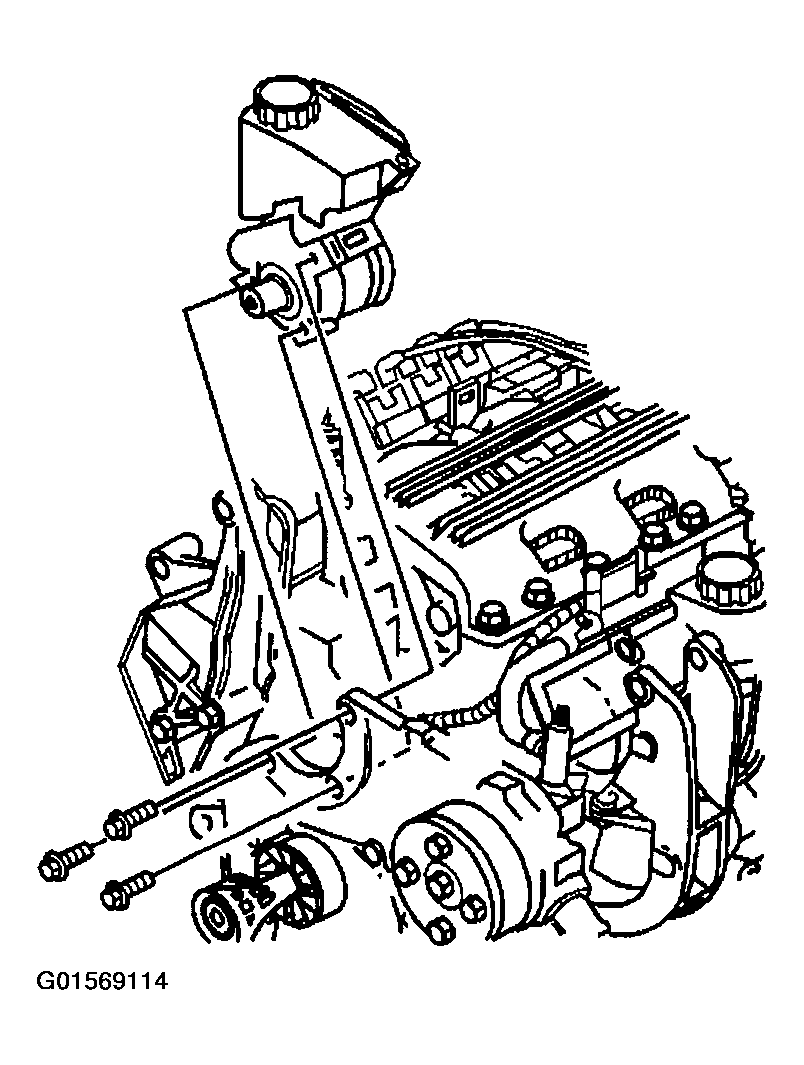

- Position the power steering pump to the engine.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the power steering pump mounting bolts.
Tighten
Tighten the mounting bolts to 34 N.m (25 lb ft).
- Install the power steering pressure hose to the power steering pump. Refer to POWER STEERING PRESSURE HOSE REPLACEMENT (3.1L) or POWER STEERING PRESSURE HOSE REPLACEMENT (3.8L) .
- Install the power steering return hose to the power steering pump. Refer to POWER STEERING RETURN HOSE REPLACEMENT (3.1L) or POWER STEERING RETURN HOSE REPLACEMENT (3.8L) .
- Install the ignition control wiring harness to the power steering pump.
- Install the accessory drive belt to the power steering pump pulley. Refer to DRIVE BELT REPLACEMENT in Engine Mechanical-3.1L.
- Install the coolant recovery reservoir. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT in Engine Cooling.
- Fill the power steering system with power steering fluid. Refer to CHECKING AND ADDING POWER STEERING FLUID .
- Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM .
- Inspect the power steering system for leaks. Refer to POWER STEERING FLUID LEAKS .
- Remove the drain pan from under the vehicle.
